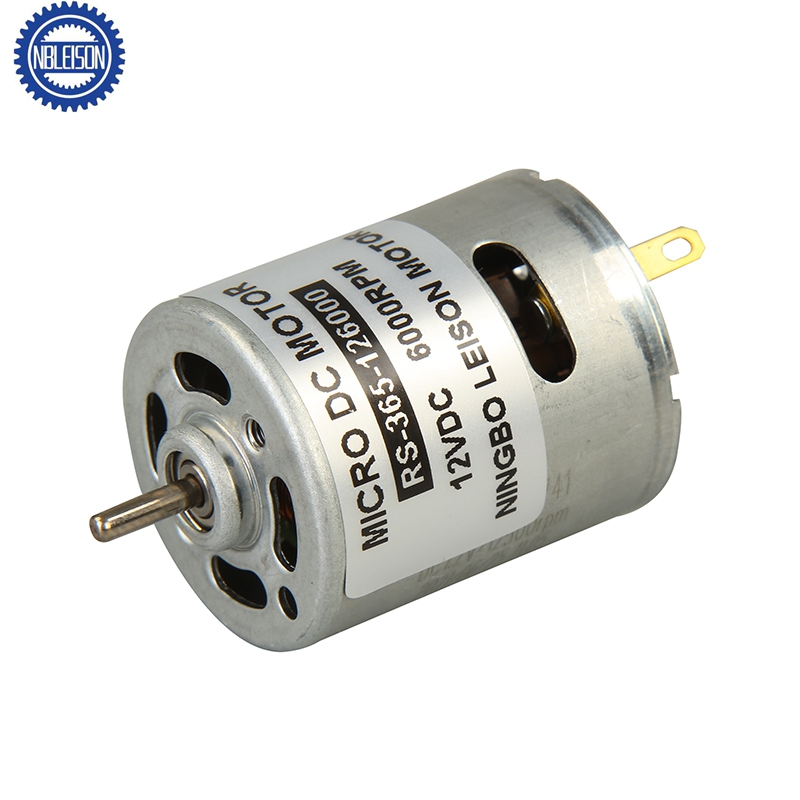

RS-365
Leison Motor
Electrical Specifications
Motor Data
| Model | Voltage | No Load | At Maximum Efficiency | Stall | ||||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current | |||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | |||
| RS-365SH-2650 | DC 6-24V | DC 18V | 19000 | 0.21 | 16000 | 1.13 | 7.7 | 78.67 | 13.42 | 48.7 | 497 | 6 |
| RS-365SH-10250 | DC 18-30V | DC 24V | 8000 | 0.07 | 6150 | 0.22 | 4.01 | 41 | 2.6 | 17.6 | 180 | 0.7 |
| RS-365SH-14134 | DC 15-30V | DC 24V | 13700 | 0.14 | 11200 | 0.06 | 7.4 | 75 | 8.99 | 408 | 40 | 2.6 |
| RS-365SH-12190 | DC 6.8-36V | DC 24V | 10500 | 0.08 | 8400 | 0.33 | 5 | 51 | 4.39 | 25.5 | 260 | 1.3 |
| RS-365RH-2650 | DC 3.0-12V | DC 12V | 25500 | 0.4 | 20930 | 1.83 | 5.36 | 54.6 | 11.7 | 39.9 | 305 | 8.4 |
| RS-365SA-12153 | DC 12-24V | DC 24V | 14500 | 0.13 | 11300 | 0.45 | 4.5 | 46 | 5.3 | 19.6 | 200 | 1.6 |
| *Note:lt's only typical technical data for reference, special requirement can be customized. | ||||||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
Electrical Specifications
Motor Data
| Model | Voltage | No Load | At Maximum Efficiency | Stall | ||||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current | |||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | |||
| RS-365SH-2650 | DC 6-24V | DC 18V | 19000 | 0.21 | 16000 | 1.13 | 7.7 | 78.67 | 13.42 | 48.7 | 497 | 6 |
| RS-365SH-10250 | DC 18-30V | DC 24V | 8000 | 0.07 | 6150 | 0.22 | 4.01 | 41 | 2.6 | 17.6 | 180 | 0.7 |
| RS-365SH-14134 | DC 15-30V | DC 24V | 13700 | 0.14 | 11200 | 0.06 | 7.4 | 75 | 8.99 | 408 | 40 | 2.6 |
| RS-365SH-12190 | DC 6.8-36V | DC 24V | 10500 | 0.08 | 8400 | 0.33 | 5 | 51 | 4.39 | 25.5 | 260 | 1.3 |
| RS-365RH-2650 | DC 3.0-12V | DC 12V | 25500 | 0.4 | 20930 | 1.83 | 5.36 | 54.6 | 11.7 | 39.9 | 305 | 8.4 |
| RS-365SA-12153 | DC 12-24V | DC 24V | 14500 | 0.13 | 11300 | 0.45 | 4.5 | 46 | 5.3 | 19.6 | 200 | 1.6 |
| *Note:lt's only typical technical data for reference, special requirement can be customized. | ||||||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
