LS-N20AGM210 Door Lock Gear Motor
HOME » Products » Brush Dc Gear Motors » Dc Spur Gear Motors » LS-N20AGM210 Door Lock Gear Motor
Share to:

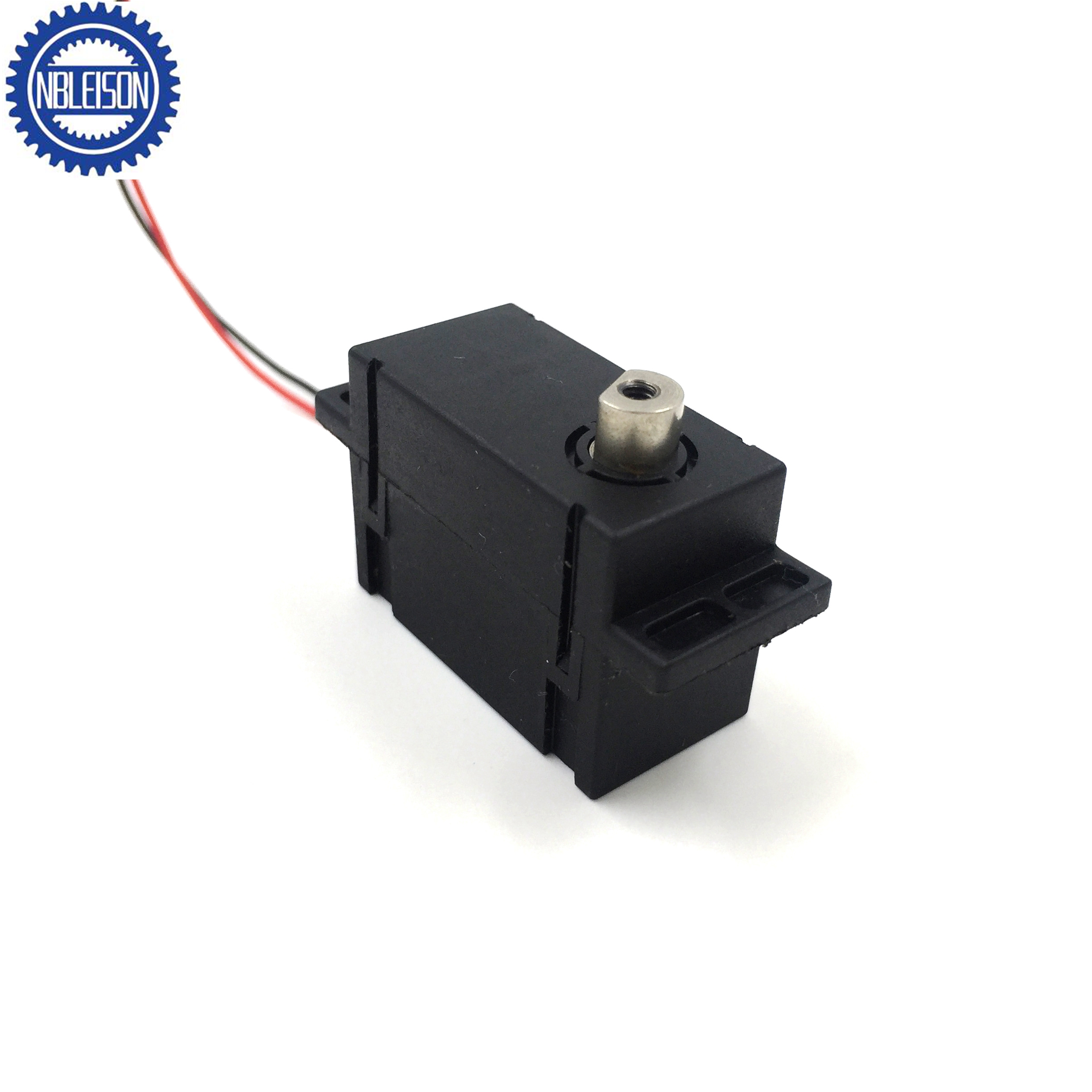

LS-N20AGM210 Door Lock Gear Motor

Features:
1. Motor type: Brushed DC motor
2. Gearbox: Spur gearbox
3. Voltage: 1.5V-12VDC
4. Speed: 10RPM-150RPM
5. Torque: 0.02kg.cm-2kg.cm
6. Shaft dia: 6mm
7. Direction: CW/ CCW
8. Case: Copperplate gear case
9. Bushings: Sleeve bronze bushings
10. Typical application: Electric door lock, Smart door lock, Monitor, Medical devices
11. Customized service: Motor's performance parameter, Shaft type, Wires and connectors, Encoders

Quantity:
  • LS-N20AGM210
  • Leison Motor
  • 850110

Electrical Specifications


LS-N20AGM210.pdf


Motor with Gearbox

Model Voltage (v) No Load At Maximum Efficiency Stall
Speed Current Speed Current Torque Output Torque Current
(r/min) (mA) (r/min) (mA) (mN-m) (gem) (w) (mN-m) (g-cm) (mA)
N20AGM210-09160 6 100 70 90 130 19.6 200 0.18


N20AGM210-08230 6 70 55 63 100 19.6 200 0.12 68.6 0.7 600
N20AGM210-07280 6 56 60 48 100 19.6 200 0.09

250
N20AGM210-06350 6 45 35 40 55 9.8 100 0.04 39.2 0.4
N20AGM210-11115 6 135 100 108 320 49 500 0.55


N20AGM210-12115 6 140 100 115 320 49 500 0.59


N20AGM210-13100 6 155 130 130 400 49 500 0.66 196 2.0
N20AGM210-13100 6 80 80 70 180 19.6 200 0.14 98 1.0 1200
* Note: It’s only typical technical data, special requirement can be customized.


Dimensions

N20AGM210

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
