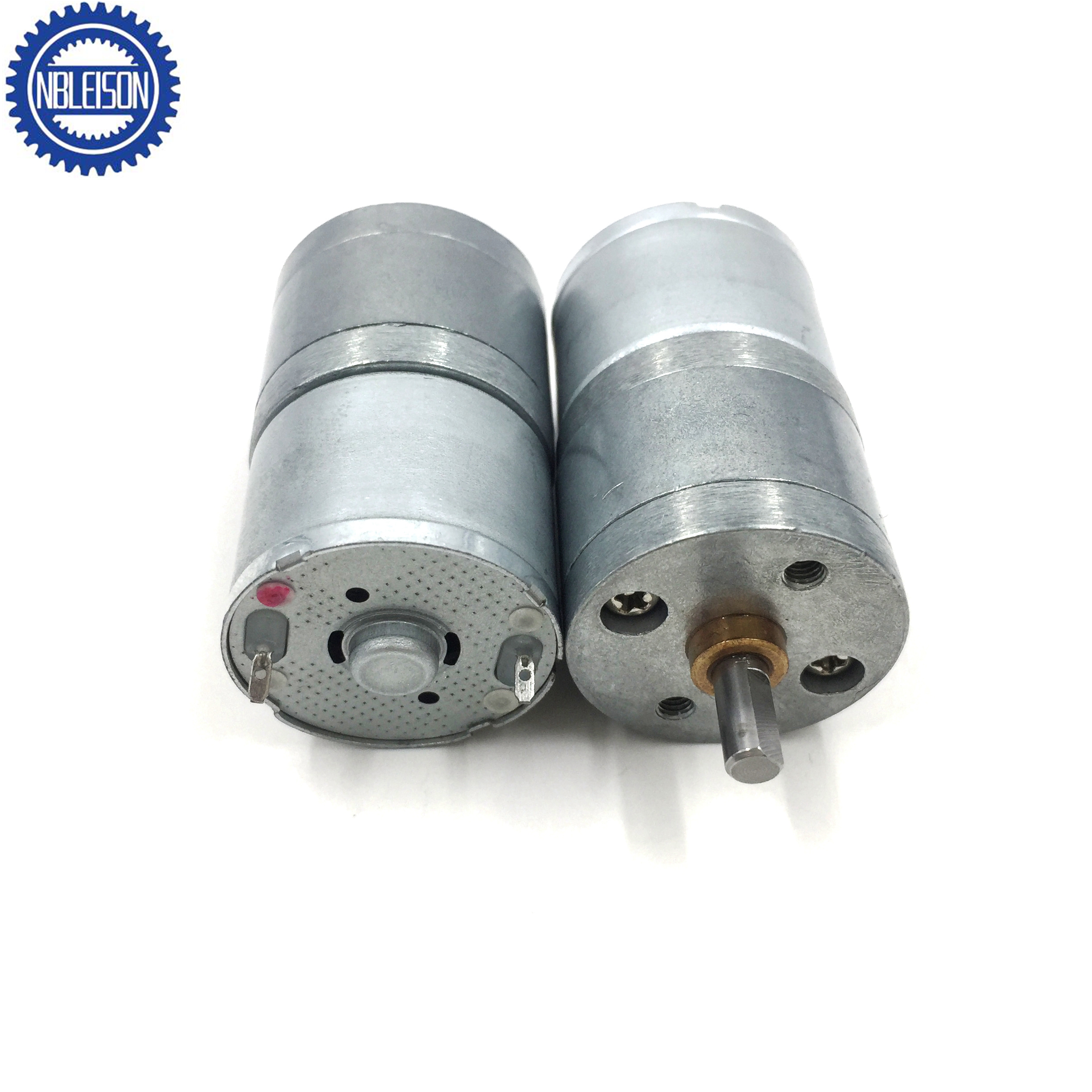

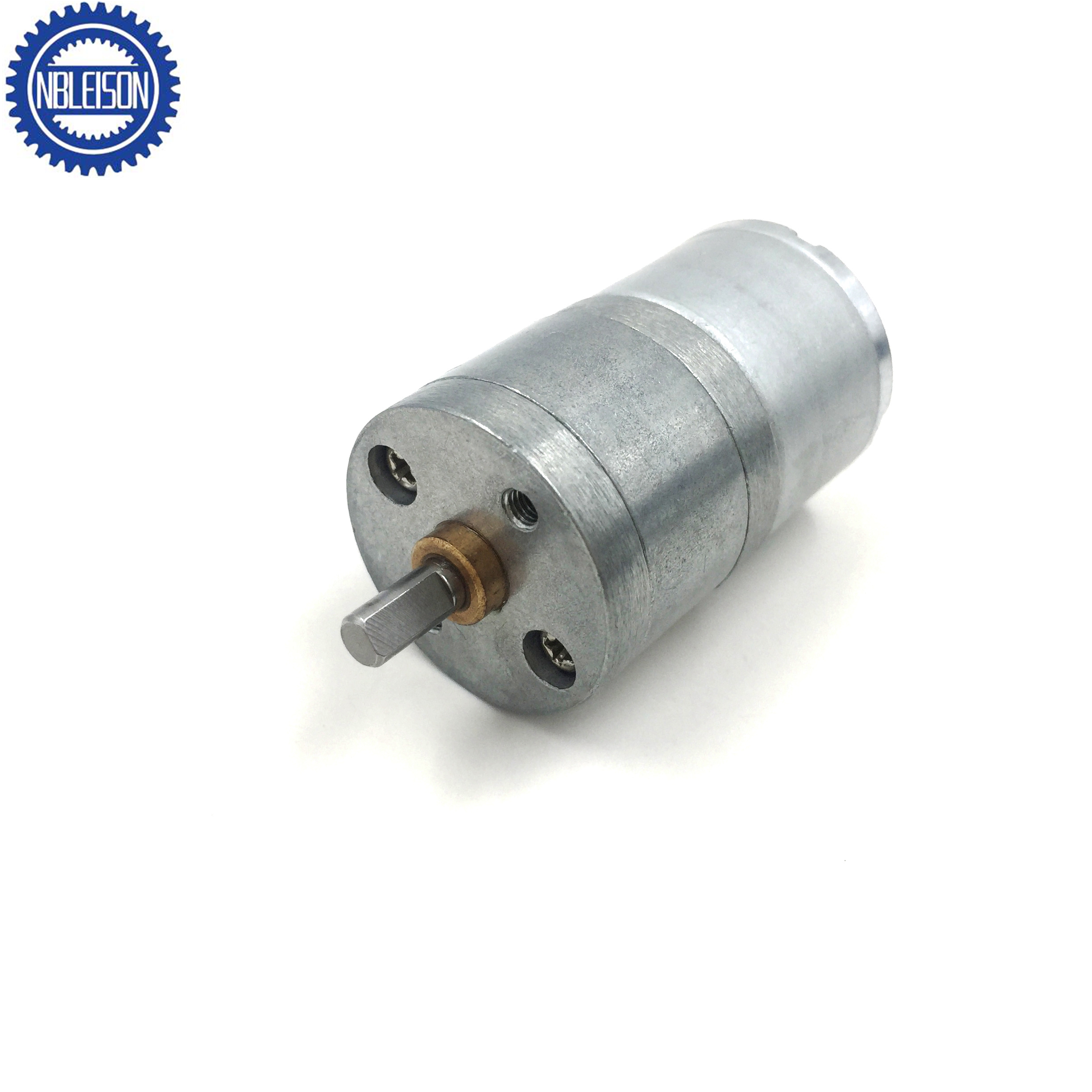

LS-25GA310
Leison Motor
Electrical Specifications
LS-25GA310.pdf
Motor with Gearbox Data
| Model | Voltage | No Load | At Maximum Efficiency | Starting | |||||||
| Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current | |||
| r/min | mA | r/min | mA | mN.m | g.cm | W | mN.m | g.cm | mA | ||
| LS-25GA310-360 | 12 | 16 | 50 | 12 | 170 | 61 | 630 | 0.08 | 274.4 | 2800 | 600 |
| LS-25GA310-217 | 6 | 30 | 40 | 24 | 100 | 117.6 | 1200 | 0.3 | 588 | 6000 | 480 |
| LS-25GA310-362 | 4.5 | 9 | 20 | 7 | 120 | 88.2 | 900 | 0.06 | 392 | 4000 | 200 |
| * Note: It’s only typical technical data, special requirement can be customized. | |||||||||||
Gearbox Data
| Number Of Stages | 3 | 4 | 5 | 6 | 7 | 8 |
| Gear Ratio I | 9.7 | 16.1 | 26.9 | 59.2 | 130.1 | 286.3 |
| 12.5 | 21.3 | 35.5 | 78.1 | 171.8 | 377.9 | |
| 46.9 | 103.1 | 226.8 | 498.9 | |||
| Length Of Gearbox L (mm) | 19 | 19 | 21 | 23 | 25 | 27 |
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
