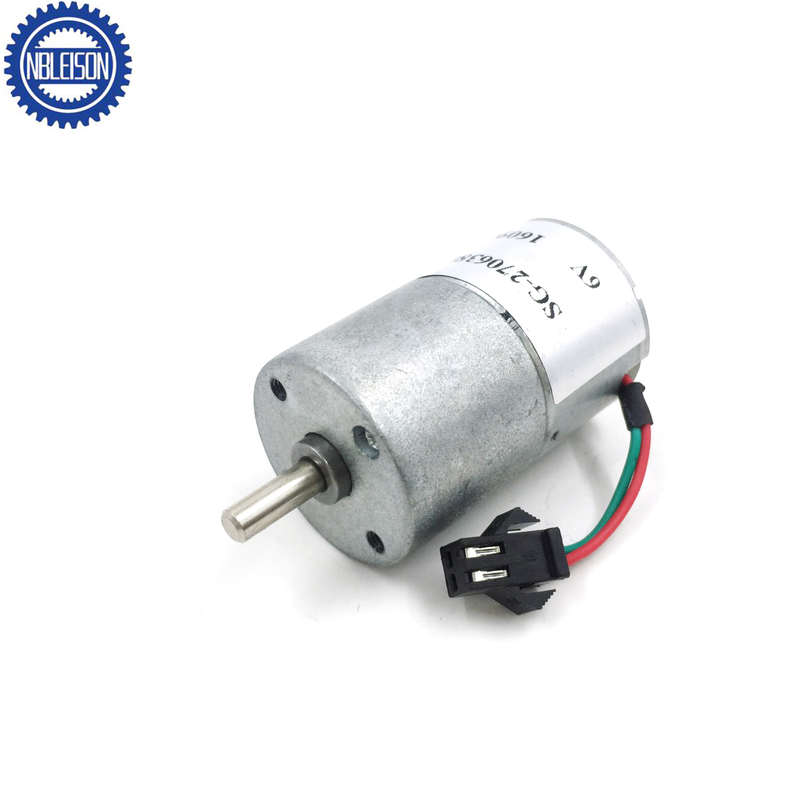

SG27
Leison Motor
Electrical Specifications
LS-SG27.pdf
Motor Data
| Motor Model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| V | mA | r/min | mA | r/min | gf • cm | W | gf • cm | mA | |
| SG-27063800 | 6 | ≤30 | 3800 | ≤150 | 2850 | 16 | 0.46 | 64 | 500 |
| SG-27065000 | 6 | ≤40 | 5000 | ≤250 | 3750 | 21 | 0.78 | 80 | 900 |
| SG-27123800 | 12 | ≤15 | 3800 | ≤80 | 2850 | 16 | 0.46 | 64 | 250 |
| SG-27125000 | 12 | ≤20 | 5000 | ≤130 | 3800 | 21 | 0.78 | 80 | 450 |
| SG-27127600 | 12 | ≤40 | 7600 | ≤300 | 5700 | 31 | 1.8 | 120 | 1100 |
| SG-27246000 | 24 | ≤25 | 6000 | ≤100 | 4500 | 24 | 1.1 | 95 | 320 |
| * Note: It’s only typical technical data, special requirement can be customized. | |||||||||
Gearbox Data
| Numberof stages | 4 stages reduction | 5 stages reduction | 6 stages reduction | 7 stages reduction |
| Reduction ratio | 30、39 | 74 97 | 187、244 | 468、610 |
| Gearbox length “L” mm | 17.1 | 19.6 | 22.1 | 24.6 |
| Max. Running torque | 0.5Kgf • cm | 1Kgf • cm | 2Kgf • cm | 3Kgf • cm |
| Max. Gear breaking torque | 1.5Kgf • cm | 3Kgf • cm | 6Kgf • cm | 9Kgf • cm |
| Max.Gearing efficiency | 65% | 59% | 53% | 48% |
| Other reduction ratio please telephone or e-mail to our engineering department. | ||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
