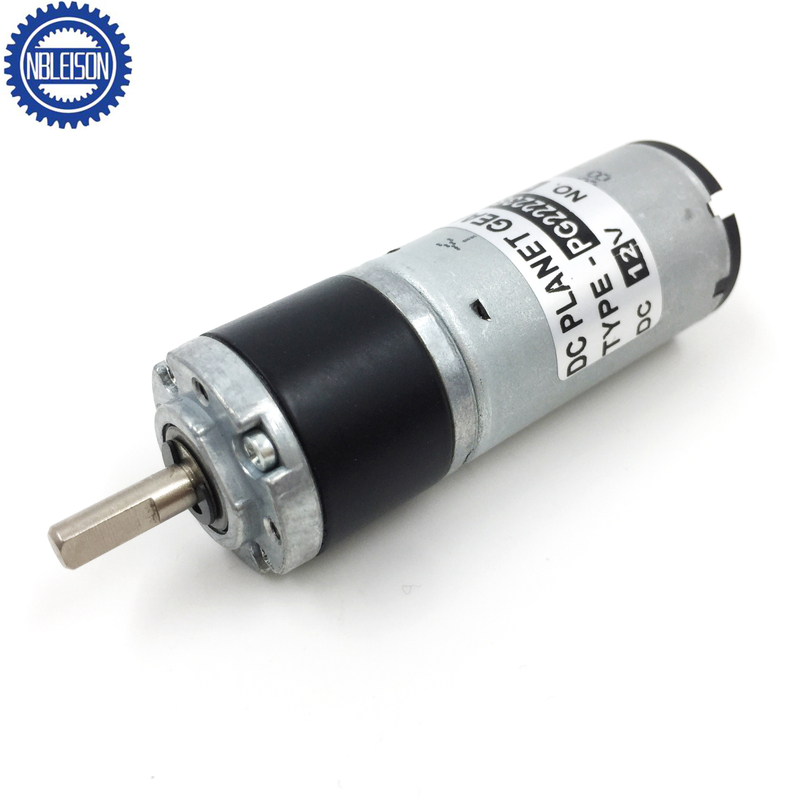

PG222238
Leison Motor
Electrical Specifications
Gearbox Data
| Number of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.5, 4 | 12.3, 16, 19 | 42.8, 64, 90 | 150, 256, 304, 361, 428 | 712, 1024, 1263 1444, 1500, 2036 |
| Gearbox length L * mm | 13.9 | 17.5 | 21.1 | 24.7 | 28.3 |
| Running torque | 1.0Kgf-cm | 2.0Kgf-cm | 4.0Kgf-cm | 4.0Kgf-cm | 4Kgf-cm |
| Max. Gear breaking torque | 3.0Kgf-cm | 6.0Kgf-cm | 12Kgf-cm | 12Kgf-cm | 12Kgf-cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
How to calculate the motor with gearbox output specs?
1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio
2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency
e.g.:
PG222238126000-19K
1. Output Speed(No-load)=6000/19=315RPM
2. Output Torque=48*19*81%=
738.7g.cm≈0.7kg.cm=0.07Nm (Should not be higher than Max. Gear Running Torque)
Motor Data
| Motor name | Rated Volt V | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf • cm | W | gf • cm | mA | ||
| 2238126000 | 12 | ≤130 | 6000 | ≤370 | 5350 | 48 | 2.6 | 310 | 1950 |
| 2238246000 | 24 | ≤62 | 6000 | ≤186 | 5388 | 49 | 2.7 | 317 | 950 |
| *Note:It's only typical technical data,special requirement can be customzied. | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
Electrical Specifications
Gearbox Data
| Number of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.5, 4 | 12.3, 16, 19 | 42.8, 64, 90 | 150, 256, 304, 361, 428 | 712, 1024, 1263 1444, 1500, 2036 |
| Gearbox length L * mm | 13.9 | 17.5 | 21.1 | 24.7 | 28.3 |
| Running torque | 1.0Kgf-cm | 2.0Kgf-cm | 4.0Kgf-cm | 4.0Kgf-cm | 4Kgf-cm |
| Max. Gear breaking torque | 3.0Kgf-cm | 6.0Kgf-cm | 12Kgf-cm | 12Kgf-cm | 12Kgf-cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
How to calculate the motor with gearbox output specs?
1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio
2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency
e.g.:
PG222238126000-19K
1. Output Speed(No-load)=6000/19=315RPM
2. Output Torque=48*19*81%=738.7g.cm≈0.7kg.cm=0.07Nm (Should not be higher than Max. Gear Running Torque)
Motor Data
| Motor name | Rated Volt V | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf • cm | W | gf • cm | mA | ||
| 2238126000 | 12 | ≤130 | 6000 | ≤370 | 5350 | 48 | 2.6 | 310 | 1950 |
| 2238246000 | 24 | ≤62 | 6000 | ≤186 | 5388 | 49 | 2.7 | 317 | 950 |
| *Note:It's only typical technical data,special requirement can be customzied. | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
