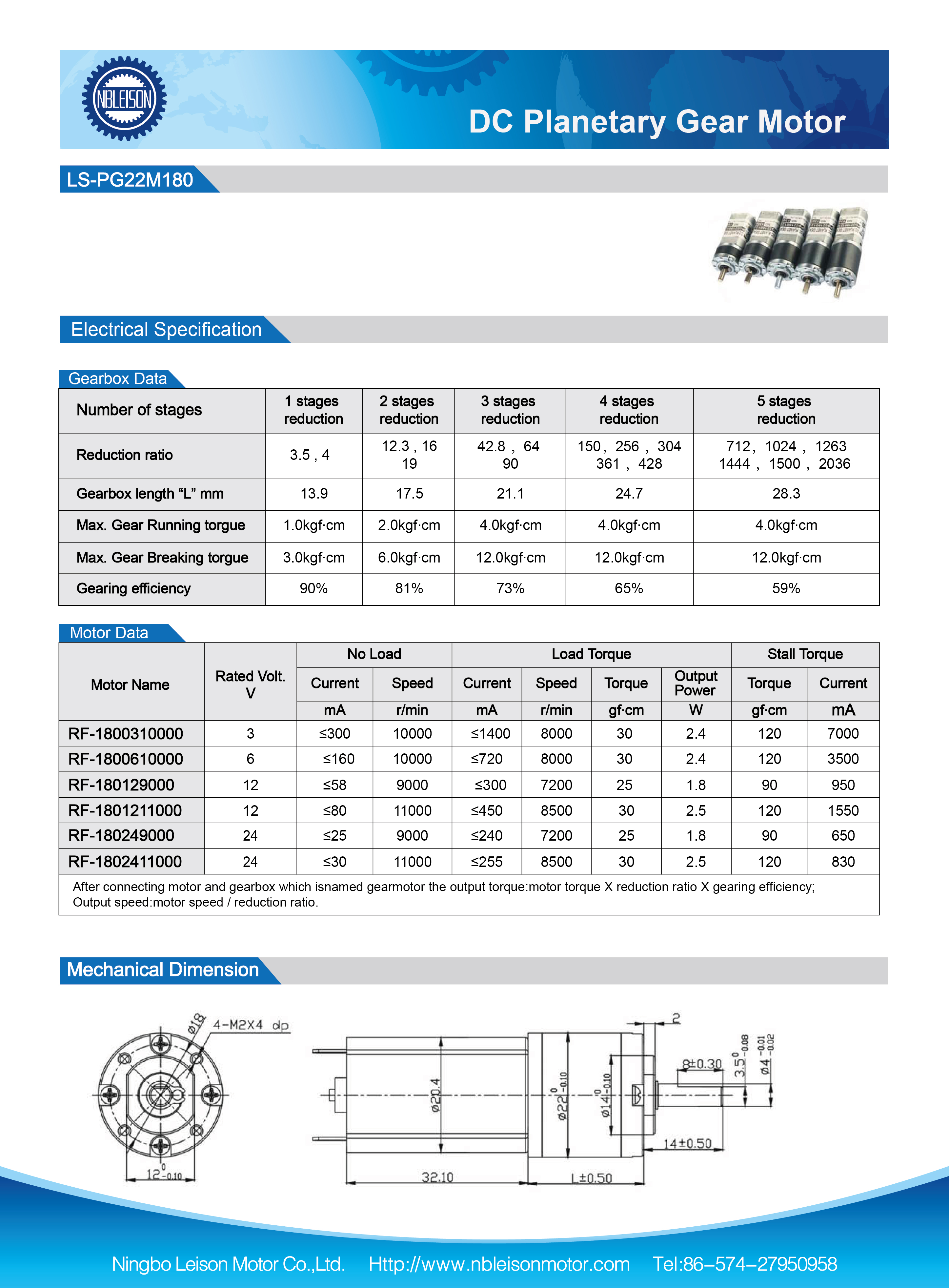

PG22M180 Dc Planetary Gear Motor
PG22M180 Dc Planetary Gear Motor
Features:
1. Motor type: brushed DC motor
2 .Gearbox: planetary gearbox
3. Voltage: 6V,12VDC, 24VDC
4. Speed: 3-2000rpm
5. Torque: 0.5-1kgf.cm
5 Shaft dia: 6mm
6. Direction: CW/ CCW
7. Gear material: steel/powdered/POM
8. Housing material: steel
9. Typical application: robotics,window opener, automatic door lock, optical equipment
10. Customized service: parameter, shaft type, wires and connectors, encoders
