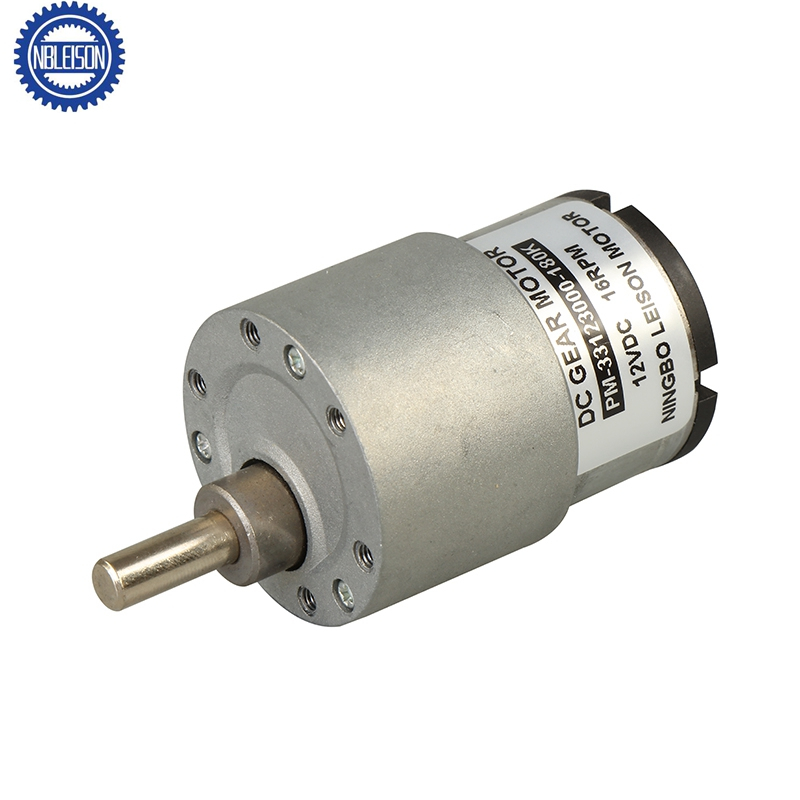

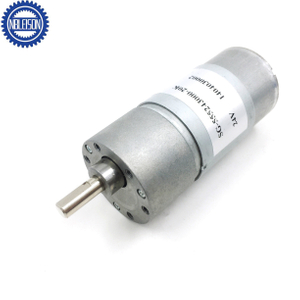

LS-PM33 37MM Dc Gear Motor

Features:
1. Motor type: Brushed DC motor
2. Gearbox :37mm spur gearbox
3. Voltage: 3V, 4.5V, 5V, 6V, 7.2V, 9V, 12V, 18V, 24V DC
4. Speed: 1RPM-2500RPM
5. Torque: 0.2kg.cm-15kg.cm
6. Shaft dia: 6mm
7. Direction: CW/CCW
8. Typical application: Electric lock system, Valve, Vending machine, Safe box dc motor, robotics,power tools,sliding gate
9. Customized service: Motor's performance parameter,Shaft type, Wires and connectors, Encoders.

Availability:

Quantity:



Inquire Add to Basket

Model:
PM33
Brand:
Leison Motor

Product Description

Electrical Specifications

LS-PM33.pdf

Motor Data

Motor Model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf • cm	W	gf • cm	mA
PM-33123000	12	≤20	3000	≤110	2200	25	0.55	100	400
PM-33124500	12	≤30	4500	≤150	3300	35	1.2	140	850
PM-33126000	12	≤40	6000	≤400	4500	45	2.3	180	1400
PM-33243000	24	≤15	3000	≤60	2200	25	0.55	100	200
PM-33244500	24	≤20	4500	≤80	3300	35	1.2	140	420
PM-33246000	24	≤30	6000	≤200	4500	45	2.3	180	700
* Note: It’s only typical technical data, special requirement can be customized.

How to calculate the motor with gearbox output specs?

1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio

2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency

e.g.:

PM-33126000-30K
1. Output Speed(No-load)= 6000/ 30=200RPM

2. Output Torque= 45* 30* 73%=985.5gf.cm≈1kgf.cm=0.098N.m

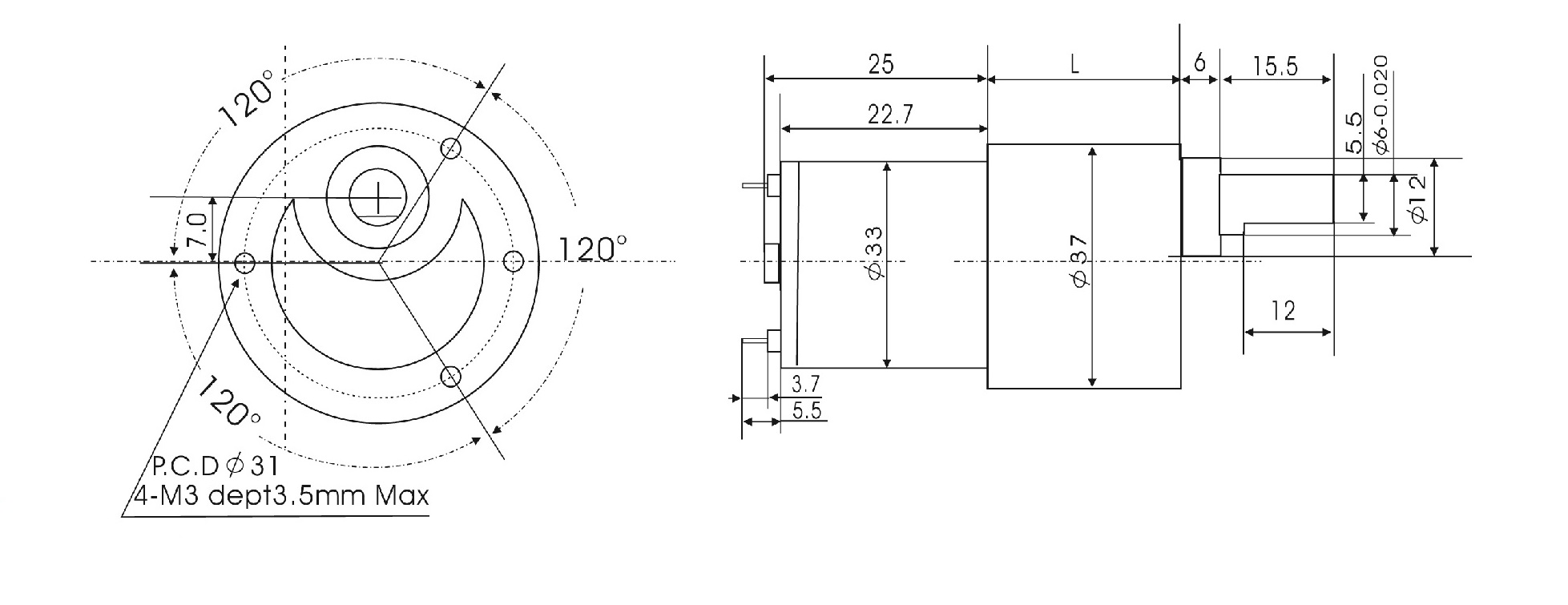

Gearbox Data

Numberof stages	2/3 stages reduction	4/5 stages reduction	6/7 stages reduction
Reduction ratio	6、10 ; 20. 30	60、90；120、180、270	489、540、810； 1620、2430
Gearbox length “L” mm	22.5	25 27	29
Max. Running torque	2Kgf • cm	10Kgf • cm	10Kgf • cm
Max. Gear breaking torque	8Kgf • cm	30Kgf • cm	30Kgf • cm
Max.Gearing efficiency	81%； 73%	65%； 59%	53%； 48%
Other reduction ratio please telephone or e-mail to our engineering department.
