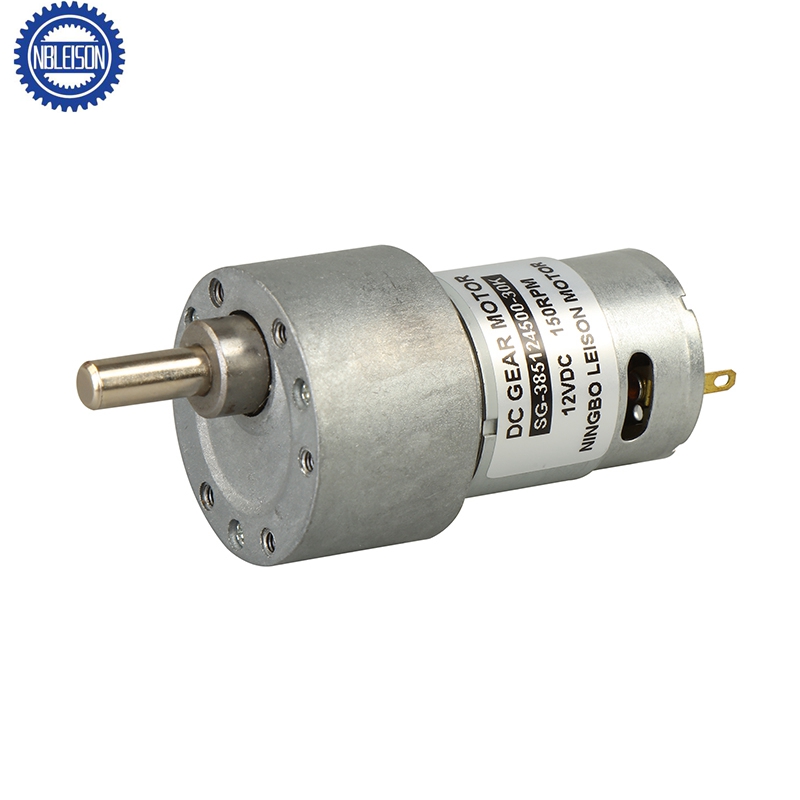

Features:
1. Motor type :Brushed DC motor
2 .Gearbox :37mm Spur gearbox
3. Voltage: 3V, 4.5V, 5V, 6V, 7.2V, 9V, 12V, 18V, 24V DC
4. Speed: 1RPM-2500RPM
5. Torque: 2kg.cm-30kg.cm
6. Shaft dia: 6mm D
7. Direction: CW /CCW
8. Typical application: Valve, Vending machine, Safe box dc motor, Robotics, Power tools, Sliding gate, Solar system, Dispenser motors
9. Customized service: Motor's performance parameter, Shaft type, Wires and connectors, Encoders
Quantity: | |
---|---|
Electrical Specifications LS-SG385.pdf
Motor Data
Motor Model | Rated Volt. | No load | Load | Stall | |||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
V | mA | r/min | mA | r/min | gf • cm | W | gf • cm | mA | |
SG-385123000 | 12 | ≤45 | 3000 | ≤150 | 2200 | 35 | 0.8 | 140 | 450 |
SG-385124500 | 12 | ≤70 | 4500 | ≤300 | 3300 | 55 | 1.8 | 220 | 1200 |
SG-385126000 | 12 | ≤100 | 6000 | ≤600 | 4500 | 80 | 3.6 | 320 | 1900 |
SG-385243000 | 24 | ≤25 | 3000 | ≤70 | 2200 | 35 | 0.8 | 140 | 230 |
SG-385244500 | 24 | ≤40 | 4500 | ≤150 | 3300 | 55 | 1.8 | 220 | 600 |
SG-385246000 | 24 | ≤50 | 6000 | ≤300 | 4500 | 80 | 3.6 | 320 | 1000 |
* Note: It’s only typical technical data, special requirement can be customized. |
Gearbox Data
Numberof stages | 2/3 stages reduction | 4/5 stages reduction | 6/7 stages reduction |
Reduction ratio | 6、10; 20、30 | 60、90; 120、180、270 | 489、540、810; 1620、2430 |
Gearbox length “L” mm | 22.5 | 25 27 | 29 |
Max. Running torque | 2kgf.cm | 10kgf.cm | 10kgf.cm |
Max. Gear breaking torque | 8kgf.cm | 30kgf.cm | 30kgf.cm |
Max.Gearing efficiency | 81%; 73% | 65%; 59% | 53%; 48% |
Other reduction ratio please telephone or e-mail to our engineering department. |
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
