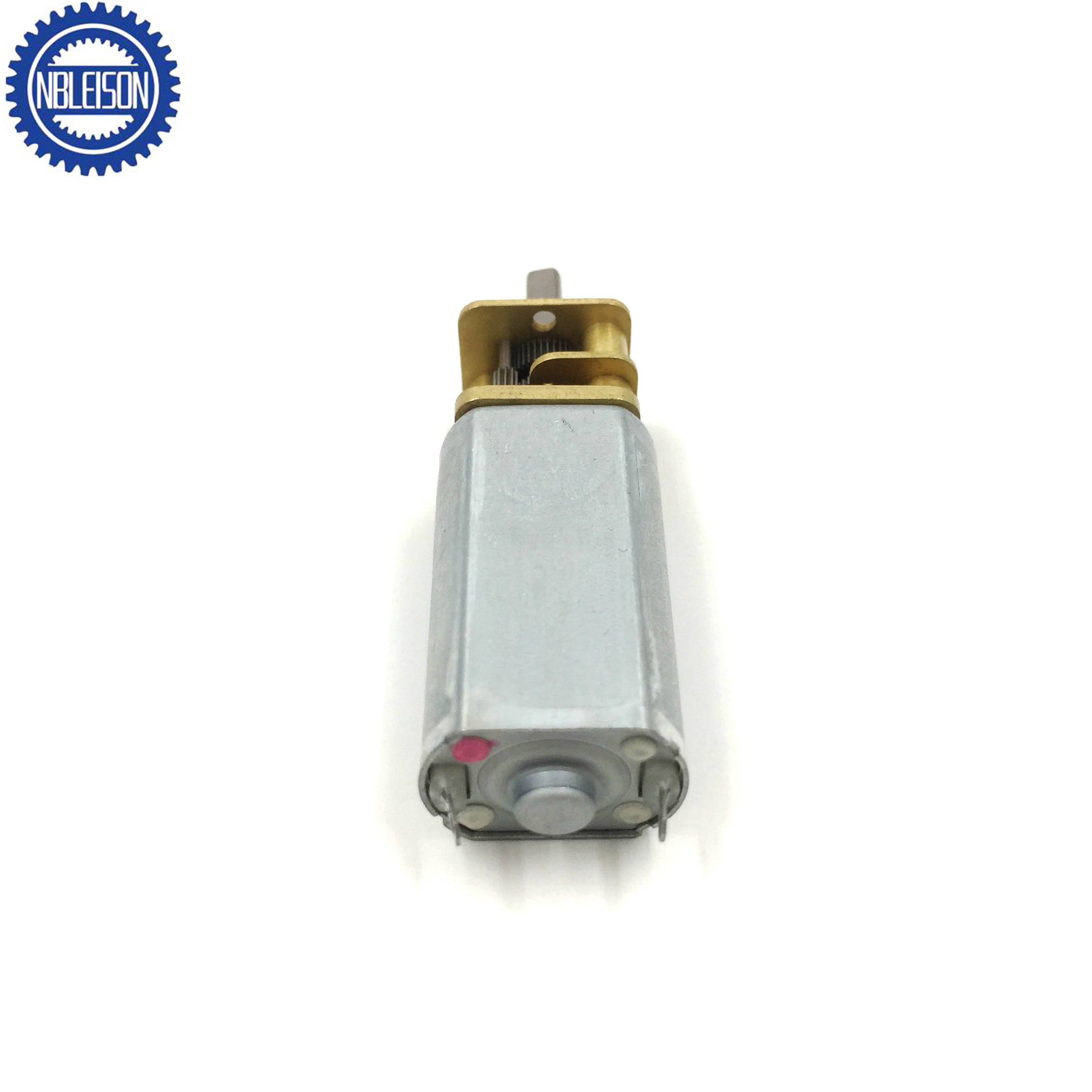

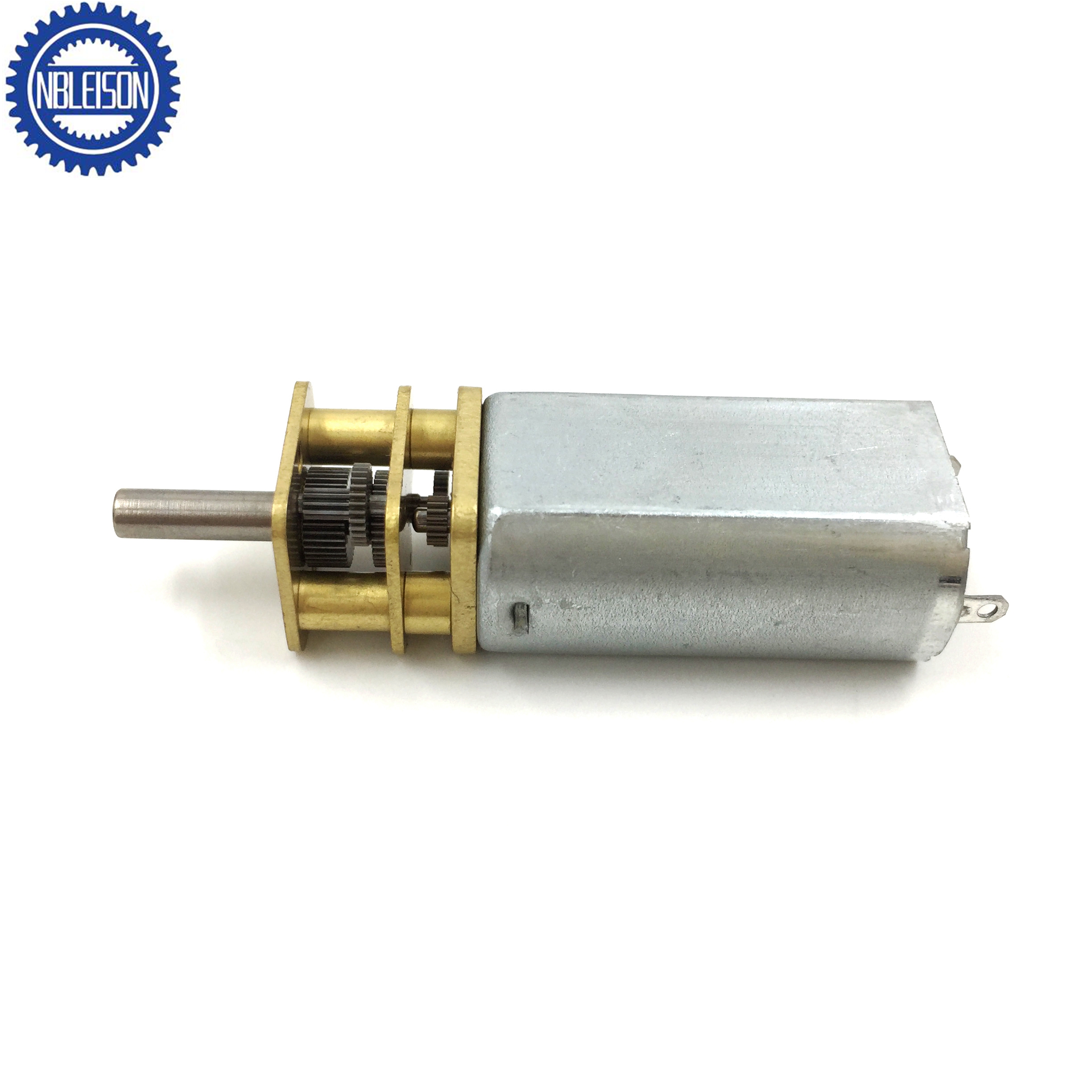

LS-050BGB Dc Gear Motor

Features:
1. Motor type: Brushed DC motor
2. Gearbox: Spur gearbox
3. Voltage: 1.5V, 3V, 4.5V, 5V, 6V, 7.2V, 9V, 12V, 24V DC
4. Speed: 5RPM-3000RPM
5. Torque: 0.02kg.cm-3kg.cm
6. Shaft dia: 3mm
7. Direction: CW/CCW
8. Case: Copper plate gear case
9. Bushings: Sleeve bronze bushings
10. Typical application: Robotics, Electric door lock, Medcial equipment, Electric valve, Camera, 3D pen, Toys
11. Customized service: Motor's performance parameter, Shaft type, Wires and connectors, Encoders

Availability:

Quantity:



Inquire Add to Basket

Model:
050BGB
Brand:
Leison Motor

Product Description

Electrical Specifications

LS-050BGB.pdf

Motor with Gearbox Data

Model	Ratio	Voltage (v)	No Load		At Maximum Efficiency				Stall
Model	Ratio	Voltage (v)	Speed (r/min)	Current (mA)	Speed (r/min)	Current (mA)	Torque (g.cm)	Output (w)	Torque (g.cm)	Current (mA)
050BGB86-1110	1/86	6	106	55	90	150	350	0.35	1900	750
050BGB115-1768	1/115	6	190	180	170	280	600	0.45	4800	3300
050BGB360-08230	1/360	6	26	40	21	70	700	0.25	5000	450
050BGB360-12230	1/360	12	26	30	21	60	700		5000	400
050BGB360-08270	1/360	6	15	30	13	60	500		3200	280
050BGB86-1768	1/86	6	250	180	220	550	600		3500	3450
050BGB63-1768	1/63	6	350	180	290	650	550		2800	3450
050BGB35-1768	1/35	6	620	180	500	720	400		2000	3450
* Note: It’s only typical technical data, special requirement can be customized.
