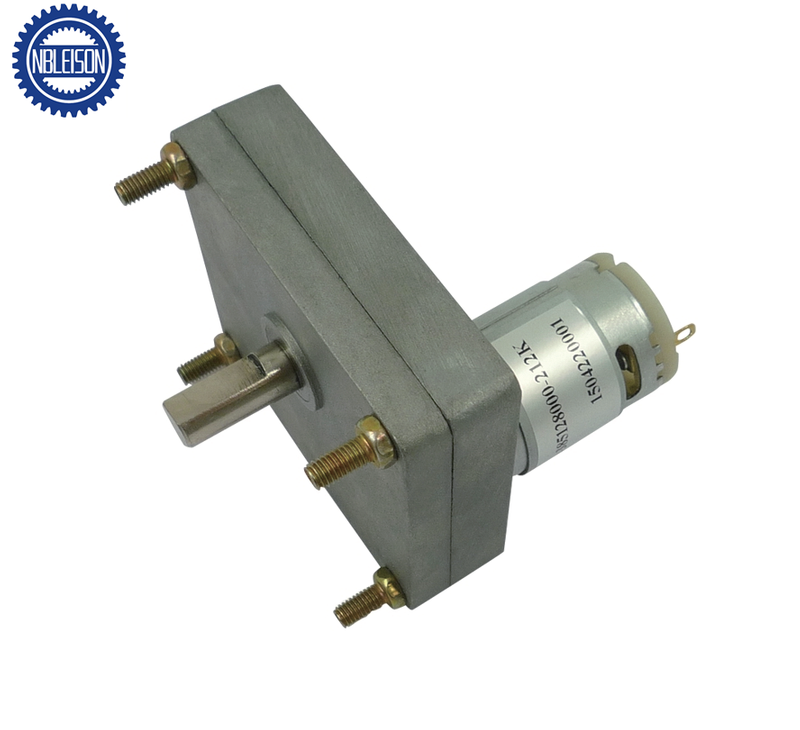

VFO-38
Leison Motor
Electrical Specifications
Motor Data
| Motor Model | Rated Volt. | No load | Load | Stall | ||||||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | |||||
| V | mA | r/min | mA | r/min | gf • cm | W | gf • cm | mA | ||||
| VFO38123400 | 12 | 40 | 3400 | 180 | 2500 | 40 | 1.0 | 160 | 720 | |||
| VFO38124500 | 12 | 60 | 4500 | 350 | 3300 | 60 | 2.0 | 210 | 1400 | |||
| VFO38126000 | 12 | 70 | 6000 | 720 | 4500 | 80 | 3.6 | 300 | 2800 | |||
| VFO38243000 | 24 | 15 | 3000 | 80 | 2200 | 40 | 0.9 | 140 | 320 | |||
| VFO38244500 | 24 | 25 | 4500 | 180 | 3300 | 60 | 2.0 | 210 | 730 | |||
| VFO38246700 | 24 | 45 | 6700 | 360 | 4500 | 80 | 3.6 | 300 | 1400 | |||
| * Note: It’s only typical technical data, special requirement can be customized. | ||||||||||||
Gearbox Data
| Numberof stages | 4 stages reduction | 5 stages reduction | 7 stages reduction | |||||||||
| Reduction ratio | 212、307、409 | 765、818、1105、1228 | 3061、4592、6632、9948 | |||||||||
| Max. Running torque | 1.5kgf.cm | 5kgf.cm | 10kgf.cm | |||||||||
| Max. Gear breaking torque | 4.5kgf.cm | 15kgf.cm | 30kgf.cm | |||||||||
| Max.Gearing efficiency | 65% | 59% | 48% | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
Electrical Specifications
Motor Data
| Motor Model | Rated Volt. | No load | Load | Stall | ||||||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | |||||
| V | mA | r/min | mA | r/min | gf • cm | W | gf • cm | mA | ||||
| VFO38123400 | 12 | 40 | 3400 | 180 | 2500 | 40 | 1.0 | 160 | 720 | |||
| VFO38124500 | 12 | 60 | 4500 | 350 | 3300 | 60 | 2.0 | 210 | 1400 | |||
| VFO38126000 | 12 | 70 | 6000 | 720 | 4500 | 80 | 3.6 | 300 | 2800 | |||
| VFO38243000 | 24 | 15 | 3000 | 80 | 2200 | 40 | 0.9 | 140 | 320 | |||
| VFO38244500 | 24 | 25 | 4500 | 180 | 3300 | 60 | 2.0 | 210 | 730 | |||
| VFO38246700 | 24 | 45 | 6700 | 360 | 4500 | 80 | 3.6 | 300 | 1400 | |||
| * Note: It’s only typical technical data, special requirement can be customized. | ||||||||||||
Gearbox Data
| Numberof stages | 4 stages reduction | 5 stages reduction | 7 stages reduction | |||||||||
| Reduction ratio | 212、307、409 | 765、818、1105、1228 | 3061、4592、6632、9948 | |||||||||
| Max. Running torque | 1.5kgf.cm | 5kgf.cm | 10kgf.cm | |||||||||
| Max. Gear breaking torque | 4.5kgf.cm | 15kgf.cm | 30kgf.cm | |||||||||
| Max.Gearing efficiency | 65% | 59% | 48% | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
