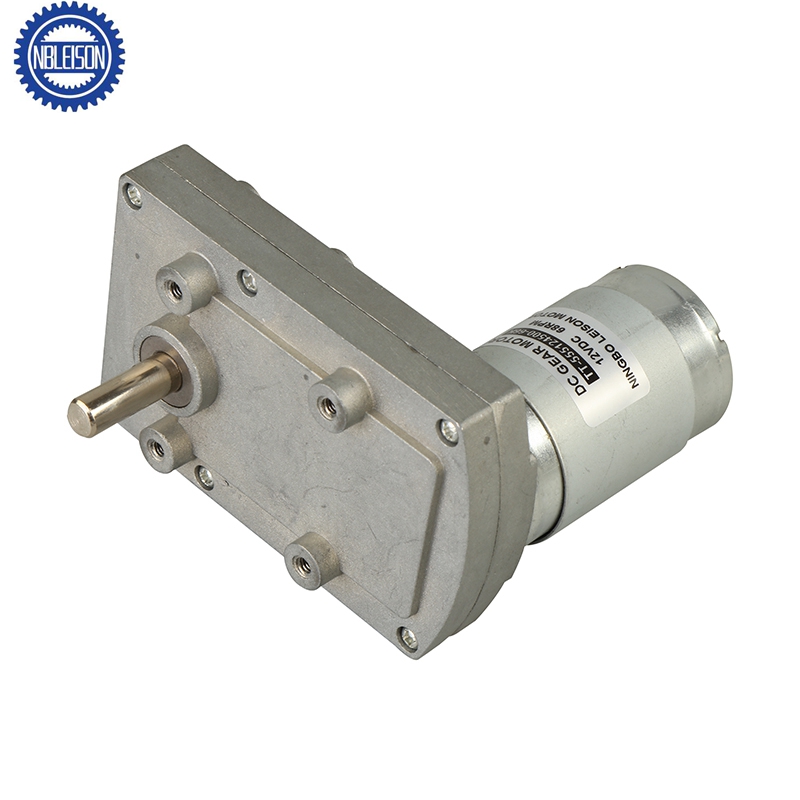

LS-TT555 Dc Gear Motor

Features:
1. Motor type: Brushed DC motor
2 .Gearbox: Spur gearbox
3. Voltage: 6V, 7.2V, 9V, 12V, 18V, 24V DC
4. Speed: 1RPM-100RPM
5. Torque: 5kg.cm-60kg.cm
6. Shaft dia: 8mm
7. Direction: CW /CCW
8. Typical application: Electric lock system, Valve, Vending machine, Safe box dc motor, Robotics, Power tools, Sliding gate, Clean machine, Grill, Slot machines
9. Customized service: Motor's performance parameter, Shaft type, Wires and connectors, Encoders

Quantity:
  • TT555
  • Leison Motor

Electrical Specifications

不用缩小的手指LS-TT555.pdf


Motor Data

Motor Model Rated Volt. No load Load Stall
Current Speed Current Speed Torque Output power Torque Current
V mA r/min mA r/min gf • cm W gf • cm mA
TT-555123000 12 ≤140 3000 C800 2200 150 3.3 600 3000
TT-555124500 12 ≤220 4500 ≤1200 3300 220 7.2 880 4800
TT-555126000 12 ≤350 6000 ≤2000 4500 300 13.5 1200 6000
TT-555243000 24 ≤70 3000 ≤400 2200 150 3.3 600 1600
TT-555244500 24 ≤110 4500 ≤600 3300 220 7.2 880 3000
TT-555246000 24 ≤180 6000 ≤1000 4500 300 13.5 1200 4000
* Note: It’s only typical technical data, special requirement can be customized.


How to calculate the motor with gearbox output specs?
1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio
2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency



e.g.:
TT-555126000-36K
1. Output Speed(No-load)= 6000/ 36≈167RPM
2. Output Torque= 300* 36* 73%=7884gf.cm≈7.88kgf.cm≈0.77N.m


Gearbox Data

Numberof stages 3 stages reduction 4 stages reduction 5 stages reduction
Reduction ratio 36、 66、 94 149、196、211、277、394 624、830、1166
Max. Running torque 5kgf.cm 20kgf.cm 50kgf. cm
Max. Gear breaking torque 30kgf.cm 60kgf.cm 150kgf.cm
Max.Gearing efficiency 73% 65% 59%
Other reduction ratio please telephone or e-mail to our engineering department.


Mechanical Dimensions
TT555
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
