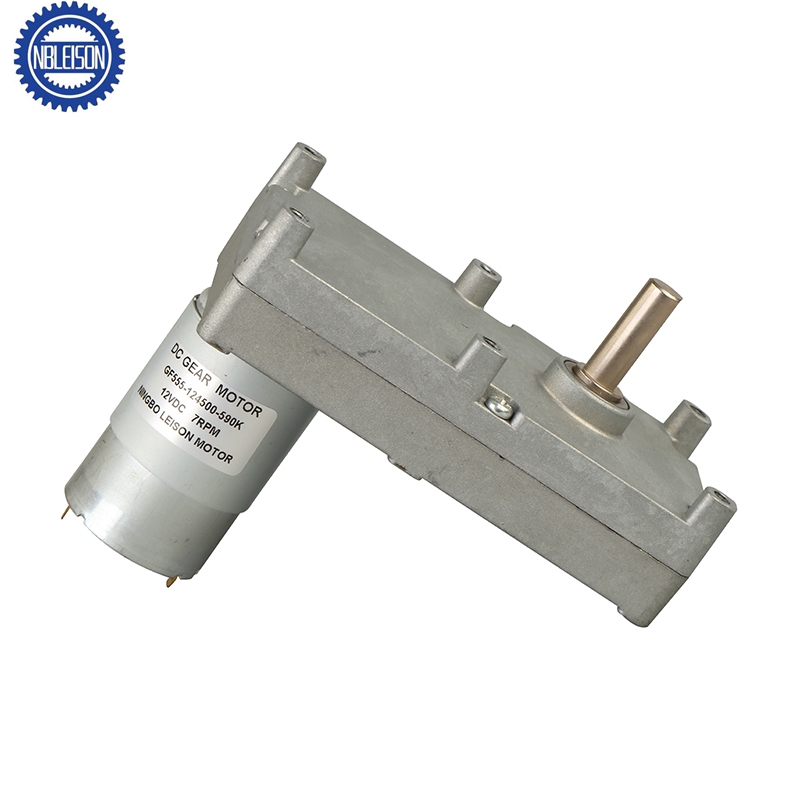

GF555
Leison Motor
Electrical Specifications
LS-GF555.pdf
Motor Data
| Motor Model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| V | mA | r/min | mA | r/min | gf • cm | W | gf • cm | mA | |
| GF-555123000 | 12 | ≤140 | 3000 | ≤800 | 2200 | 150 | 3.3 | 600 | 3000 |
| GF-555124500 | 12 | ≤220 | 4500 | ≤1200 | 3300 | 220 | 7.2 | 880 | 4800 |
| GF-555126000 | 12 | ≤350 | 6000 | ≤2000 | 4500 | 300 | 13.5 | 1200 | 6000 |
| GF-555243000 | 24 | ≤70 | 3000 | ≤400 | 2200 | 150 | 3.3 | 600 | 1600 |
| GF-555244500 | 24 | ≤110 | 4500 | ≤600 | 3300 | 220 | 7.2 | 880 | 3000 |
| GF-555246000 | 24 | ≤180 | 6000 | ≤1000 | 4500 | 300 | 13.5 | 1200 | 4000 |
| * Note: It’s only typical technical data, special requirement can be customized. | |||||||||
Gearbox Data
| Number of stages | 4 stages reduction | 4 stages reduction | 5 stages reduction | 6 stages reduction |
| Reduction ratio | 251 | 389、590、722、897 | 1269、1601、1929 | 3385、5078 |
| Max. Running torque | 30Kgf • cm | 50Kgf • cm | 80Kgf • cm | 100Kgf • cm |
| Max. Gear breaking torque | 90Kgf • cm | 150Kgf • cm | 240Kgf • cm | 300Kgf • cm |
| Max.Gearing efficiency | 65% | 65% | 59% | 53% |
| Other reduction ratio please telephone or e-mail to our engineering department. | ||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
