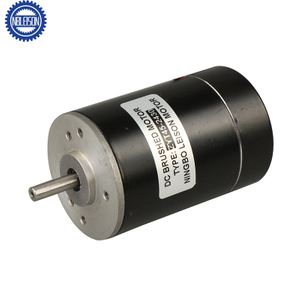

ZY31 High Torque Dc Motor

Features:
1. Motor type: Brushed DC motor
2. Voltage: 12V-36VDC
3. Speed: 2000RPM-8000RPM
4. Torque: 360g.cm-720g.cm
5. Shaft dia:3mm
6. Direction: CW/ CCW
7. Bearing: oil bearing or ball bearing for choose
8. Typical application: electric equipment, automation equipment
9. Customized service: parameter, shaft type, wires and connectors

Quantity:
  • ZY31
  • Leison Motor
  • 850110

Electrical Specifications


不用缩小的手指ZY31.PDF


Motor Data

Motor name Rated Volt.v No load Load torque Stall torque
Current Speed Currerrt Speed Torque Output
power
Torque Current
mA r/min mA r/min gf. cm w gf. cm mA
ZY31123000 12 ≤100 3000 ≤400 2200 90 2 360 1600
ZY31124500 12 ≤150 4500 ≤700 3300 130 4. 3 520 2700
ZY31126000 12 ≤220 6000 ≤1200 4500 180 8 720 5000
ZY31243000 24 ≤60 3000 ≤200 2200 90 2 360 800
ZY31244500 24 ≤90 4500 ≤350 3300 130 4. 3 520 1300
ZY31246000 24 ≤130 6000 ≤650 4500 180 8 720 2600
*Note:It's only typical technical data,special requirement can be customzied.


Mechanical Dimensions

ZY31 drawing

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
