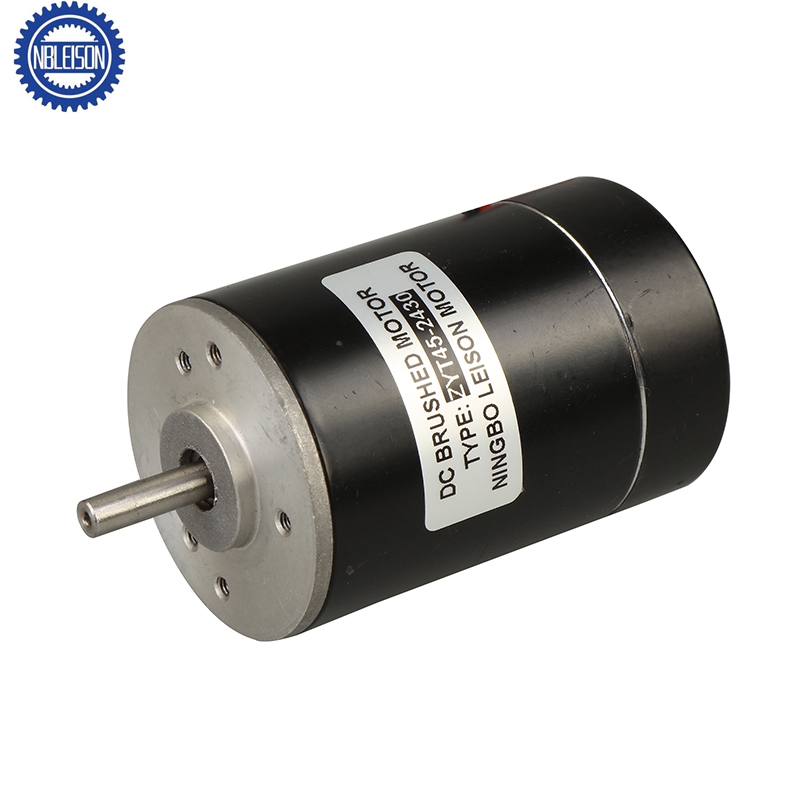

45ZY High Torque Dc Motor

Features:
1. Motor type: Brushed DC motor
2. Voltage: 12V-36VDC
3. Speed: 2000RPM-8000RPM
4. Torque: 550g.cm-1100g.cm
5. Shaft dia:5mm
6. Direction: CW/ CCW
7. Bearing: oil bearing or ball bearing for choose
8. Typical application: fan, tubular electric equipment, automation equipment
9. Customized service: parameter, shaft type, wires and connectors

Quantity:
  • 45ZY
  • Leison Motor

Electrical Specifications


不用缩小的手指ZY45.pdf



Motor Data

Motor name Rated Volt.v No load Load torque Stall torque
Current Speed Current Speed Torque Output power Torque Current
mA r/min mA r/min gf. cm W gf. cm A
ZY45123000 12 ≤250 3000 ≤1700 2200 550 12 2200 6. 5
ZY45124500 12 ≤400 4500 ≤3600 3300 800 26. 4 3200 12. 5
ZY45126000 12 ≤700 6000 ≤6900 4500 1100 49. 5 4400 25
ZY45243000 24 ≤180 3000 ≤850 2200 500 12 2200 3. 5
ZY45244500 24 ≤280 4500 ≤1800 3300 800 26. 4 3200 6. 3
ZY45246000 24 ≤350 6000 ≤3500 4500 1100 49. 5 4400 13
*Note:Its only typical technical data,special requirement can be customzied.


Mechanical Dimensions

ZY45

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
