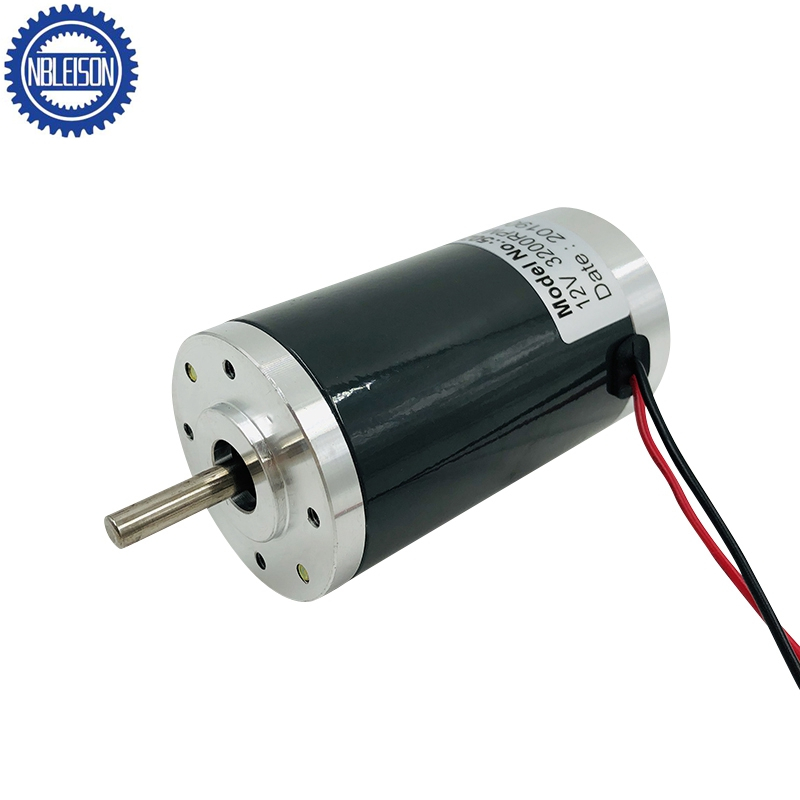

53ZYT High Torque Dc Motor

Features:
1. Motor type: Brushed DC motor
2. Voltage: 12V-36VDC
3. Speed: 2000RPM-8000RPM
4. Torque: 800g.cm-1000g.cm
5. Shaft dia:8mm
6. Direction: CW/ CCW
7. Bearing: oil bearing or ball bearing for choose
8. Typical application: fan, tubular electric equipment, automation equipment
9. Customized service: parameter, shaft type, wires and connectors

Quantity:
  • 53ZYT
  • Leison Motor

Electrical Specifications


不用缩小的手指ZY53.pdf


Motor Data

Motor name  Rated Volt.v No load Load torque Stall torque
Current Speed Current Speed Torque Output
power
Torque Current
mA r/m in mA r/m in gf. cm w gf. cm A
ZY53123000 12 ≤350 3000 ≤2800 2200 800 20 3200 9. 1
ZY53124500 12 ≤450 4500 ≤3600 3300 900 25 3600 11.7
ZY53126000 12 ≤550 6000 ≤4400 4500 1000 30 4000 14. 3
ZY53243000 24 ≤200 3000 ≤1200 2200 800 20 3200 5. 2
ZY53244500 24 ≤300 4500 ≤1800 3300 900 25 3600 7. 8
ZY53246000 24 ≤400 6000 ≤2400 4500 1000 30 4000 10. 4
*Note:Its only typical technical data,special requirement can be customzied.


Mechanical Dimensions

ZY53

* Note: The motor parts such as shaft size, cables & connectors can be customized.
