24HT
Leison Motor
Electrical Specifications
Motor Data
| Model | Step Angle (°) | Motor Length (mm) | Rated Current(A) | Phase Resistance(Ω) | Phase Inductance(mH) | Holding Torque (N.cmMin) | Detent Torque (N.cmMax) | Rotor Inertia (g.cm2) | Lead Wire (No.) | Motor Weight(g) |
| 24HT6335 | 1.2 | 54 | 3.5 | 0.8 | 1.8 | 80 | 3.5 | 280 | 3 | 580 |
| 24HT6346 | 1.2 | 54 | 4.6 | 0.5 | 0.8 | 80 | 3.5 | 280 | 3 | 580 |
| 24HT7335 | 1.2 | 64 | 3.5 | 1.0 | 2.5 | 110 | 5.0 | 380 | 3 | 850 |
| 24HT7346 | 1.2 | 64 | 4.6 | 0.7 | 1.2 | 110 | 5.0 | 380 | 3 | 850 |
| 24HT8335 | 1.2 | 76 | 3.5 | 1.2 | 3.2 | 130 | 6.5 | 440 | 3 | 1150 |
| 24HT8346 | 1.2 | 76 | 4.6 | 0.8 | 1.5 | 130 | 6.5 | 440 | 3 | 1150 |
| 24HT1335 | 1.2 | 90 | 3.5 | 1.5 | 4.5 | 160 | 8 | 580 | 3 | 1400 |
| 24HT1346 | 1.2 | 90 | 4.6 | 1.0 | 2.5 | 160 | 8 | 580 | 3 | 1400 |
| Note: It's only typical technical data,special requirement can be customized. | ||||||||||

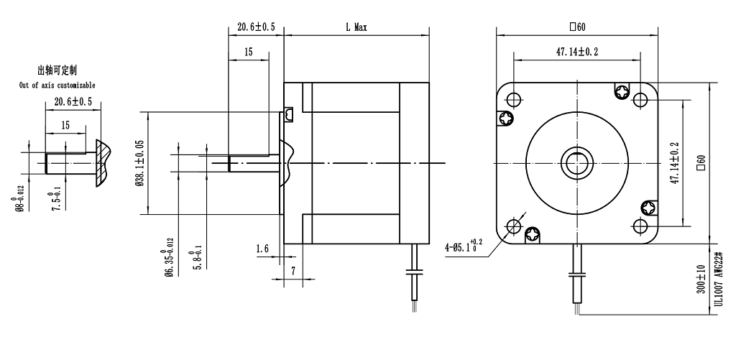

Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
Electrical Specifications
Motor Data
| Model | Step Angle (°) | Motor Length (mm) | Rated Current(A) | Phase Resistance(Ω) | Phase Inductance(mH) | Holding Torque (N.cmMin) | Detent Torque (N.cmMax) | Rotor Inertia (g.cm2) | Lead Wire (No.) | Motor Weight(g) |
| 24HT6335 | 1.2 | 54 | 3.5 | 0.8 | 1.8 | 80 | 3.5 | 280 | 3 | 580 |
| 24HT6346 | 1.2 | 54 | 4.6 | 0.5 | 0.8 | 80 | 3.5 | 280 | 3 | 580 |
| 24HT7335 | 1.2 | 64 | 3.5 | 1.0 | 2.5 | 110 | 5.0 | 380 | 3 | 850 |
| 24HT7346 | 1.2 | 64 | 4.6 | 0.7 | 1.2 | 110 | 5.0 | 380 | 3 | 850 |
| 24HT8335 | 1.2 | 76 | 3.5 | 1.2 | 3.2 | 130 | 6.5 | 440 | 3 | 1150 |
| 24HT8346 | 1.2 | 76 | 4.6 | 0.8 | 1.5 | 130 | 6.5 | 440 | 3 | 1150 |
| 24HT1335 | 1.2 | 90 | 3.5 | 1.5 | 4.5 | 160 | 8 | 580 | 3 | 1400 |
| 24HT1346 | 1.2 | 90 | 4.6 | 1.0 | 2.5 | 160 | 8 | 580 | 3 | 1400 |
| Note: It's only typical technical data,special requirement can be customized. | ||||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
