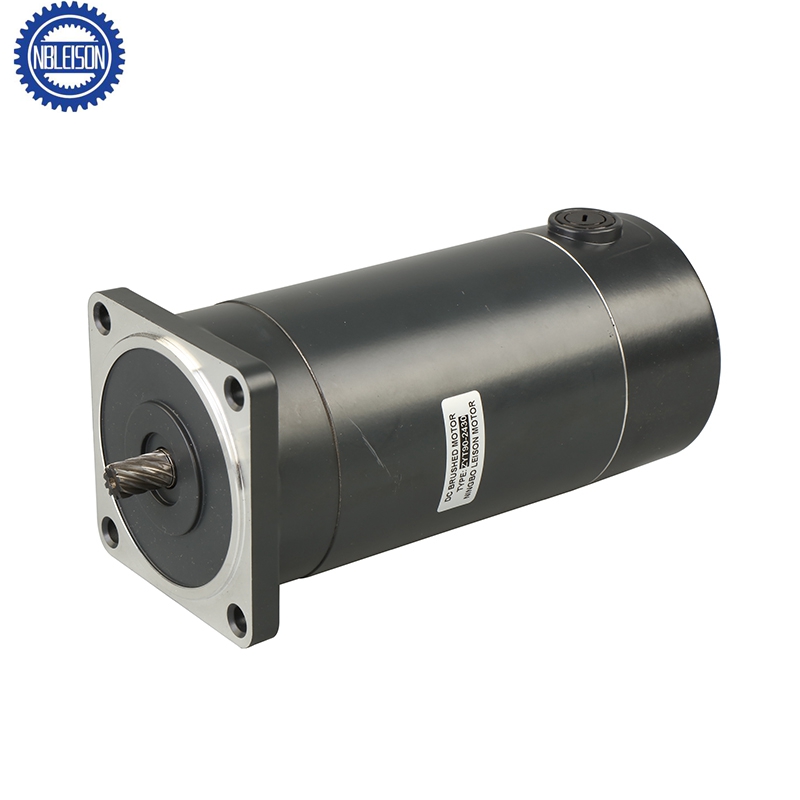

90ZYT High Torque Dc Motor

Features:
1. Motor type: Brushed DC motor
2. Voltage: 12V-220VDC
3. Speed: 1500RPM-3000RPM
4. Torque: 0.97N.m-2.0N.m
5. Shaft dia:11mm
6. Direction: CW/ CCW
7. Bearing: oil bearing or ball bearing for choose
8. Typical application: fan, tubular electric equipment, automation equipment
9. Customized service: parameter, shaft type, wires and connectors

Quantity:
  • 90ZYT
  • Leison Motor

Electrical Specifications


不用缩小的手指ZY90.pdf


Motor Data

Model No. Voltage (V)  Output Power (W)  No-load Parameters  Load Parameters  Brush Life (H) Motor Weight(KG)
Speed (r/min)  Current (A) Speed (r/min) Current (A) Torque (N.m)
90ZYFA-24-1800 24 150 1800 0.5max 1500 8.5 0.97 2000 3.14
90ZYFA-24-3000 24 350 3000 1.2max 2500 22 1.4 2000 3.14
90ZYFA-12-1800 12 150 1800 1.2max 1500 20 1.2 2000 3.14
90ZYFA-12-3000 12 300 3000 1.8max 2500 35 1.2 2000 3.14
90ZYFB-24-1800 24 200 1800 0.55max 1500 10.5 1.25 2000 4.2
90ZYFB-24-3000 24 550 3000 1.0max 2600 30 2.0 2000 4.2
90ZYFB-12-1800 12 200 2000 1.2max 1500 23 1.25 2000 4.2
*Note:It's only typical technical data,special requirement can be customzied.


Mechanical Dimensions

ZYT09

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
