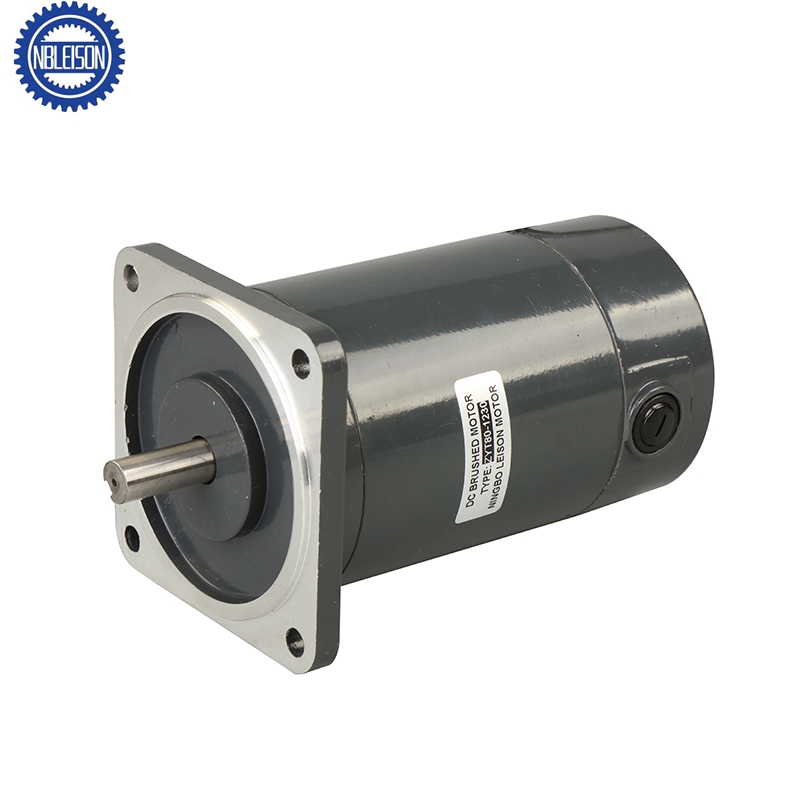

80ZYT High Torque Dc Motor

Features:
1. Motor type: Brushed DC motor
2. Voltage: 12V-220VDC
3. Speed: 1500RPM-3000RPM
4. Torque: 0.4N.m-1.58N.m
5. Shaft dia:11mm
6. Direction: CW/ CCW
7. Bearing: oil bearing or ball bearing for choose
8. Typical application: fan, tubular electric equipment, automation equipment
9. Customized service: parameter, shaft type, wires and connectors

Quantity:
  • 80ZYT
  • Leison Motor

Electrical Specifications


不用缩小的手指ZY80.pdf


Motor Data

Model  Voltage (V) Output Power (w) No-load Parameters Load Parameters Brush Life (H) Motor Weight (KG)
Speed (r/min)  Current (A) Speed (r/min) Current (A) Torque (N.m)
ZY80FA-24-1800 24 70 1800 0.4Max 1500 4.2 0.45 2000 1.87
ZY80FA-24-3000 24 100 3000 0.7Max 2500 6 0.4 2000 1.87
ZY80FA-12-1800 12 80 1800 0.8Max 1500 9.0 0.47 2000 1.87
ZY80FA-12-3000 12 90 3000 1.4Max 2500 11 0.35 2000 1.87
ZY80FB-24-1800 24 90 1800 0.4Max 1500 4.9 0.58 2000 2.26
ZY80FB-24-3000 24 200 3000 0.8Max 2500 11.5 0.8 2000 2.26
ZY80FB-12-1800 12 95 2000 0.9Max 1500 11.5 0.62 2000 2.26
ZY80FB-12-3000 12 110 3000 1.5Max 2500 12.8 0.45 2000 2.26
ZY80FC-24-1800 24 150 1800 0.55Max 1500 8.7 1.0 2000 2.82
ZY80FC-24-3000 24 400 3000 1. 0Max 2500 23.8 1.58 2000 2.82
ZY80FC-12-1800 12 100 1800 1. 0Max 1500 11 0.65 2000 2.82
ZY80FC-12-3000 12 300 3000 2. 0Max 2500 37 1.22 2000 2.82
*Note:It's only typical technical data,special requirement can be customzied.


Mechanical Dimensions

ZYT08

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
