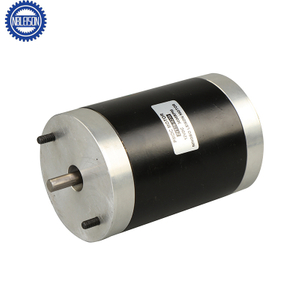

64ZYT High Torque Dc Motor

Features:
1. Motor type: Brushed DC motor
2. Voltage: 12V-36VDC
3. Speed: 3000RPM-6000RPM
4. Torque: 1200gf.cm-1400gf.cm
5. Shaft dia: 8mm
6. Direction: CW/ CCW
7. Bearing: oil bearing or ball bearing for choose
8. Typical application: fan, tubular electric equipment, automation equipment
9. Customized service: parameter, shaft type, wires and connectors

Quantity:
  • 64ZYT
  • Leison Motor

Electrical Specifications


不用缩小的手指ZY64.pdf


Motor Data

 Motor name Rated Volt.v No load  Load torque  Stall torque
Current Speed Current Speed Torque Output
Power
Torque Current
mA r/min mA r/min gf. cm w gf. cm A
ZY64123000 12 ≤500 3000 ≤4000 2200 1200 30 4800 17. 2
ZY64124500 12 ≤600 4500 ≤4800 3300 1300 35 5200 20. 6
ZY64126000 12 ≤700 6000 ≤5600 4500 1400 40 5600 24
ZY64243000 24 ≤300 3000 ≤2400 2200 1200 30 4800 10. 7
ZY64244500 24 ≤400 4500 ≤3200 3300 1300 35 5200 13. 7
ZY64246000 24 ≤500 6000 ≤4000 4500 1400 40 5600 17. 2
*Note:It's only typical technical data,special requirement can be customzied.


Mechanical Dimensions

ZY64

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
