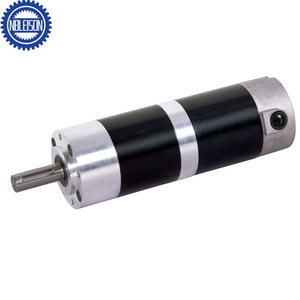

PG52ZY52
Leison Motor
Electrical Specifications
Gearbox Data
| Number of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.7 , 5.2 | 13.7 , 19.2 26.9 | 50.9,71.2 99.5 , 139 | 188 , 264,369 516,721 | 699, 977 , 1367 1911 , 2672 , 3736 |
| Gearbox length “L” mm | 27.3 | 38.9 | 50.5 | 62.1 | 73.7 |
| Max. Gear Running torque | 50kgf-cm | 100kgf-cm | 300kgf-cm | 300kgf-cm | 300kgf-cm |
| Max. Gear Breaking torque | 150kgf-cm | 300kgf-cm | 900kgf-cm | 900kgf-cm | 900kgf-cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
How to calculate the motor with gearbox output specs?
1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio
2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency
e.g.:
PG52MZY52123000-19.2K
1. Output Speed(No-load)=3000/19.2=156RPM
2. Output Torque=1316*19.2*81%=
20466.4g.cm≈20.4kg.cm=2.08Nm (Should not be higher than Max. Gear Running Torque)
Motor Data
| Motor Name | Rated Volt. V | No Load | Load Torque | Stall Torque | |||||
| Current | Speed | Current | Speed | Torque | Output Power | Torque | Current | ||
| mA | r/min | mA | r/min | gfcm | W | gfcm | A | ||
| ZY52123000 | 12 | ≤650 | 3000 | ≤4900 | 2550 | 1316 | 35.1 | 6416 | 21.1 |
| ZY52243000 | 24 | ≤320 | 3000 | ≤2880 | 2623 | 1634 | 44.8 | 8712 | 13.8 |
| *Note:It's only typical technical data,special requirement can be customzied. | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
Electrical Specifications
Gearbox Data
| Number of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.7 , 5.2 | 13.7 , 19.2 26.9 | 50.9,71.2 99.5 , 139 | 188 , 264,369 516,721 | 699, 977 , 1367 1911 , 2672 , 3736 |
| Gearbox length “L” mm | 27.3 | 38.9 | 50.5 | 62.1 | 73.7 |
| Max. Gear Running torque | 50kgf-cm | 100kgf-cm | 300kgf-cm | 300kgf-cm | 300kgf-cm |
| Max. Gear Breaking torque | 150kgf-cm | 300kgf-cm | 900kgf-cm | 900kgf-cm | 900kgf-cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
How to calculate the motor with gearbox output specs?
1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio
2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency
e.g.:
PG52MZY52123000-19.2K
1. Output Speed(No-load)=3000/19.2=156RPM
2. Output Torque=1316*19.2*81%=20466.4g.cm≈20.4kg.cm=2.08Nm (Should not be higher than Max. Gear Running Torque)
Motor Data
| Motor Name | Rated Volt. V | No Load | Load Torque | Stall Torque | |||||
| Current | Speed | Current | Speed | Torque | Output Power | Torque | Current | ||
| mA | r/min | mA | r/min | gfcm | W | gfcm | A | ||
| ZY52123000 | 12 | ≤650 | 3000 | ≤4900 | 2550 | 1316 | 35.1 | 6416 | 21.1 |
| ZY52243000 | 24 | ≤320 | 3000 | ≤2880 | 2623 | 1634 | 44.8 | 8712 | 13.8 |
| *Note:It's only typical technical data,special requirement can be customzied. | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
