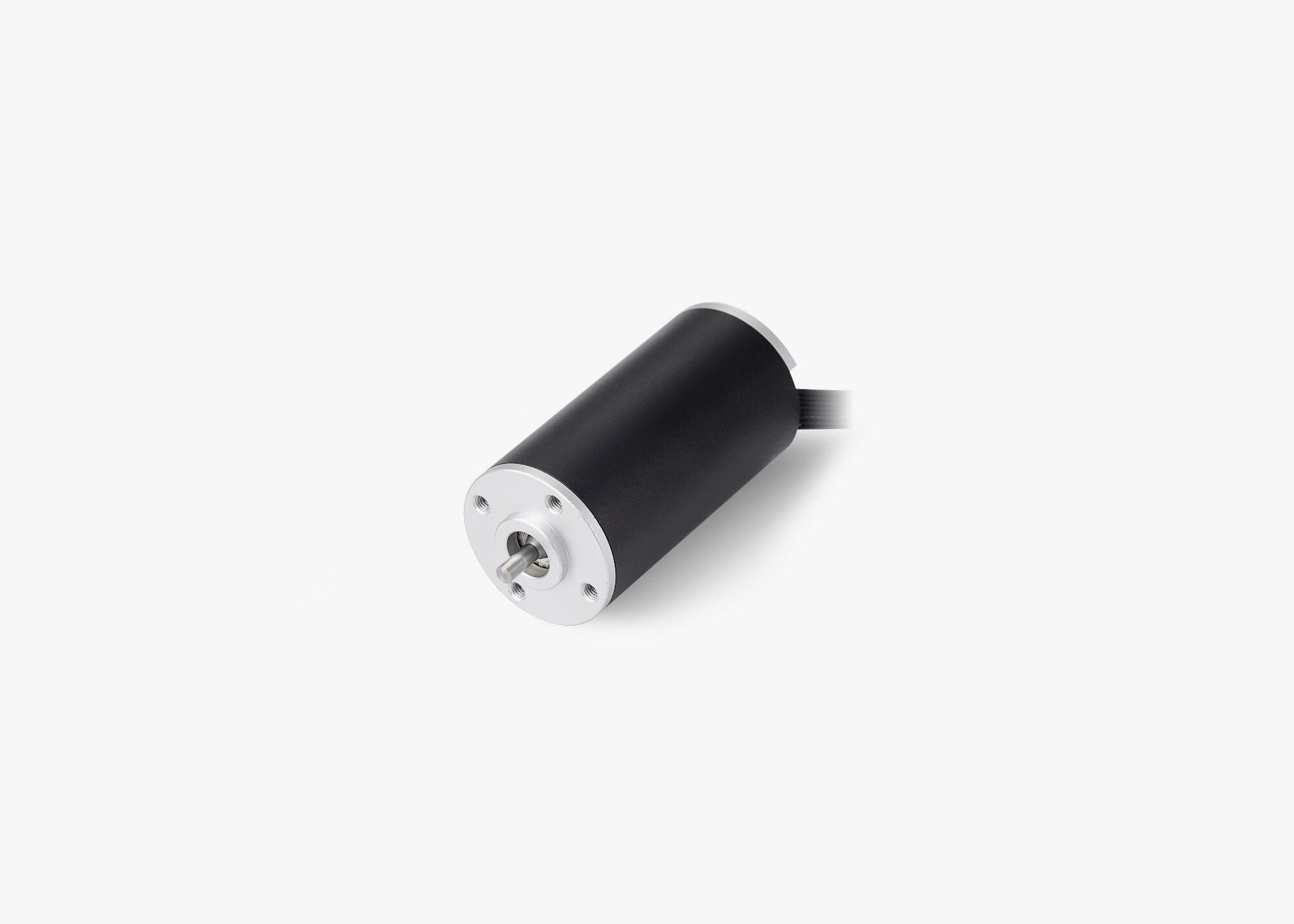

LS-2854RB Coreless Brushless DC Motor

Speed(RPM):11320-20610 rpm (rated)
Continuous Current(A): 1.33-1.9 A
Efficiency: IE 2
Place of Origin: China
Torque: 11.4-21.7 mNm (rated)
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Explosion-proof
Rated Voltage: 30V-36V
Feature: long lifetime low noise
Weight:147g
Shaft diameter :3.0mm
Certification:ce
Availability:
Quantity:
  • LS-2854RB

  • Leison Motor

Electrical Specifications


不用缩小的手指LS-2854RB Corless Brushless DC Motor.pdf


Motor Data


LS-2854RB Corless Brushless DC Motor

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized
