LS-1722RB Coreless Brushless DC Motor

Speed(RPM): 19690-24200 rpm (rated)
Continuous Current(A): 0.42-0.92 A
Efficiency: IE 2
Place of Origin: China
Torque: 1.1-3 mNm (rated)
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Totally Enclosed
Material: permanent magnet
Motor Diameter: 17mm
Weight: 26.4g
Rated Voltage :7.4v,12v,24V
Size: 17*22Mm
Availability:
Quantity:
Inquire Add to Basket

  • LS-1722RB

  • Leison Motor

Electrical Specifications


不用缩小的手指LS-1722RB Corless Brushless DC Motor.pdf

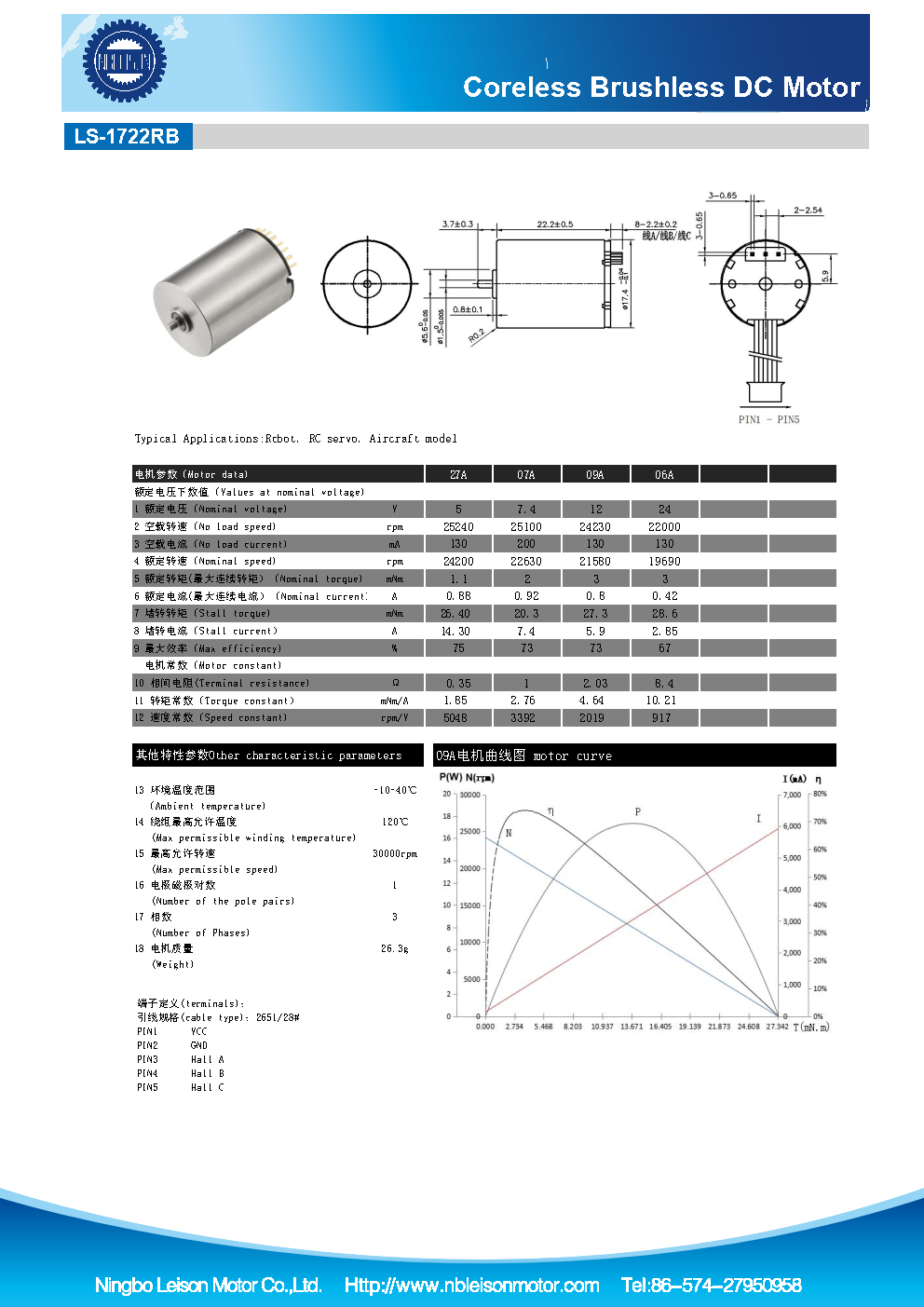

Motor Data


LS-1722RB Corless Brushless DC Motor照片

* Note: It’s only typical technical data, special requirement can be customized.
