LS-1715RB Coreless Brushless DC Motor

Speed(RPM): 24700-33350 (rated)
Continuous Current(A): 0.7-1 A
Efficiency: IE 2
Place of Origin: China
Torque: 1-1.2 mNm (rated)
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Explosion-proof
Rated Voltage: 6V
Weight: 16.3g
Shaft diameter: 1.5mm
Availability:
Quantity:
  • LS-1715RB

  • Leison Motor

Electrical Specifications


不用缩小的手指LS-1715RB Corless Brushless DC Motor.pdf


Motor Data

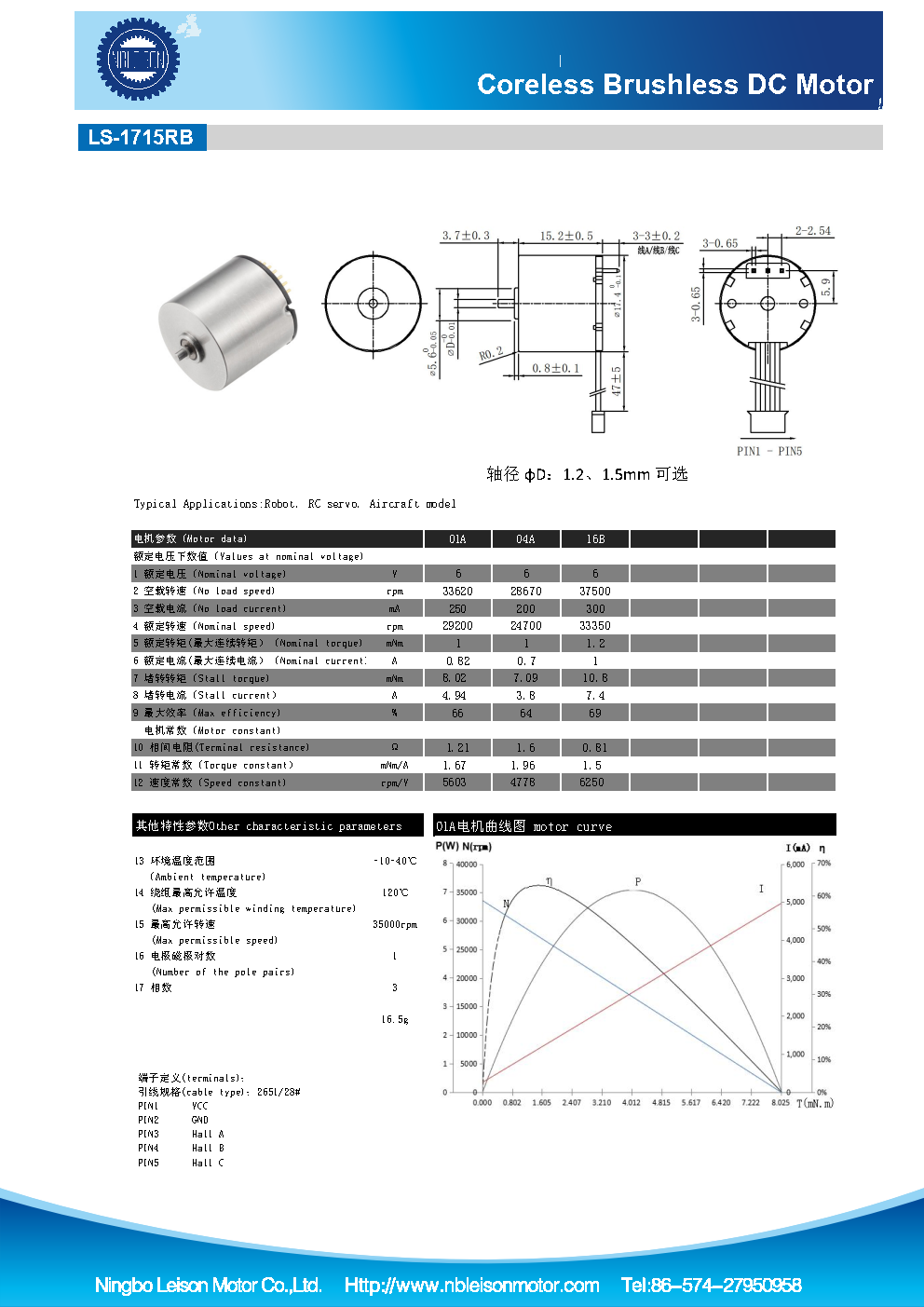

LS-1715RB Corless Brushless DC Motor照片

* Note: It’s only typical technical data, special requirement can be customized.
