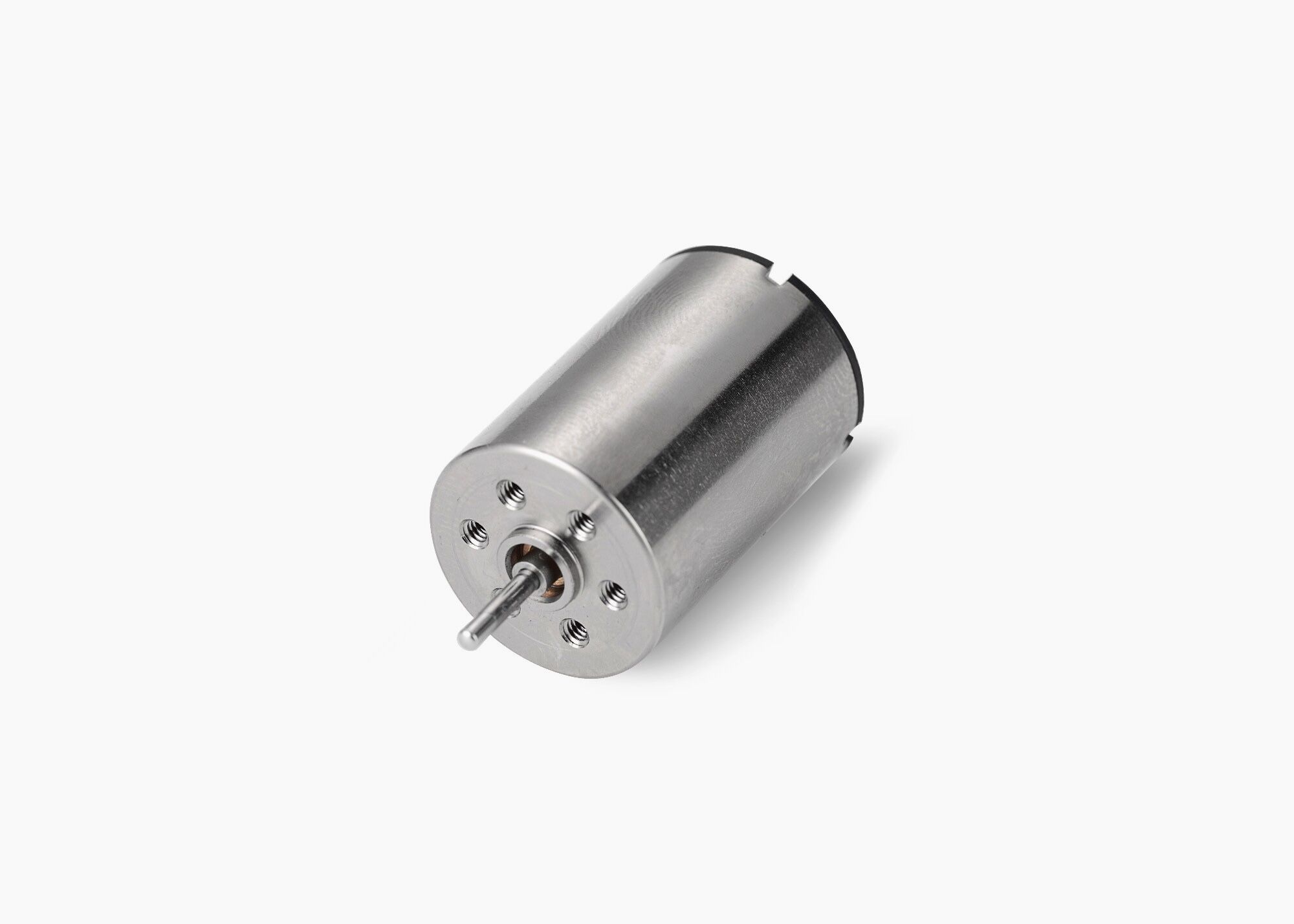

LS-1725R Coreless Brush DC Motor

Speed(RPM): 6120-10900 (rated)
Continuous Current(A): 0.18-0.3 A
Efficiency: IE 2
Place of Origin: China
Torque: 2.2-2.58 mNm (rated)
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Explosion-proof
Feature: high acceleration, long brush lifetime, smooth operation
Rated Voltage: 4.5V-12V
Weight: 26.9g
Shaft diameter : 1.5mm
Certification: ce
Availability:
Quantity:
  • LS-1725R

  • Leison Motor

Electrical Specifications


不用缩小的手指LS-1725R Corless Brush DC Motor.pdf


Motor Data


LS-1725R Corless Brush DC Motor

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized
