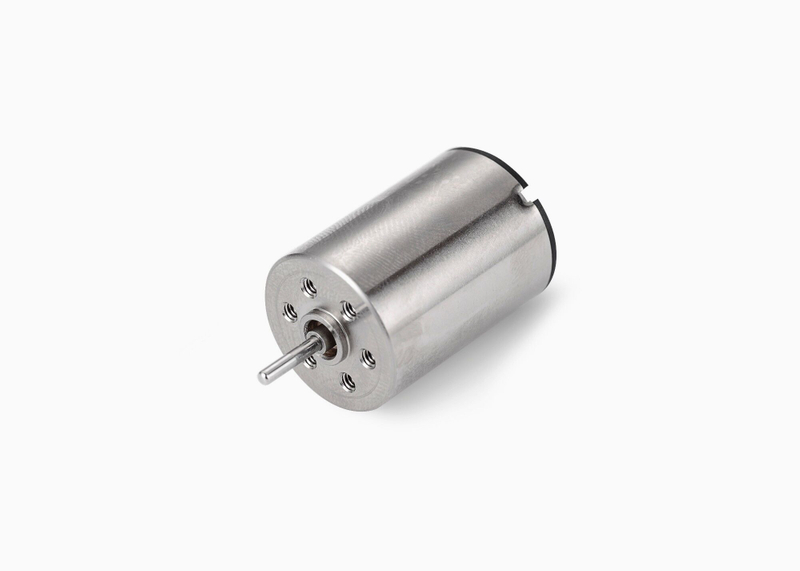

LS-1723R Coreless Brush DC Motor

Speed(RPM): 5250-8800rpm (rated)
Continuous Current(A): 0.22-0.79A (rated)
Efficiency: IE 2
Place of Origin: China
Torque: 2.37-3.5mNm (rated)
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Explosion-proof
Rated Voltage: 6v 12v
Size:17*23mm
Feature:long lifetime low Noise
Shaft diameter:1.5mm
Availability:
Quantity:
  • LS-1723R

  • Leison Motor

Electrical Specifications


不用缩小的手指LS-1723R Corless Brush DC Motor.pdf


Motor Data


LS-1723R Corless Brush DC Motor

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized
