LS-1642R Coreless Brush DC Motor

Speed(RPM): 8790-14600 rpm (rated)
Continuous Current(A): 0.29-0.72 A
Efficiency: IE 2
Place of Origin: China
Torque: 3-5 mNm (rated)
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Totally Enclosed
Rated Voltage: 5-24v
Size: 16*42mm
Feature: High Efficiency
Material: permanent magnets
Weight: 30g
Shaft diameter :1.5mm
  • LS-1642R

  • Leison Motor

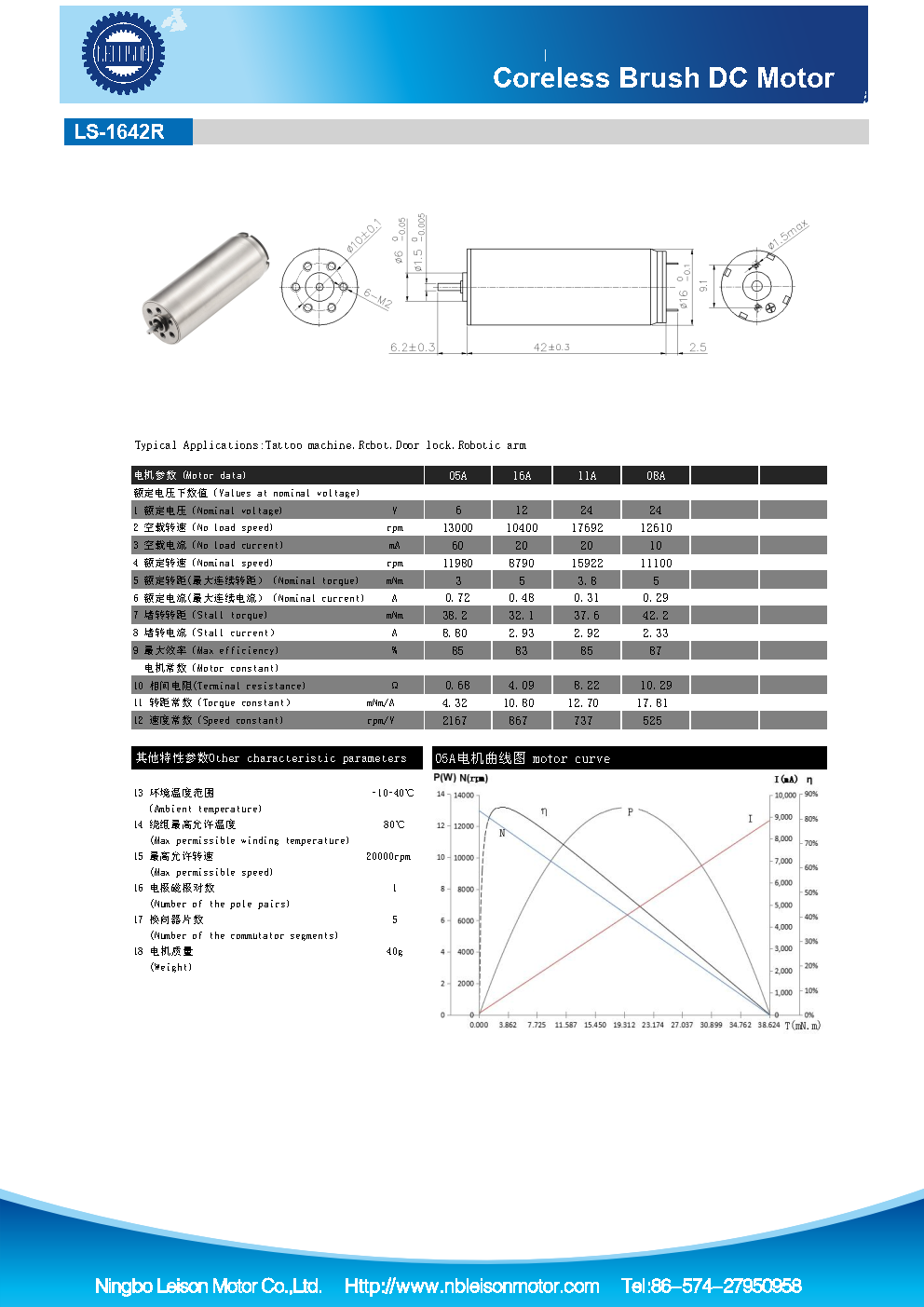

Electrical Specifications

不用缩小的手指LS-1642R Corless Brush DC Motor.pdf

Motor Data

LS-1642R Corless Brush DC Motor

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized
