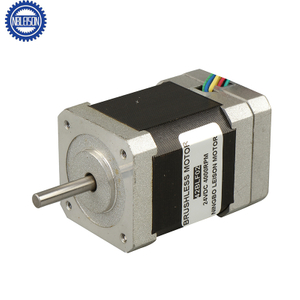

BL4260 Brushless Dc Motor
HOME » Products » Brushless Motors » Brushless Motor Without Gearboxes » BL4260 Brushless Dc Motor
Share to:

BL4260 Brushless Dc Motor

Features:
1. Motor type: Brushless DC motor
3. Voltage: 12V, 24V, 36V, 48V, 110V, 220V DC
4. Speed: 1000RPM-5000RPM
5. Torque: 0.01g.cm-600g.cm
6. Power: 1W -20W
7. Shaft dia: 5mm
8. Direction: CW /CCW
9. Typical application: Micro air pump, Water pump, Robotics, Power tools, Automation equipment, Medical equipment, Textile equipment
10. Customized service: Motor's performance parameter, Shaft type, Wires and connectors, Encoders, Internal Drivers

Quantity:
  • BL4260
  • Leison Motor

Electrical Specifications

DC Brushless Motor BL4260


General Specifications

Connection Mode B & C
Clockwise Rotation/ Counter Clockwise Rotation
FG Signal
PWM Control
Locked Rotor Protection
Power 30W (lnternal Drive)
50W (External Drive)
Life Expectancy ~3000H (Oil Bearing)
~5000H (Ball Bearing)


Motor Data

Motor model Rated voltage No-load Rated Stall
Speed Current Speed Torque Current Power Torque Current
VDC r/min mA r/min g.cm mA W g.cm A
BL4260-1246 12.0 4600 270 3864 310.4 1340 12 1940.0 7.0
BL4260-1250 12.0 5000 300 3400 500 2500 17 1500 4.0
BL4260-2437 24.0 3700 220 3071 597.6 1084 19 3515.0 5.30
BL4260-2450 24.0 5000 140 3550 500 1300 18 1700 4.0
* Note: It’s only typical technical data, special requirement can be customized.


Mechanical Dimensions

TEC4260

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
