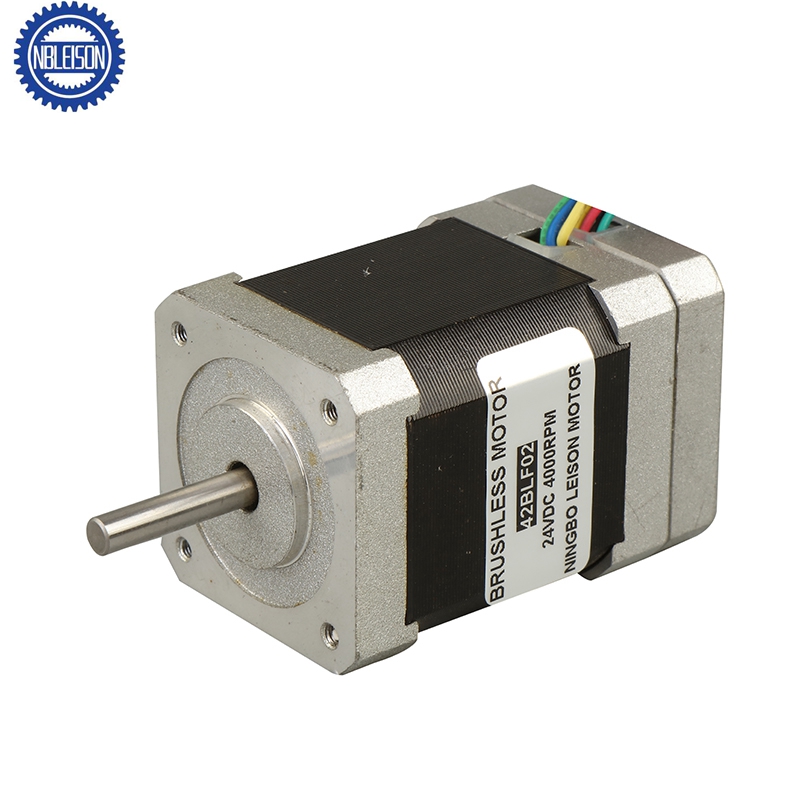

42BLF
Leison Motor
Electrical Specifications
General Specifications
| Item | Specification |
| Winding type | Star |
| Hall Effect angle | 120° electrical angle |
| Insulation Class | B |
| Ambient Temperature Range | -20°C~ +50°C |
| Insulation Resistance | 100MQMin.500V DC |
| Dielectric Strength | 500V AC 1 minute |
Motor Data
| Model | Number of Poles | Number of Phases | Rated Voltage | Rated Speed | Rated Torque | Rated Current | Output Power | Peak Torque | Peak Current | Torque constant | Back EMF | Rotor inertia | Body Length | Mass |
| VDC | RPM | N-m | Amps | Watts | N-m | Amps | N-m/Amps | V/KRPM | gem2 | mm | kg | |||
| 42BLF01 | 8 | 3 | 24 | 4000 | 0.063 | 1.9 | 26 | 0.18 | 5.7 | 0.035 | 3.7 | 24 | 47 | 0.33 |
| 42BLF02 | 24 | 4000 | 0.125 | 3.4 | 52 | 0.38 | 10.2 | 0.036 | 3.8 | 48 | 63 | 0.48 | ||
| 42BLF03 | 24 | 4000 | 0.188 | 5.7 | 78 | 0.75 | 18 | 0.036 | 3.8 | 72 | 79 | 0.63 | ||
| * Note: It’s only typical technical data, special requirement can be customized. | ||||||||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, internal drivers, cables & connectors can be customized.
