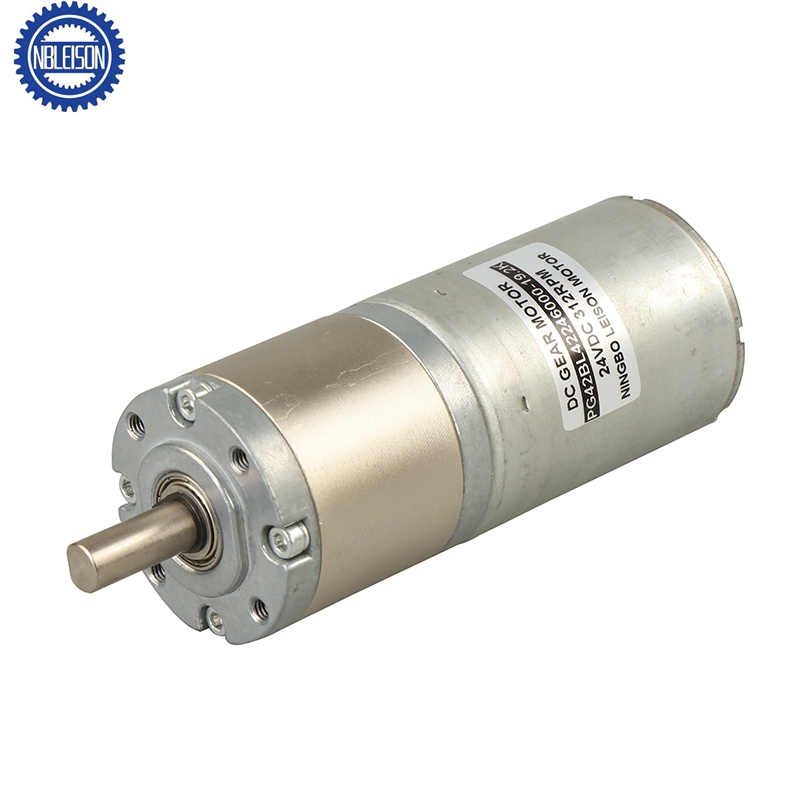

PG42BL42
Leison Motor
Electrical Specifications
Gearbox Data
| Number of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.7, | 10.2, 13.7, 19.2, | 32.5, 50.9, 71.2, 99.5, | 139, 188, 264, 369, 516, | 699, 977, 1367, 1911, 2672, 3736, |
| Gearbox length "L" mm | 31.8 | 43.1 | 54.4 | 65.7 | 77 |
| Max. running torque | 50Kgf • cm | 100Kgf • cm | 200Kgf • cm | 200Kgf • cm | 200Kgf • cm |
| Max. gear breaking torque | 150Kgf • cm | 300Kgf • cm | 300Kgf • cm | 600Kgf • cm | 600Kgf • cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
How to calculate the motor with gearbox output specs?
1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio
2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency
e.g.:
PG42BL42126000-19.2K
1. Output Speed(No-load)=6000/19.2=312RPM
2. Output Torque=795*19.2*81%=
12363.8g.cm≈12.4kg.cm=1.3Nm (Should not be higher than Max. Gear Running Torque)
Motor Data
| Motor name | Rated Volt. V | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf ・ cm | W | gf ・ cm | A | ||
| BL42-246000 | 24 | ≤280 | 6000 | ≤2027 | 4932 | 720 | 38.5 | 5889 | 14.59 |
| BL42-126000 | 12 | ≤350 | 6000 | ≤2223 | 5155 | 795 | 42.1 | 5785 | 13.96 |
| *Note:It's only typical technical data,special requirement can be customzied. | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
Electrical Specifications
Gearbox Data
| Number of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.7, | 10.2, 13.7, 19.2, | 32.5, 50.9, 71.2, 99.5, | 139, 188, 264, 369, 516, | 699, 977, 1367, 1911, 2672, 3736, |
| Gearbox length "L" mm | 31.8 | 43.1 | 54.4 | 65.7 | 77 |
| Max. running torque | 50Kgf • cm | 100Kgf • cm | 200Kgf • cm | 200Kgf • cm | 200Kgf • cm |
| Max. gear breaking torque | 150Kgf • cm | 300Kgf • cm | 300Kgf • cm | 600Kgf • cm | 600Kgf • cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
How to calculate the motor with gearbox output specs?
1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio
2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency
e.g.:
PG42BL42126000-19.2K
1. Output Speed(No-load)=6000/19.2=312RPM
2. Output Torque=795*19.2*81%=12363.8g.cm≈12.4kg.cm=1.3Nm (Should not be higher than Max. Gear Running Torque)
Motor Data
| Motor name | Rated Volt. V | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf ・ cm | W | gf ・ cm | A | ||
| BL42-246000 | 24 | ≤280 | 6000 | ≤2027 | 4932 | 720 | 38.5 | 5889 | 14.59 |
| BL42-126000 | 12 | ≤350 | 6000 | ≤2223 | 5155 | 795 | 42.1 | 5785 | 13.96 |
| *Note:It's only typical technical data,special requirement can be customzied. | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
