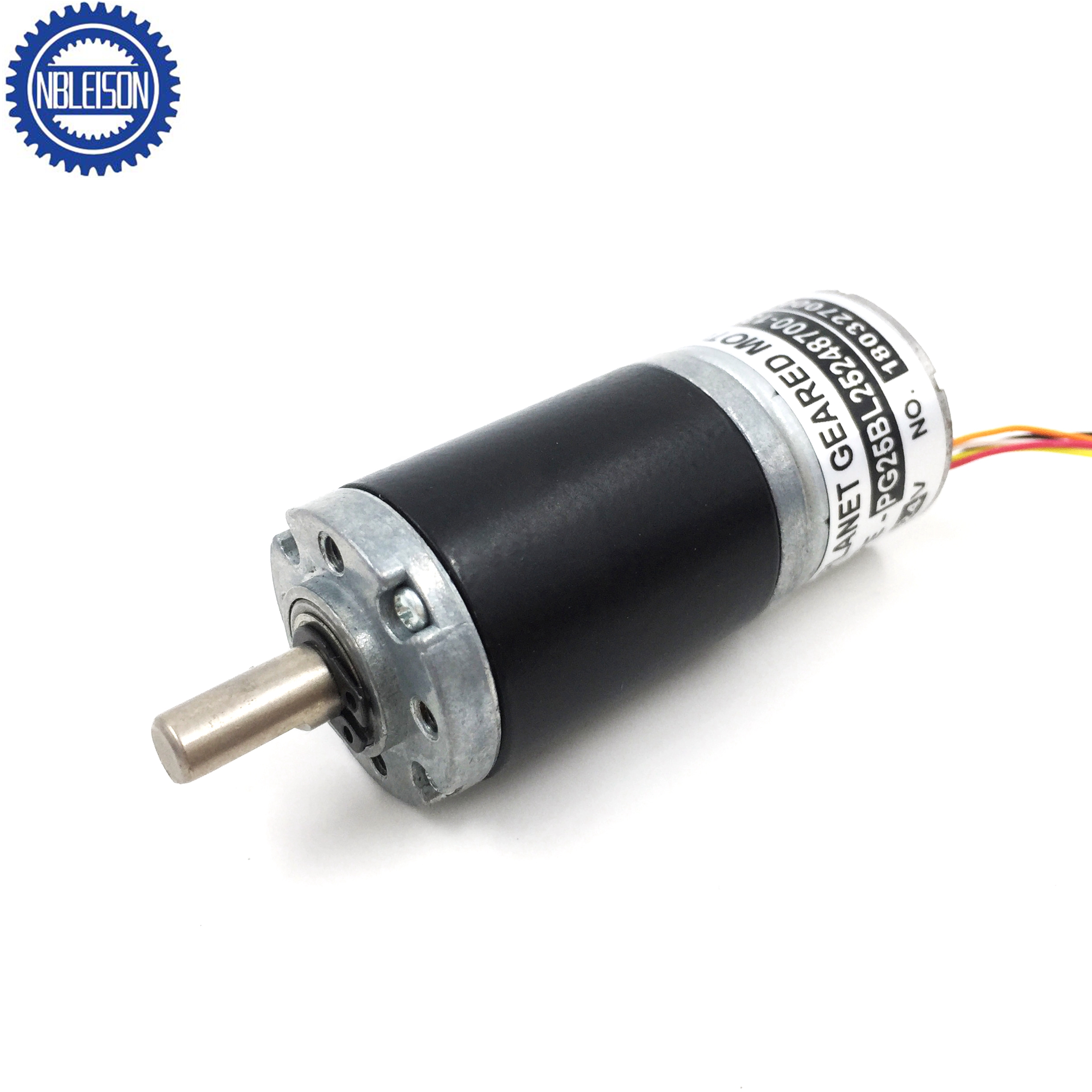

PG25BL25
Leison Motor
Electrical Specifications
Gearbox Data
| Number of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.6, 4.25 | 13, 15.3, 18 | 36, 46.7, 55, 65,|76.8, | 114,130,168,198 234, 276, 326, | 467, 604, 713, 842 994, 1174, 1386, |
| Gearbox length mm | 18.3 | 25.0 | 30.8 | 36.6 | 42.4 |
| Max. running torque | 5.0Kgf-cm | 5.0Kgf-cm | 10.0Kgf-cm | 10.0Kgf-cm | 10.0Kgf-cm |
| Max. Gear breaking torque | 9.0Kgf-cm | 15.0Kgf-cm | 30Kgf-cm | 30Kgf-cm | 30Kgf-cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
How to calculate the motor with gearbox output specs?
1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio
2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency
e.g.:
PG25BL25126200-18K
1. Output Speed(No-load)=6200/18=344RPM
2. Output Torque=20*18*81%=
291.6g.cm≈0.3kg.cm=0.03Nm (Should not be higher than Max. Gear Running Torque)
Motor Data
| Motor name | Rated Volt V | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf-cm | W | gf-cm | mA | ||
| 13H126200 | 12 | ≤150 | 6200 | ≤210 | 4800 | 20 | 0.96 | 118 | 750 |
| 13H248700 | 24 | ≤140 | 8700 | ≤180 | 7000 | 20 | 1.4 | 142 | 680 |
| *Note:It's only typical technical data,special requirement can be customzied. | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
Electrical Specifications
Gearbox Data
| Number of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4 stages reduction | 5 stages reduction |
| Reduction ratio | 3.6, 4.25 | 13, 15.3, 18 | 36, 46.7, 55, 65,|76.8, | 114,130,168,198 234, 276, 326, | 467, 604, 713, 842 994, 1174, 1386, |
| Gearbox length mm | 18.3 | 25.0 | 30.8 | 36.6 | 42.4 |
| Max. running torque | 5.0Kgf-cm | 5.0Kgf-cm | 10.0Kgf-cm | 10.0Kgf-cm | 10.0Kgf-cm |
| Max. Gear breaking torque | 9.0Kgf-cm | 15.0Kgf-cm | 30Kgf-cm | 30Kgf-cm | 30Kgf-cm |
| Gearing efficiency | 90% | 81% | 73% | 65% | 59% |
How to calculate the motor with gearbox output specs?
1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio
2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency
e.g.:
PG25BL25126200-18K
1. Output Speed(No-load)=6200/18=344RPM
2. Output Torque=20*18*81%=291.6g.cm≈0.3kg.cm=0.03Nm (Should not be higher than Max. Gear Running Torque)
Motor Data
| Motor name | Rated Volt V | No load | Load torque | Stall torque | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| mA | r/min | mA | r/min | gf-cm | W | gf-cm | mA | ||
| 13H126200 | 12 | ≤150 | 6200 | ≤210 | 4800 | 20 | 0.96 | 118 | 750 |
| 13H248700 | 24 | ≤140 | 8700 | ≤180 | 7000 | 20 | 1.4 | 142 | 680 |
| *Note:It's only typical technical data,special requirement can be customzied. | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
