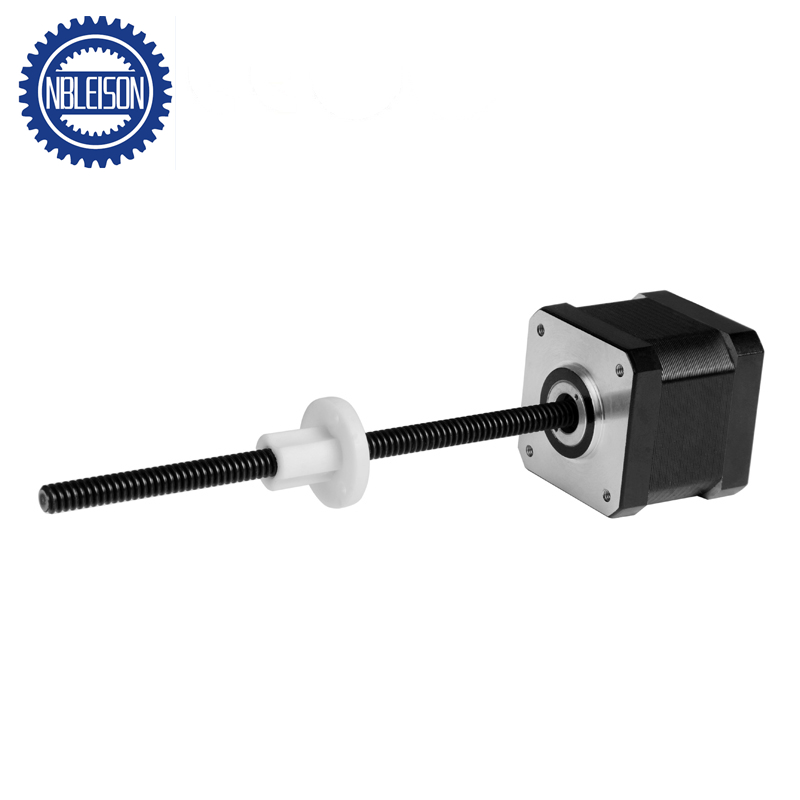

17HS
Leison Motor
Electrical Specifications
Motor Data
| Series Model | Step Angle (°) | Motor Length (mm) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (N.cmMin) | Detent Torque (N.cmMax) | Rotor Inertia (g-cm2) | Lead Wire (No.) | Motor Weight (g) |
| 17HS3401 | 1.8 | 34 | 1.3 | 2.4 | 2.8 | 28 | 1.6 | 34 | 4 | 220 |
| 17HS3410 | 1.8 | 34 | 1.7 | 1.2 | 1.8 | 28 | 1.6 | 34 | 4 | 220 |
| 17HS4401 | 1.8 | 40 | 1.7 | 1.5 | 2.8 | 40 | 2.2 | 54 | 4 | 280 |
| 17HS8401 | 1.8 | 48 | 1.7 | 1.8 | 3.2 | 52 | 2.6 | 68 | 4 | 350 |
| 17HY8403 | 1.8 | 48 | 2.3 | 1.2 | 1.6 | 46 | 2.6 | 68 | 4 | 350 |
| * Note: We can also customize according to customer's requirements. | ||||||||||
Lead Screw Data
| Specification | Screw Diameter | Screw Length | Screw Lead |
| 1 | Tr6.35 | 0.0079 | 1.58 |
| 2 | Tr8 | 0.0158 | 3.17 |
| 0.0315 | 6.35 | ||
| 0.04 | 8 |
Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
