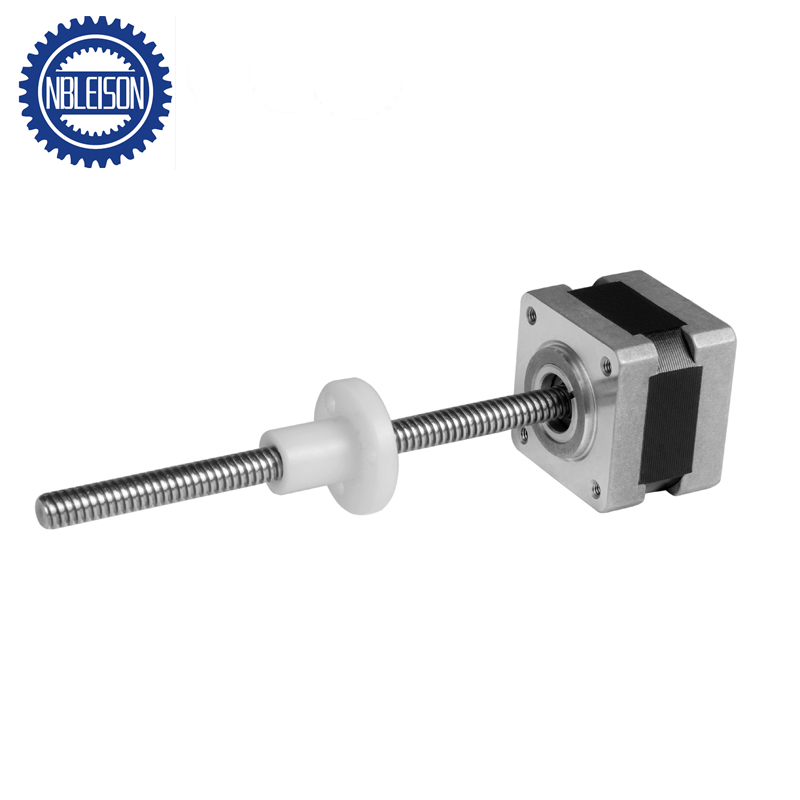

14HY
Leison Motor
Electrical Specifications
Motor Data
| Series Model | Step Angle (°) | Motor Length (mm) | Rated Current (A) | Phase Resistance (Ω) | Phase Induetance (mH) | Holding Torque (N.cmMin) | Detent Torque (N.cmMax) | Rotor Inertia (gem2) | Lead Wire (No.) | Motor Weight (g) |
| 14HY2420 | 1.8 | 28 | 0.46 | 20 | 15 | 12 | 0.8 | 11 | 4 | 120 |
| 14HY2402 | 1.8 | 28 | 0.8 | 5.5 | 7.0 | 12 | 0.8 | 11 | 4 | 120 |
| 14HY3401 | 1.8 | 34 | 0.42 | 25 | 40 | 18 | 1,0 | 13 | 4 | 160 |
| 14HY3402 | 1.8 | 34 | 0.8 | 6.5 | 12 | 18 | 1.0 | 13 | 4 | 160 |
| * Note: We can also customize according to customer's requirements. | ||||||||||
Lead Screw Data
| Specification | Screw Diameter | Step Length | Screw Lead |
| 1 | Tr6.35 | 0.0079 | 1.58 |
| 2 | Tr8 | 0.0158 | 3.17 |
| 0.0315 | 6.35 | ||
| 0.04 | 8 |
Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
Electrical Specifications
Motor Data
| Series Model | Step Angle (°) | Motor Length (mm) | Rated Current (A) | Phase Resistance (Ω) | Phase Induetance (mH) | Holding Torque (N.cmMin) | Detent Torque (N.cmMax) | Rotor Inertia (gem2) | Lead Wire (No.) | Motor Weight (g) |
| 14HY2420 | 1.8 | 28 | 0.46 | 20 | 15 | 12 | 0.8 | 11 | 4 | 120 |
| 14HY2402 | 1.8 | 28 | 0.8 | 5.5 | 7.0 | 12 | 0.8 | 11 | 4 | 120 |
| 14HY3401 | 1.8 | 34 | 0.42 | 25 | 40 | 18 | 1,0 | 13 | 4 | 160 |
| 14HY3402 | 1.8 | 34 | 0.8 | 6.5 | 12 | 18 | 1.0 | 13 | 4 | 160 |
| * Note: We can also customize according to customer's requirements. | ||||||||||
Lead Screw Data
| Specification | Screw Diameter | Step Length | Screw Lead |
| 1 | Tr6.35 | 0.0079 | 1.58 |
| 2 | Tr8 | 0.0158 | 3.17 |
| 0.0315 | 6.35 | ||
| 0.04 | 8 |
Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
