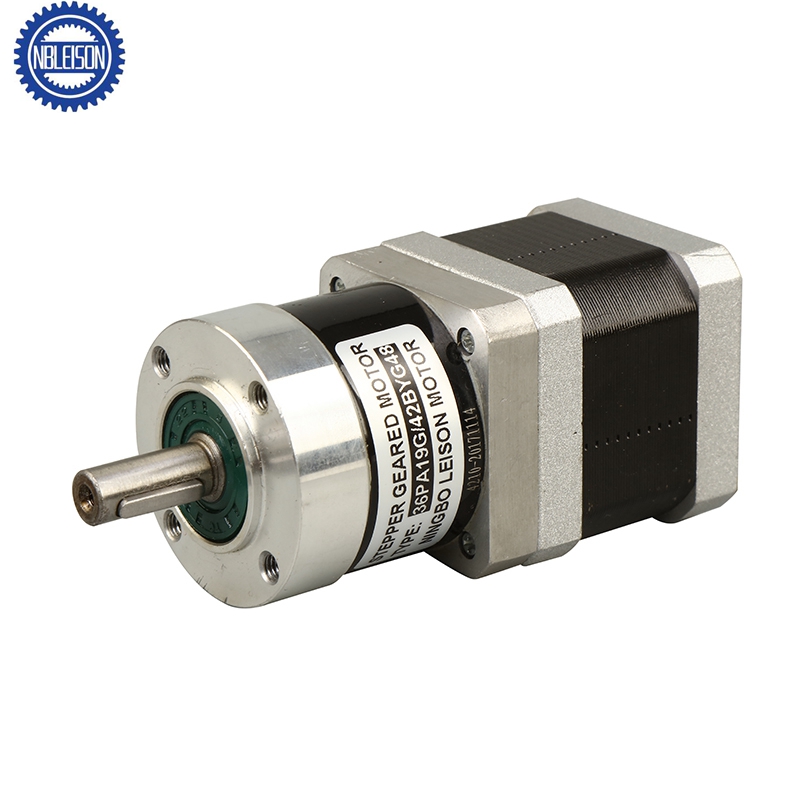

36PA/42BYG
Leison Motor
Electrical Specifications
Motor Data
| Model | Step Angle | Length (Ld) | Phase Voltage | Phase Current | Phase Resistance | Phase Inductance | Holding Torque | Lead Wire |
| (°) | mm | V | A | Ω | mH | g.cm | # | |
| 42BYGH34(M)-040-4A/B | 1.8/0.9 | 34 | 12 | 0.40 | 30 | 37 | 2200 | 4 |
| 42BYGH40(M)-040-6A/B | 1.8/0.9 | 40 | 12 | 0.40 | 30 | 21 | 2570 | 6 |
| 42BYGH40(M)-160-4A/B | 1.8/0.9 | 40 | 2.78 | 1.60 | 1.73 | 3.2 | 3600 | 4 |
| 42BYGH48(M)-040-6A/B | 1.8/0.9 | 48 | 12 | 0.40 | 30 | 25 | 3200 | 6 |
| 42BYGH48(M)-120-4A/B | 1.8/0.9 | 48 | 3.6 | 1.20 | 3 | 5 | 4500 | 4 |
| *Note:Its only typical technical data,special requirement can be customzied. | ||||||||
Gearbox Data
| Reduction Ratio | X:1 | 4 | 5 | 13 | 19 | 27 | 51 | 71 | 100 | 139 |
| Exact Reduction Ration | X:1 | 3.71 | 5.18 | 13.73 | 19.20 | 26.85 | 51.89 | 71.08 | 99.51 | 136.15 |
| Number of gear trains | # | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Max Permissible Torque | kg. cm | 20 | 20 | 30 | 30 | 30 | 40 | 40 | 40 | 40 |
| Moment Permissible Torque | kg. cm | 40 | 40 | 50 | 50 | 50 | 60 | 60 | 60 | 60 |
| Gear Box Length | mm | 30 | 30 | 38 | 38 | 38 | 46 | 46 | 46 | 46 |
Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
Electrical Specifications
Motor Data
| Model | Step Angle | Length (Ld) | Phase Voltage | Phase Current | Phase Resistance | Phase Inductance | Holding Torque | Lead Wire |
| (°) | mm | V | A | Ω | mH | g.cm | # | |
| 42BYGH34(M)-040-4A/B | 1.8/0.9 | 34 | 12 | 0.40 | 30 | 37 | 2200 | 4 |
| 42BYGH40(M)-040-6A/B | 1.8/0.9 | 40 | 12 | 0.40 | 30 | 21 | 2570 | 6 |
| 42BYGH40(M)-160-4A/B | 1.8/0.9 | 40 | 2.78 | 1.60 | 1.73 | 3.2 | 3600 | 4 |
| 42BYGH48(M)-040-6A/B | 1.8/0.9 | 48 | 12 | 0.40 | 30 | 25 | 3200 | 6 |
| 42BYGH48(M)-120-4A/B | 1.8/0.9 | 48 | 3.6 | 1.20 | 3 | 5 | 4500 | 4 |
| *Note:Its only typical technical data,special requirement can be customzied. | ||||||||
Gearbox Data
| Reduction Ratio | X:1 | 4 | 5 | 13 | 19 | 27 | 51 | 71 | 100 | 139 |
| Exact Reduction Ration | X:1 | 3.71 | 5.18 | 13.73 | 19.20 | 26.85 | 51.89 | 71.08 | 99.51 | 136.15 |
| Number of gear trains | # | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Max Permissible Torque | kg. cm | 20 | 20 | 30 | 30 | 30 | 40 | 40 | 40 | 40 |
| Moment Permissible Torque | kg. cm | 40 | 40 | 50 | 50 | 50 | 60 | 60 | 60 | 60 |
| Gear Box Length | mm | 30 | 30 | 38 | 38 | 38 | 46 | 46 | 46 | 46 |
Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
