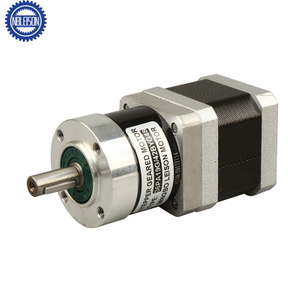

32PA/35BYG
Leison Motor
Electrical Specifications
Motor Data
| Model | Step Angle | Lenqth (Ld) | Phase Voltage | Phase Current | Phase Resistance | Phase Inductance | Holding Torque | Lead Wire |
| mm | V | A | Ω | mH | g-cm | |||
| 35BYGH20-073-4A/B | 1.8 | 20 | 6.57 | 0.73 | 9 | 4 | 600 | 4 |
| 35BYGH20-040-4A/B | 1.8 | 20 | 10.8 | 0.40 | 27 | 17 | 600 | 4 |
| 35BYGH26-075-4A/B | 1.8 | 26 | 3.23 | 0.75 | 4.3 | 4 | 700 | 4 |
| 35BYGH28-058-4A/B | 1.8 | 28 | 7 | 0.58 | 13 | 9.5 | 10000 | 4 |
| 35BYGH28-100-4A/B | 1.8 | 28 | 3.50 | 1.00 | 3.5 | 3.5 | 1000 | 4 |
| 35BYGH34-050-4A/B | 1.8 | 34 | 11 | 0.50 | 22 | 12 | 1000 | 6 |
| *Note:It's only typical technical data,special requirement can be customzied. | ||||||||
Gearbox Data
| Reduction Ratio(X:1) | 4 | 5 | 13 | 19 | 27 | 51 | 71 | 100 | 139 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Rated output torque(kg.cm) | 20 | 20 | 30 | 30 | 30 | 40 | 40 | 40 | 40 |
| Gear Box Length(mm) | 28 | 28 | 36 | 36 | 36 | 44 | 44 | 44 | 44 |
Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
