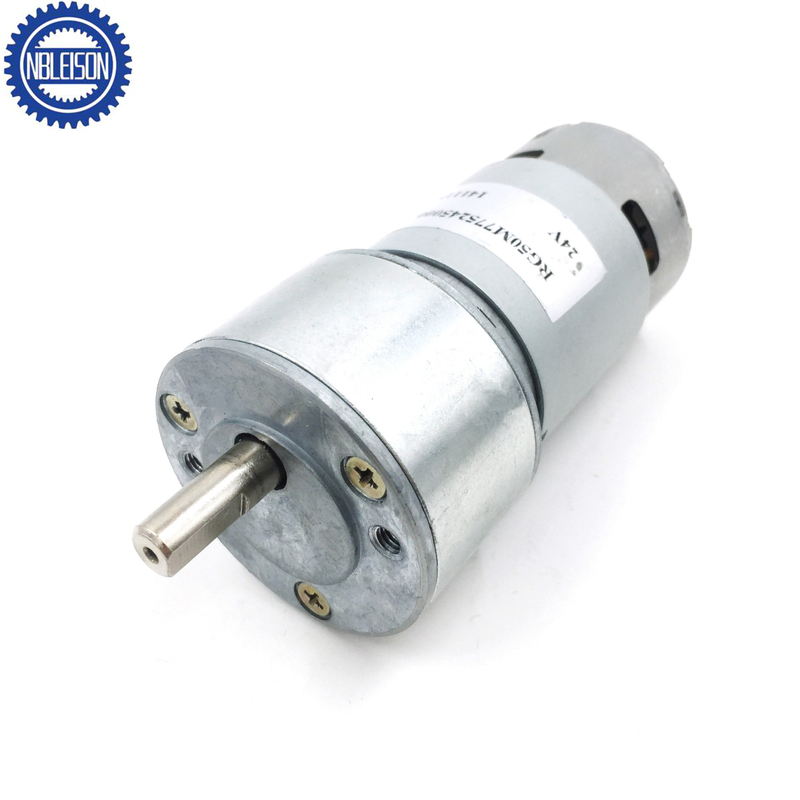

RG50M775
Leison Motor
Electrical Specifications
LS-RG50M775.pdf
Motor Data
| Motor Model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| V | mA | r/min | mA | r/min | gf • cm | W | gf • cm | mA | |
| RG50M775123000 | 12 | ≤420 | 3000 | ≤1300 | 2430 | 408 | 10.4 | 2484 | 6.7 |
| RG50M775124500 | 12 | ≤750 | 4500 | ≤2100 | 3710 | 476 | 17.6 | 2714 | 10.4 |
| RG50M775126000 | 12 | ≤1300 | 6000 | ≤3500 | 5195 | 478 | 25.5 | 3129 | 18.6 |
| RG50M775243000 | 24 | ≤210 | 3000 | ≤600 | 2590 | 364 | 9.87 | 2050 | 3.2 |
| RG50M775244500 | 24 | ≤480 | 4500 | ≤1300 | 3850 | 482 | 18.5 | 3335 | 5.3 |
| RG50M775246000 | 24 | ≤630 | 6000 | ≤2100 | 5233 | 574 | 30.8 | 4565 | 12.1 |
| * Note: It’s only typical technical data, special requirement can be customized. | |||||||||
Gearbox Data
| Numberof stages | 2/3 stages reduction | 4/5 stages reduction | 6/7 stages reduction |
| Reduction ratio | 7.5、13.8； 30、55 | 120、220; 480、883 | 1920、3532 |
| Gearbox length “L” mm | 26.4 | 30.2 33.9 | 37.7 |
| Max. Running torque | 10kgf.cm | 30kgf.cm | 30kgf.cm |
| Max. Gear breaking torque | 30kgf.cm | 75kgf.cm | 75kgf.cm |
| Max.Gearing efficiency | 81%； 73% | 65%； 59% | 53% |
| Other reduction ratio please telephone or e-mail to our engineering department. | |||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
