RG50M555
Leison Motor
Electrical Specifications
Motor Data
| Motor Model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
| V | mA | r/min | mA | r/min | gf • cm | W | gf • cm | mA | |
| RG50M555123000 | 12 | ≤420 | 3000 | ≤800 | 2200 | 150 | 3.3 | 600 | 3000 |
| RG50M555124500 | 12 | ≤220 | 4500 | ≤1200 | 3300 | 220 | 7.2 | 880 | 4800 |
| RG50M555126000 | 12 | ≤350 | 6000 | ≤2000 | 4500 | 300 | 13.5 | 1200 | 6000 |
| RG50M555243000 | 24 | ≤70 | 3000 | ≤400 | 2200 | 150 | 3.3 | 600 | 1600 |
| RG50M555244500 | 24 | ≤110 | 4500 | ≤600 | 3300 | 220 | 7.2 | 880 | 3000 |
| RG50M555246000 | 24 | ≤180 | 6000 | ≤1000 | 4500 | 300 | 13.5 | 1200 | 4000 |
| * Note: It’s only typical technical data, special requirement can be customized. | |||||||||
Gearbox Data
| Numberof stages | 2/3 stages reduction | 4/5 stages reduction | 6 stages reduction |
| Reduction ratio | 7.2、13.3； 29、53 | 116、213; 464、853 | 1856、3415 |
| Gearbox length “L” mm | 26.4 | 30.2 33.9 | 37.7 |
| Max. Running torque | 10kgf.cm | 30kgf.cm | 30kgf.cm |
| Max. Gear breaking torque | 30kgf.cm | 75kgf.cm | 75kgf.cm |
| Max.Gearing efficiency | 81%； 73% | 65%； 59% | 53% |
| Other reduction ratio please telephone or e-mail to our engineering department. | |||

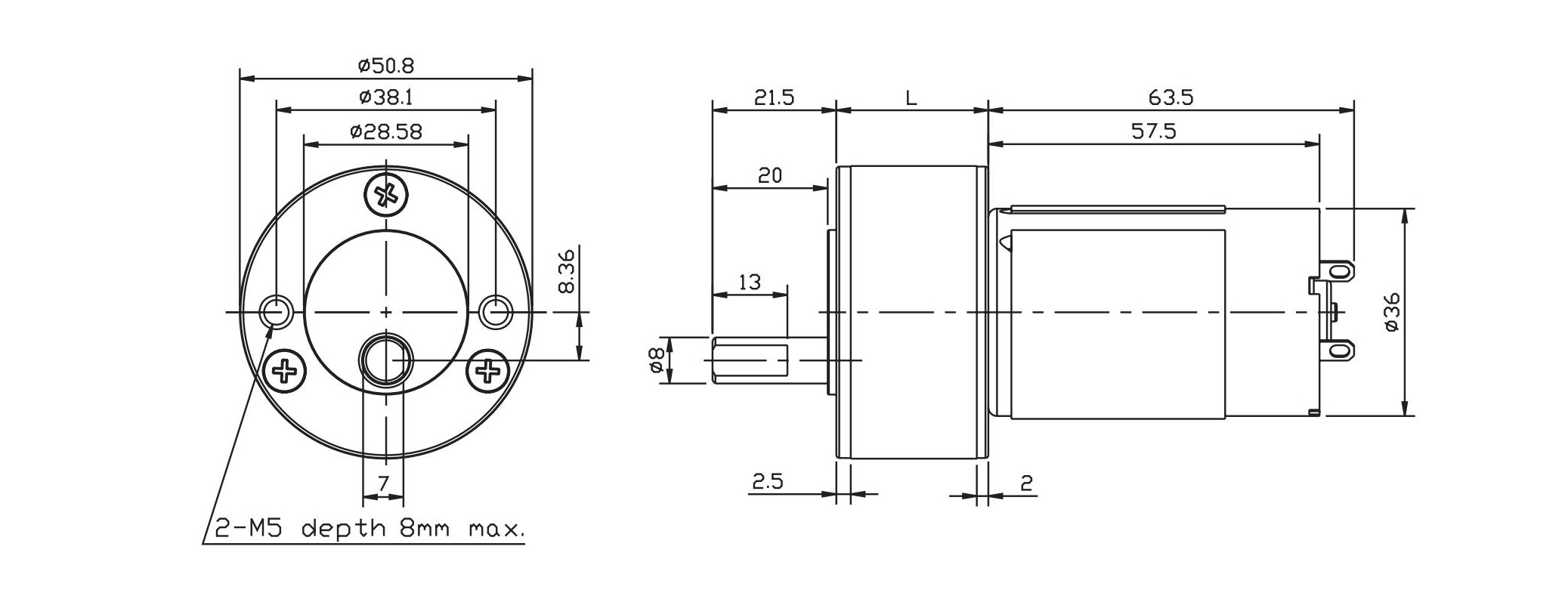

Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
