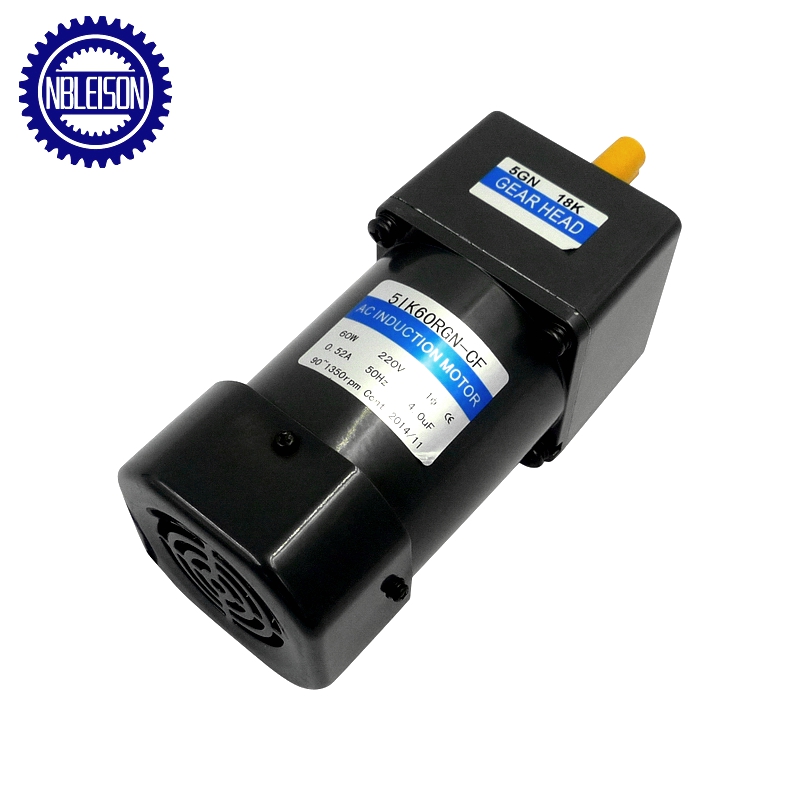

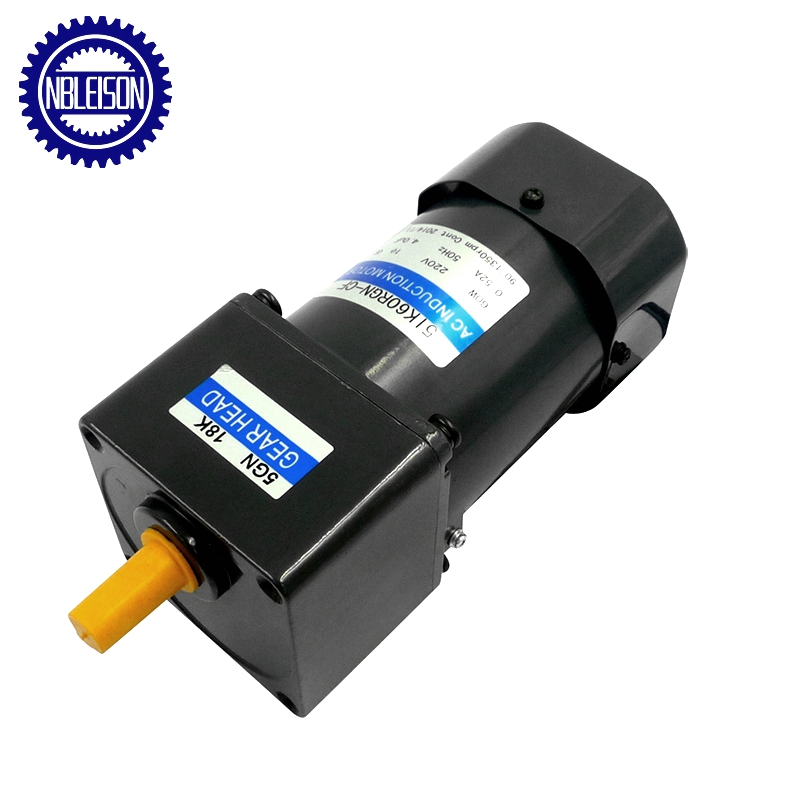

60W Ac Induction Motor

Features:
1. Motor type: AC induction motor
2 .Gearbox: 90*90mm Spur gearbox
3. Voltage: 110V, 220V, 230V, 380V AC
4. Speed: 7.5RPM-600RPM
5. Torque: 9kg.cm-100kg.cm
6. Shaft dia: 12mm
7. Direction: CW /CCW
8. Typical application: Vending machine, Robot, Medical device, Sliding gate, Packing machine, Labeling machine, Winding machine, Juice agitator, Washing machine, etc.
9. Customized service: Motor's performance parameter, Shaft type, Wires and connectors, Encoders

Availability:

Quantity:



Inquire Add to Basket

Model:
5IK60
Brand:
Leison Motor

Product Description

Electrical Specifications

不用缩小的手指 LS-5IK60-5GN.pdf

Motor Data

Model of Motor		Output	Voltage	Frequency	Poles	Duty	Rated				Stall Torque		Capacitor/Ve
Model of Motor		Output	Voltage	Frequency	Poles		Speed	Current	Torque
Motor	Motor with gear shaft	W	V	Hz	P		Speed	Current	Torque
Motor	Motor with gear shaft	W	V	Hz	P		r/min	A	N.m	kgf.cm	N.m	kgf.cm	μF/VAC
5IK60A-AF	5IK60GN-AF	60	1ph110	50	4	CONT	1350	0.98	0.44	4.40	0.38	3.75	15.0/250
5IK60A-CF	5IK60GN-CF	60	1ph220	50	4	CONT	1350	0.52	0.44	4.40	0.40	4.00	4.0/450
5IK60A-SF	5IK60GN-SF	60	3ph220	50	4	CONT	1300	0.49	0.46	4.55	1.70	17.0	/
5IK60A-S3F	5IK60GN-S3F	60	3ph380	50	4	CONT	1300	0.28	0.46	4.55	1.70	17.0	/
5IK60A-DF		60	1ph220	50	2	CONT	2700	0.56	0.21	2.10	0.25	2.50	4.0/450
* Note: It’s only typical technical data, special requirement can be customized.

Gearbox Data

Frequency	Reduction Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
50Hz	Output Shaft Speed	r/min	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12	10	8	7.5
	Allowable Torque	N.m	1.03	1.24	1.72	2.6	2.58	3.10	3.10	3.88	4.65	5.38	5.60	7.01	8.41	9.80	9.80	9.80	9.80	9.80	9.80	9.80	9.80	9.80	9.80	9.80
	Allowable Torque	kgf.cm	10.5	12.7	17.6	21.0	26.3	31.6	31.6	39.6	47.4	54.9	57.1	71.6	85.8	100	100	100	100	100	100	100	100	100	100	100
60Hz	Output Shaft Speed	r/min	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
	Allowable Torque	N.m	0.9	1.08	1.50	1.80	2.23	2.70	2.70	3.38	4.05	4.88	4.88	6.10	7.33	8.97	9.80	9.80	9.80	9.80	9.80	9.80	9.80	9.80	9.80	9.80
	Allowable Torque	kgf.cm	9.18	11.0	15.3	18.4	23.0	27.6	27.6	34.5	41.3	49.5	49.5	62.2	74.7	90.0	100	100	100	100	100	100	100	100	100	100

	Reduction Ratio	L(mm)	W(kg)
Gearbox	5GN3K-GN18K	42	0.73
	5GN20K-GN36K	60	1.03
	5GN40K-GN200K	60	1.13
Motor			2.40

Capacitor Data

Capacity μF Allowable Deviatio 5%	Voltage	L±1	W±1	H±1	Type
Capacity μF Allowable Deviatio 5%	V	mm	mm	mm	Type
4.0	450	47	22	34	Down-lead
15.0	250	57	32	46	Down-lead

Mechanical Dimensions

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
