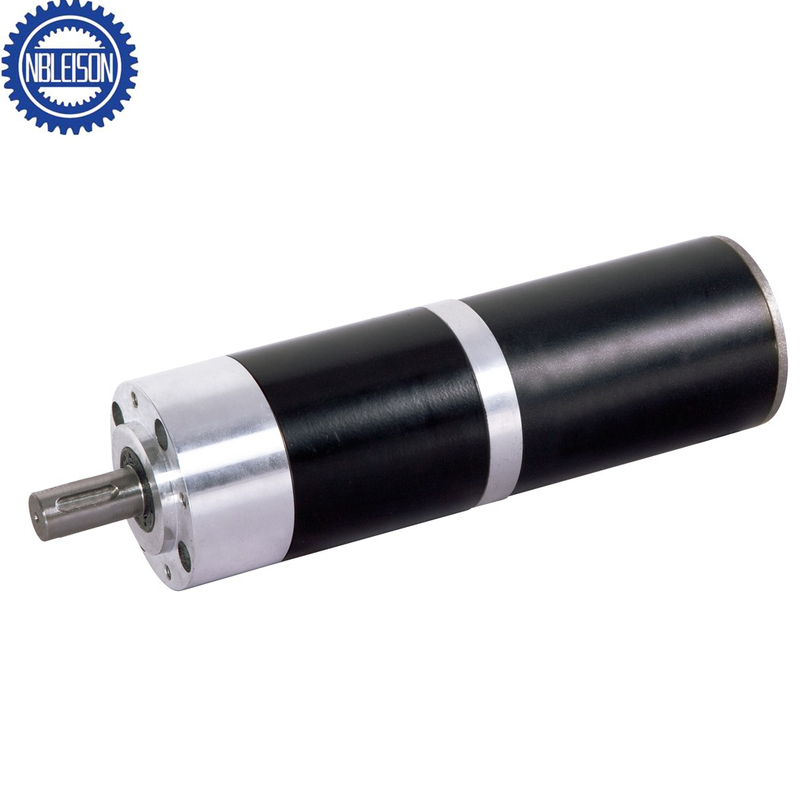

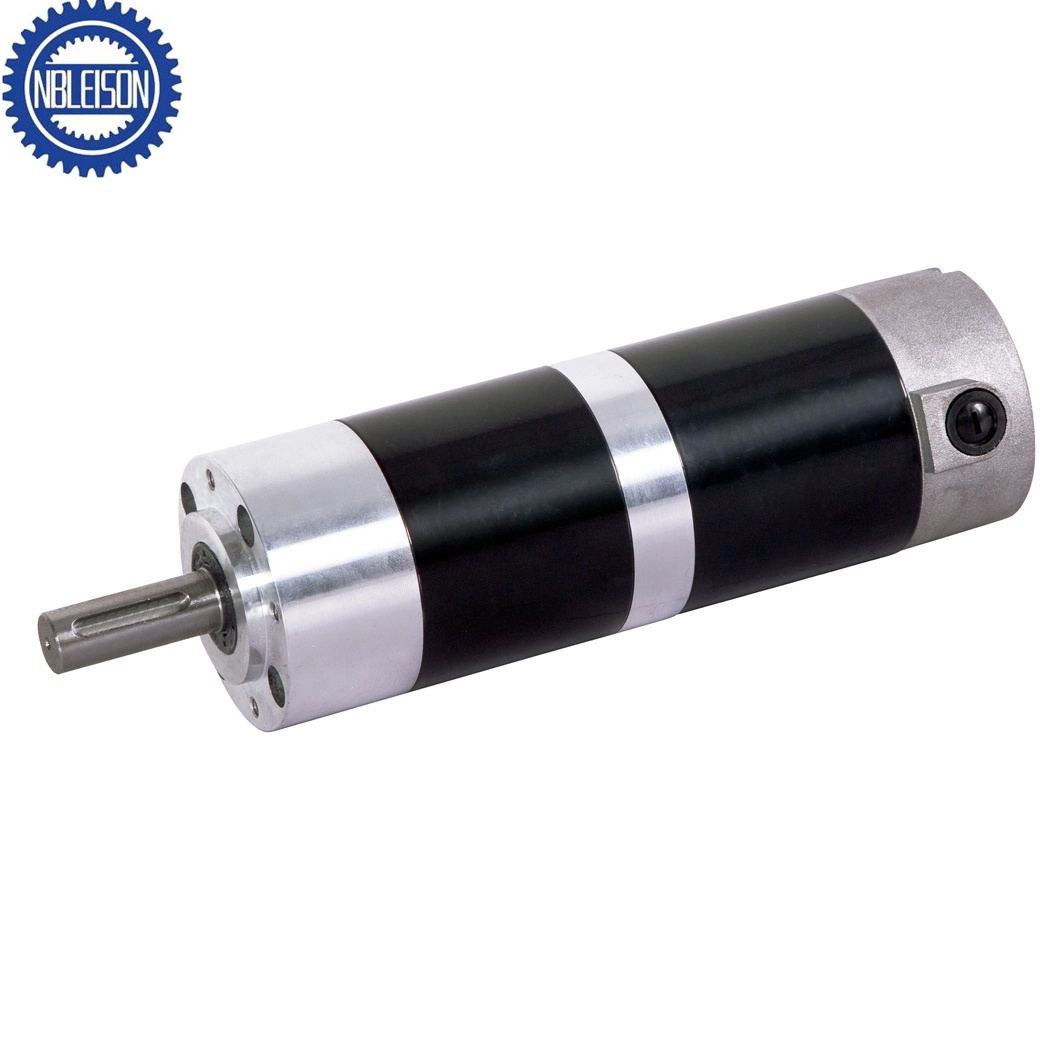

PG82-80ZY115 Dc Planetary Gear Motor

Features:
1. Motor type: permanent magnet DC motor
2 .Gearbox: planetary gearbox
3. Voltage: 12VDC, 24VDC
4. Speed: 6-750rpm
5. Torque: 1.6-105N.m
6. Shaft dia: 19mm
7. Direction: CW/ CCW
8. Gear material: steel/powdered/POM
9. Housing material: steel
10. Typical application: electric curtain, robotic lawn mower, robotic arm
11. Customized service: parameter, shaft type, wires and connectors, encoders
Availability:
Quantity:
  • PG82-80ZY115

  • Leison Motor

Electrical Specifications


不用缩小的手指PG82-80ZY115.pdf


PG82-80ZY115_page-0001

*Note:It's only typical technical data,special requirement can be customzied.
