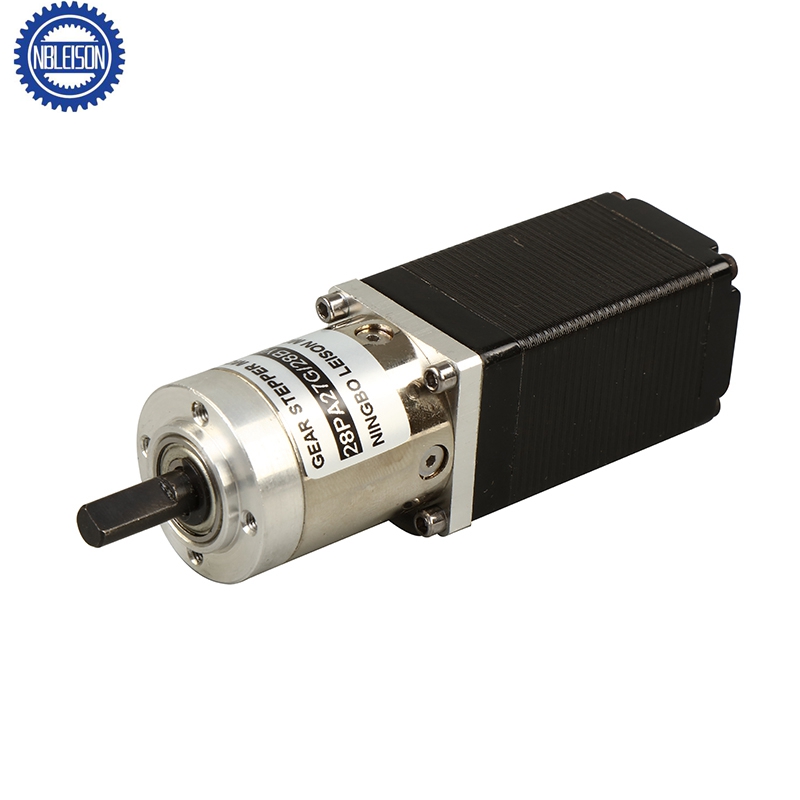

28PA/28BYG
Leison Motor
Electrical Specifications
Motor Data
| Model | Step Angle | Lenqth (Ld) | Phase Voltage | Phase Current | Phase Resistance | Phase Inductance | Holding Torque | Lead Wire |
| mm | V | A | Ω | mH | g-cm | |||
| 28BYGH32-067-4A/B | 1.8 | 32 | 3.51 | 0.67 | 5.6 | 3.4 | 600 | 4 |
| 28BYGH32-095-6A/B | 1.8 | 32 | 2.66 | 0.95 | 2.8 | 0.8 | 430 | 6 |
| 28BYGH45-067-4A/B | 1.8 | 45 | 4.56 | 0.67 | 6.8 | 4.9 | 950 | 4 |
| 28BYGH45-095-6A/B | 1.8 | 45 | 3.22 | 0.95 | 3.4 | 1.2 | 750 | 6 |
| 28BYGH51-067-4A/B | 1.8 | 51 | 6.20 | 0.67 | 9.2 | 7.2 | 1200 | 4 |
| 28BYGH51-095-6A/B | 1.8 | 51 | 4.35 | 0.95 | 4.6 | 1.8 | 900 | 6 |
| *Note:It's only typical technical data,special requirement can be customzied. | ||||||||
Gearbox Data
| Reduction Ratio | X:1 | 4 | 5 | 13 | 19 | 27 | 51 | 71 | 100 | 139 |
| Exact Reduction Ration | X:1 | 3.71 | 5.18 | 13.73 | 19.20 | 26.85 | 51.89 | 71.08 | 99.51 | 136.15 |
| Number of gear trains | # | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Max Permissible Torque | kg.cm | 20 | 20 | 30 | 30 | 30 | 40 | 40 | 40 | 40 |
| Moment Permissible Torque | kg.cm | 40 | 40 | 50 | 50 | 50 | 60 | 60 | 60 | 60 |
| Gear Box Length | mm | 28 | 28 | 36 | 36 | 36 | 44 | 44 | 44 | 44 |
Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
