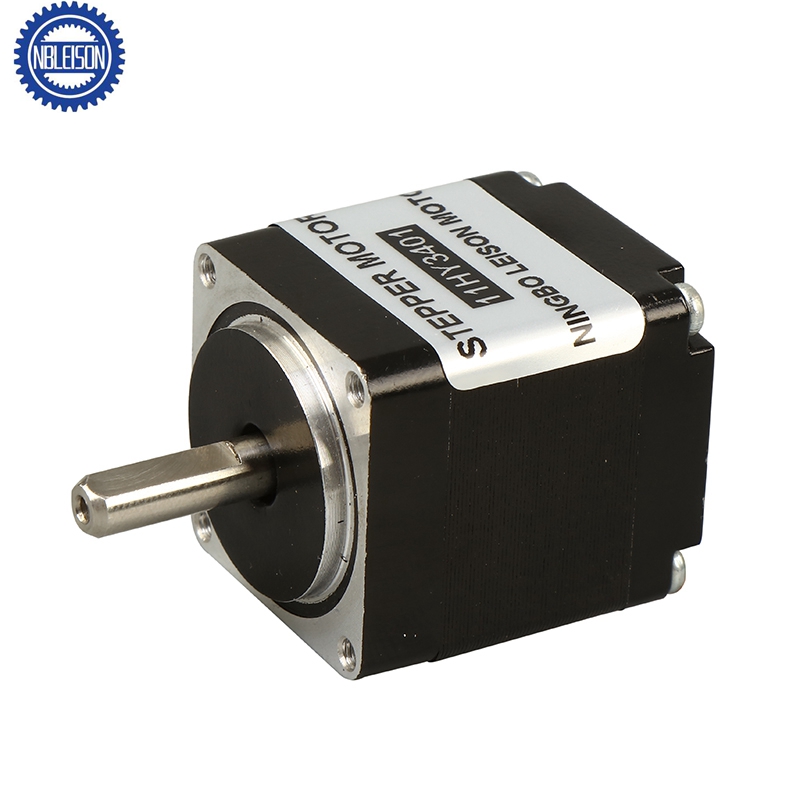

11HY
Leison Motor
Electrical Specifications
Motor Data
| Model | Step Angle (°) | Motor Length (mm) | Rated Current(A) | Phase Resistance(Ω) | Phase Inductance(mH) | Holding Torque (N.cmMin) | Detent Torque (N.cmMax) | Rotor Inertia (g.cm2) | Lead Wire (No.) | Motor Weight(g) |
| 11HY2401 | 1.8 | 28 | 0.6 | 4.2 | 2.2 | 4.5 | 0.3 | 6 | 4 | 105 |
| 11HY2402 | 1.8 | 28 | 0.35 | 12 | 5.8 | 4.5 | 0.3 | 6 | 4 | 105 |
| 11HY3401 | 1.8 | 33 | 0.6 | 5.5 | 3.2 | 6.0 | 0.4 | 8 | 4 | 110 |
| 11HY3402 | 1.8 | 33 | 0.35 | 15 | 9.2 | 6.0 | 0.4 | 8 | 4 | 110 |
| 11HY4401 | 1.8 | 41 | 0.6 | 7.0 | 6.0 | 6.0 | 0.5 | 11 | 4 | 140 |
| 11HY4402 | 1.8 | 41 | 0.35 | 20 | 15 | 6.0 | 0.5 | 11 | 4 | 140 |
| 11HY5401 | 1.8 | 50 | 0.6 | 9.0 | 7.2 | 10 | 0.8 | 13 | 4 | 180 |
| 11HY5402 | 1.8 | 50 | 0.35 | 24 | 18.5 | 10 | 0.8 | 13 | 4 | 180 |
| Note: It's only typical technical data,special requirement can be customized. | ||||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
Electrical Specifications
Motor Data
| Model | Step Angle (°) | Motor Length (mm) | Rated Current(A) | Phase Resistance(Ω) | Phase Inductance(mH) | Holding Torque (N.cmMin) | Detent Torque (N.cmMax) | Rotor Inertia (g.cm2) | Lead Wire (No.) | Motor Weight(g) |
| 11HY2401 | 1.8 | 28 | 0.6 | 4.2 | 2.2 | 4.5 | 0.3 | 6 | 4 | 105 |
| 11HY2402 | 1.8 | 28 | 0.35 | 12 | 5.8 | 4.5 | 0.3 | 6 | 4 | 105 |
| 11HY3401 | 1.8 | 33 | 0.6 | 5.5 | 3.2 | 6.0 | 0.4 | 8 | 4 | 110 |
| 11HY3402 | 1.8 | 33 | 0.35 | 15 | 9.2 | 6.0 | 0.4 | 8 | 4 | 110 |
| 11HY4401 | 1.8 | 41 | 0.6 | 7.0 | 6.0 | 6.0 | 0.5 | 11 | 4 | 140 |
| 11HY4402 | 1.8 | 41 | 0.35 | 20 | 15 | 6.0 | 0.5 | 11 | 4 | 140 |
| 11HY5401 | 1.8 | 50 | 0.6 | 9.0 | 7.2 | 10 | 0.8 | 13 | 4 | 180 |
| 11HY5402 | 1.8 | 50 | 0.35 | 24 | 18.5 | 10 | 0.8 | 13 | 4 | 180 |
| Note: It's only typical technical data,special requirement can be customized. | ||||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
