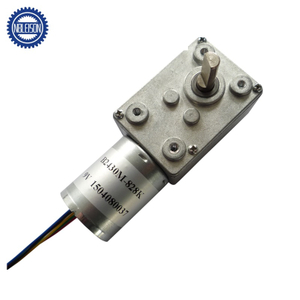

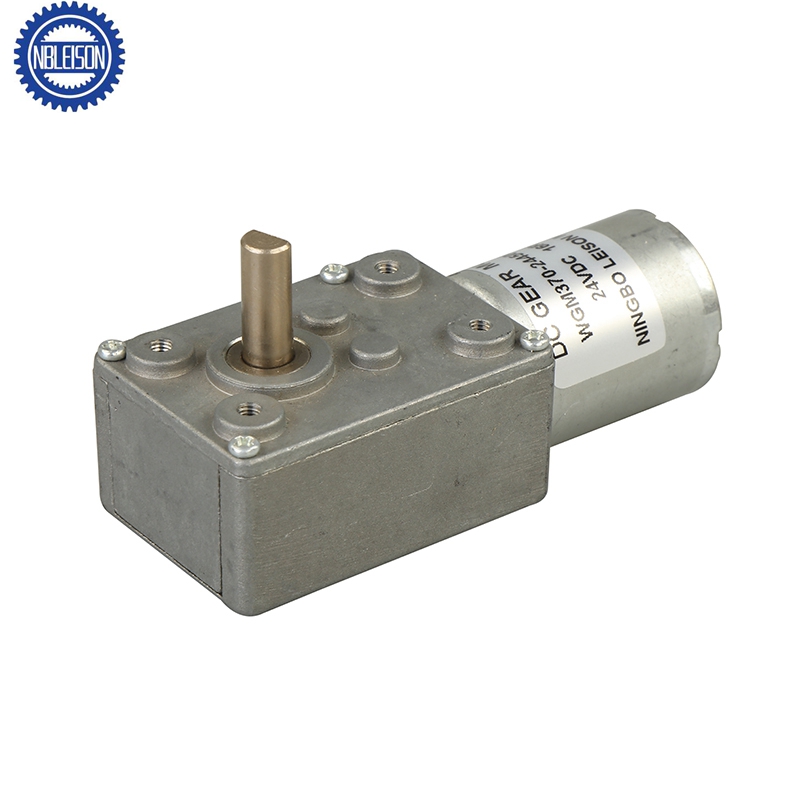

LS-WGM370 Dc Worm Gear Motor

Features:
1. Motor type: Brushed DC motor
2 .Gearbox :37mm Spur gearbox
3. Voltage: 3V, 4.5V, 5V, 6V, 7.2V, 9V,12V, 18V, 24V DC
4. Speed: 1RPM-2500RPM
5. Torque: 0.2kg.cm-15kg.cm
6. Shaft dia: 6mm
7. Direction: CW /CCW
8. Typical application: Electric lock system, Valve, Vending machine, Safe box dc motor, Robotics, Power tools, Sliding gate, Sloar system dc motors
9. Customized service: Motor's performance parameter, Shaft type, Wires and connectors, Encoders

Availability:

Quantity:


Inquire Add to Basket

Model: LS-WGM370
Brand: Leison Motor

Product Description

Electrical Specifications

LS-WGM370.pdf

Motor Data

Motor Model	Rated Volt.	No load		Load				Stall
	Rated Volt.	Current	Speed	Current	Speed	Torque	Output power	Torque	Current
	V	mA	r/min	mA	r/min	gf • cm	W	gf • cm	mA
WGM370063000	6	≤15	3000	≤100	2200	15	0.33	60	600
WGM370064500	6	≤25	4500	≤270	3300	24	0.8	90	1200
WGM370066000	6	≤40	6000	≤500	4500	30	1.4	120	1900
WGM370123000	12	≤15	3000	≤55	2200	15	0.33	60	280
WGM370126000	12	≤20	6000	≤250	4500	30	1.4	120	1200
WGM370246000	24	≤30	6000	≤130	4500	30	1.4	120	550
* Note: It’s only typical technical data, special requirement can be customized.

How to calculate the motor with gearbox output specs?

1. Output Speed(No-load)=Motor Speed(No-load)/Reduction Ratio

2. Output Torque=Motor Torque*Reduction Ratio*Gearbox Efficiency

e.g.:

WGM370126000-123K
1. Output Speed(No-load)= 6000/ 123≈49RPM

2. Output Torque= 30* 123* 73%=2693.7gf.cm≈2.69kgf.cm≈0.26N.m

Gearbox Data

Numberof stages	3 stages reduction	4 stages reduction	5 stages reduction
Reduction ratio	123、 276	552、828	1656、2484
Max. Running torque	2kgf.cm	5kgf.cm	10kgf. cm
Max. Gear breaking torque	6kgf.cm	15kgf.cm	30kgf.cm
Max.Gearing efficiency	73%	65%	59%
Other reduction ratio please telephone or e-mail to our engineering department.
