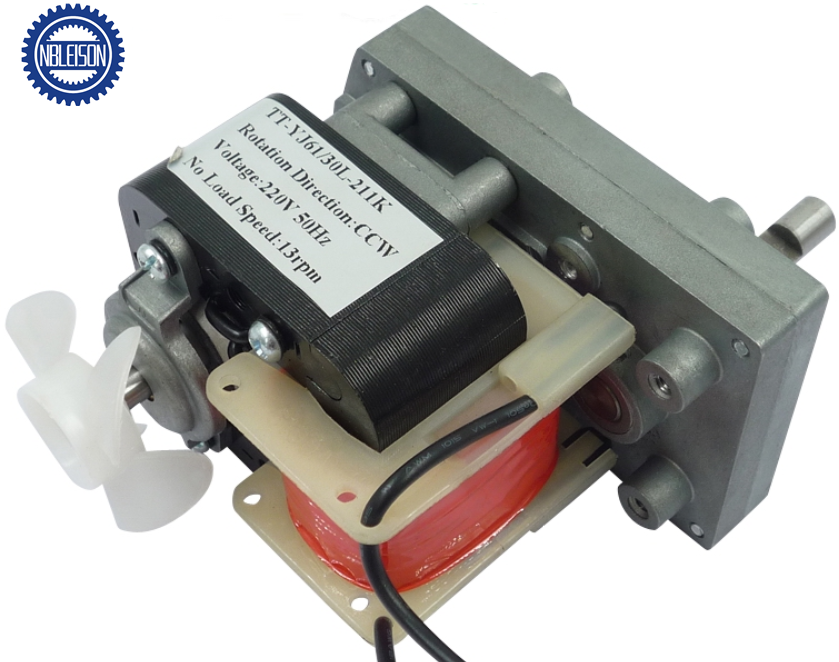

LS-TT-YJ61 Shade Pole Motor

Features:
1. Motor type: Shade pole motor
2 .Gearbox: 95*60*16mm flat spur gearbox
3. Voltage: 110V, 220V, 230V 380V AC
4. Speed: 2RPM-100RPM
5. Torque: 1kg.cm-80kg.cm
6. Shaft dia: 8mm D
7. Direction: CW /CCW
8. Typical application: Fireplace, Oven, Pellet stove, Medical device, Sliding gate, Packing machine, Labeling machine, Winding machine, Juice agitator, Washing machine, Barbecue, etc.
9. Customized service: Motor's performance parameter, Shaft type, Wires and connectors, Encoders

Quantity:
  • LS-TT-YJ61
  • Leison Motor

Electrical Specifications

不用缩小的手指LS-TT-YJ61.pdf


Motor with Gearbox Data

Reduction ratio   1
36
  1
66
  1
94
  1
149
  1
196
  1
211
  1
277
  1
394
  1
624
  1
830
  1
1166
Number of gear stages 3 4 5
Rated speed(rpm) at 60Hz 77.7 42.4 29.7 18.7 14.2 13.2 10.1 7.1 4.4 3.3 2.4
TT-YJ61-10  L=10.5 (Kgf.cm)
Rated torque
1.57 2.89 4.12 5.81 7.64 8.23 10.8 13.9 22.1 29.4 41.3
TT-YJ61-12  L=12 (Kgf.cm)
Rated torque
2.10 3.85 5.49 7.75 10.2 11.0 14.4 18.6 29.4 39.2 55.0
TT-YJ61-14  L=14.5 (Kgf.cm)
Rated torque
2.63 4.82 6.86 9.69 12.7 13.7 18.0 23.2 36.8 49.0 68.8
TT-YJ61-16  L=16.5 (Kgf.cm)
Rated torque
3.68 6.74 9.61 13.6 17.8 19.2 25.2 32.5 51.5 68.6 80.0
TT-YJ61-20  L=20.5 (Kgf.cm)
Rated torque
4.73 8.67 12.4 17.4 22.9 24.7 32.4 41.8 66.2 80.0 80.0
TT-YJ61-25  L=25.5 (Kgf.cm)
Rated torque
5.78 10.6 15.1 21.3 28.0 30.2 39.6 51.1 80.0 80.0 80.0
TT-YJ61-30  L=30.5 (Kgf.cm)
Rated torque
7.36 13.5 19.2 27.1 35.7 38.4 50.4 65.1 80.0 80.0 80.0
TT-YJ61-35  L=35.5 (Kgf.cm)
Rated torque
9.20 16.9 24.0 33.9 44.6 48.0 63.0 80.0 80.0 80.0 80.0
TT-YJ61-40  L=40 (Kgf.cm)
Rated torque
10.5 19.3 27.4 38.7 50.9 54.9 72.0 80.0 80.0 80.0 80.0
TT-YJ61-50  L=50 (Kgf.cm)
Rated torque
13.6 25.1 35.7 50.3 66.2 71.3 80.0 80.0 80.0 80.0 80.0
* Note: It’s only typical technical data, special requirement can be customized.
Packing  Details CTN size:55X35XH18CM  24pcs/CTN       N.W. 16Kgs


Mechanical Dimensions
TT-YJ61图纸
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
