LS-PG06
Leison Motor
850110
Electrical Specifications
Gearbox Data
Number of stages | 2 stages reduction | 3 stages reduction | 4 stages reduction |
Reduction ratio | 26 | 136 | 700 |
Gearbox length “L” mm | 7 | 9.5 | 12 |
Rated torque | 0.015kg•cm max. | ||
Max. momentary tolerance torque | 0.03kgf•cm max. |
Motor with Gearbox
Motor name | Rated Volt. VDC | No load | Load torque | Stall torque | |||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
mA | r/min | mA | r/min | gf • cm | W | g•cm | mA | ||
LS-PG06-C-26 | 3 | 60 | 1250 | 25 | 0.2 | ||||
LS-PG06-D-136 | 3 | 60 | 240 | 120 | 0.2 | ||||
LS-PG06-D-700 | 3 | 60 | 47 | 500 | 0.2 | ||||
*Note:It's only typical technical data,special requirement can be customzied. |
Mec

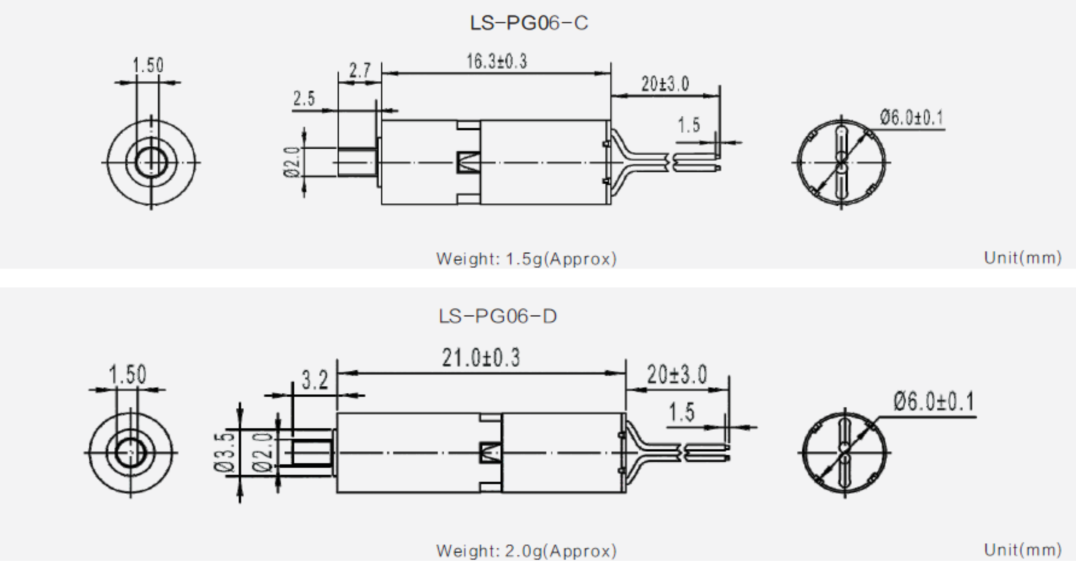

Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
