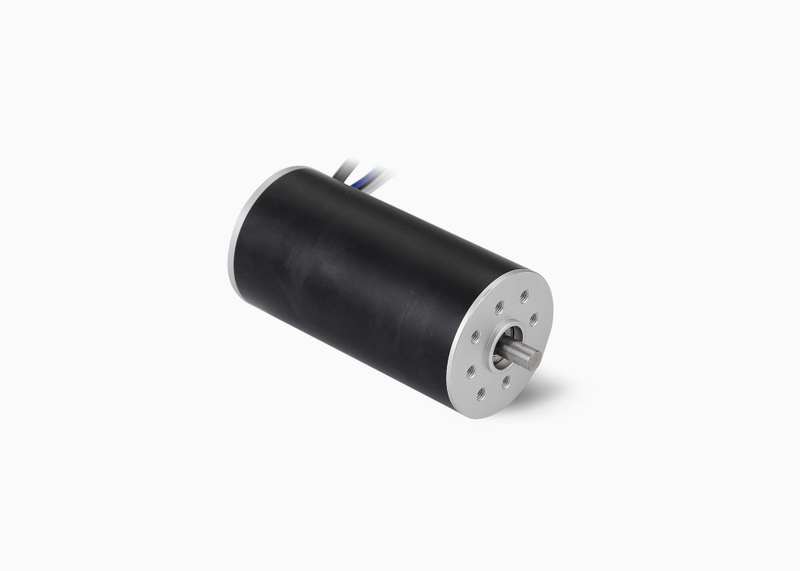

LS-3670RB Coreless Brushless DC Motor

Speed(RPM): 6710-15600 rpm (rated)
Continuous Current(A): 1.13-3.2 A
Place of Origin: China
Torque: 35-54.6 mNm (rated)
Construction: Permanent Magnet
Commutation: Brushless
Protect Feature: Waterproof
Material: permanent Magnets
Weight: 314g
Size: 36mm*70mm
Availability:
Quantity:
  • LS-3670RB

  • Leison Motor

Electrical Specifications


不用缩小的手指LS-3670RB Corless Brushless DC Motor.pdf


Motor Data


LS-3670RB Corless Brushless DC Motor

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized
