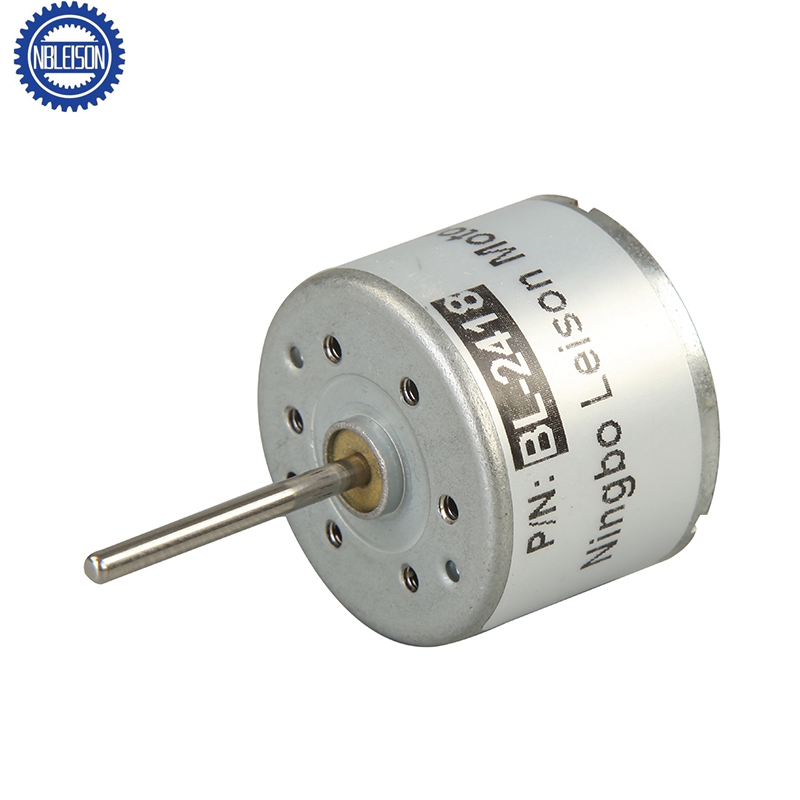

BL2418
Leison Motor
Electrical Specifications
General Specifications
| Connection Mode A | |
| Clockwise Rotation/ Counter Clockwise Rotation | |
| FG Signal | |
| PWM Control | |
| Locked Rotor Protection | |
| Power | 3W (lnternal Drive) |
| Life Expectancy | ~3000H (Oil Bearing) |
Motor Data
| Motor model | Rated voltage | No-load | Rated | Stall | |||||
| Speed | Current | Speed | Torque | Current | Power | Torque | Current | ||
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A | |
| BL2418-1262 | 12.0 | 6200 | 60 | 5100 | 20 | 180 | 1.05 | 110 | 0.7 |
| BL-2418-12123 | 12.0 | 12300 | 120 | 9594 | 28.6 | 413 | 2.81 | 130 | 1.45 |
| BL2418-2487 | 24.0 | 8700 | 50 | 7500 | 20 | 130 | 1.54 | 145 | 0.7 |
| * Note: It’s only typical technical data, special requirement can be customized. | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
