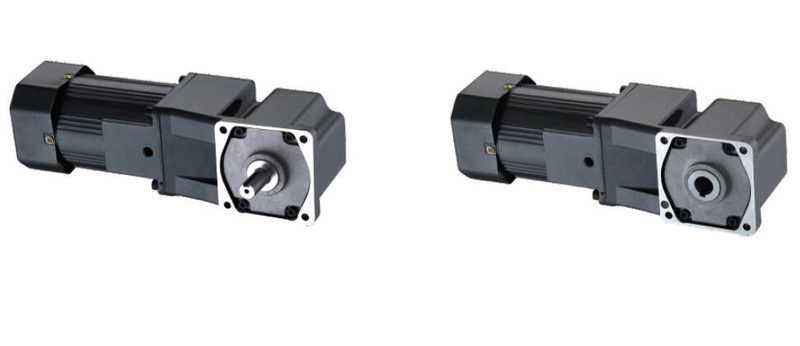

40W Right Angle Ac Gear Motor

Features:
1. Motor type: Right Angle Ac Gear Motor
2 .Gearbox: 90*90mm Spur gearbox
3. Voltage: 110V, 220V, 230V, 380V AC
4. Speed: 7.5RPM-600RPM
5. Torque: 7kg.cm-200kg.cm
6. Shaft dia: 17mm or 15mm
7. Direction: CW /CCW
8. Typical application: Vending machine, Robot, Medical device, Sliding gate, Packing machine, Labeling machine, Winding machine, Juice agitator, Washing machine, etc.
9. Customized service: Motor's performance parameter, Shaft type, Wires and connectors, Encoders
Availability:
Quantity:
  • 5IK40

  • Leison Motor

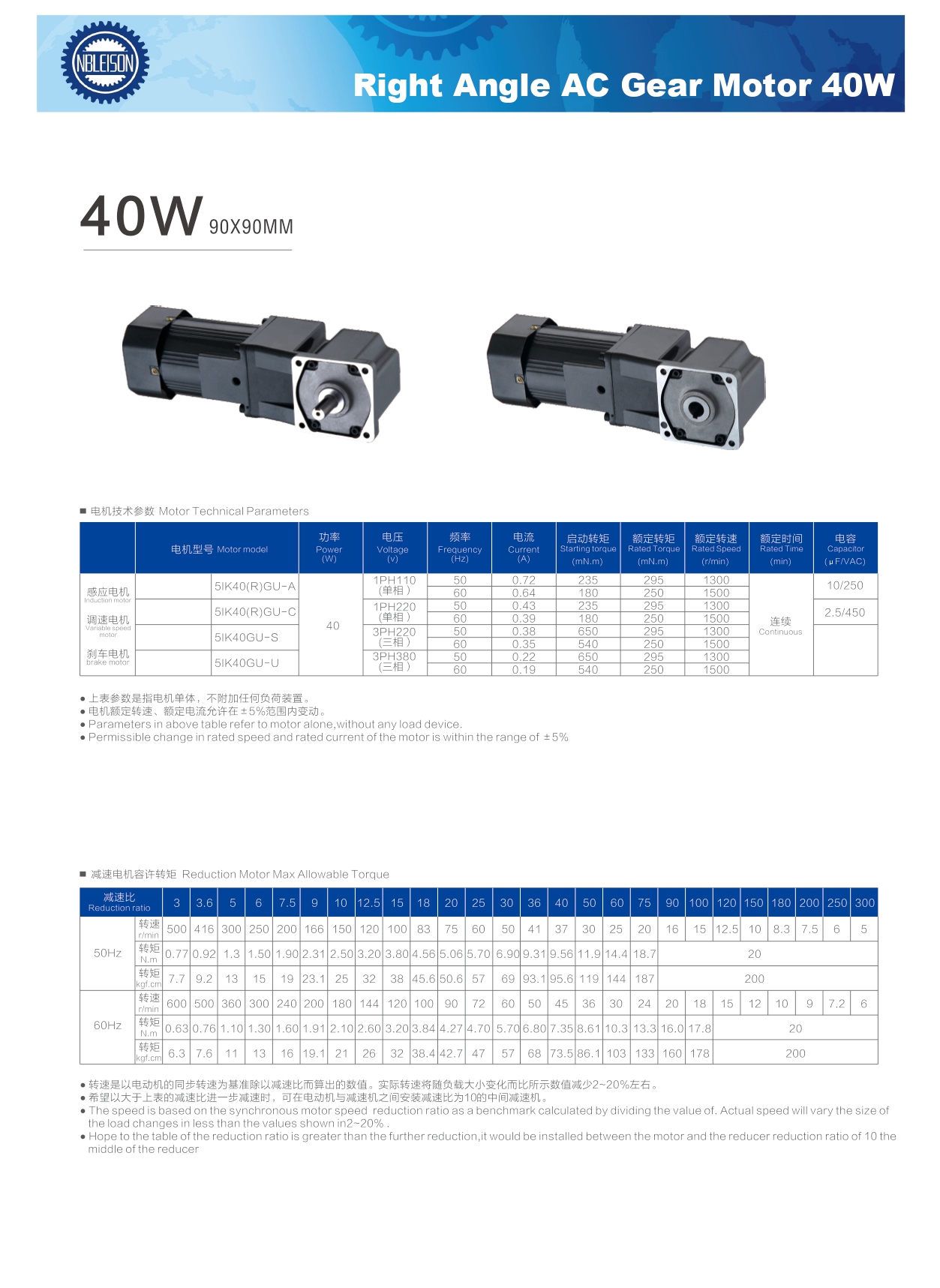

Electrical Specifications

不用缩小的手指40W.pdf

40W_page-000140W_page-0002

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
