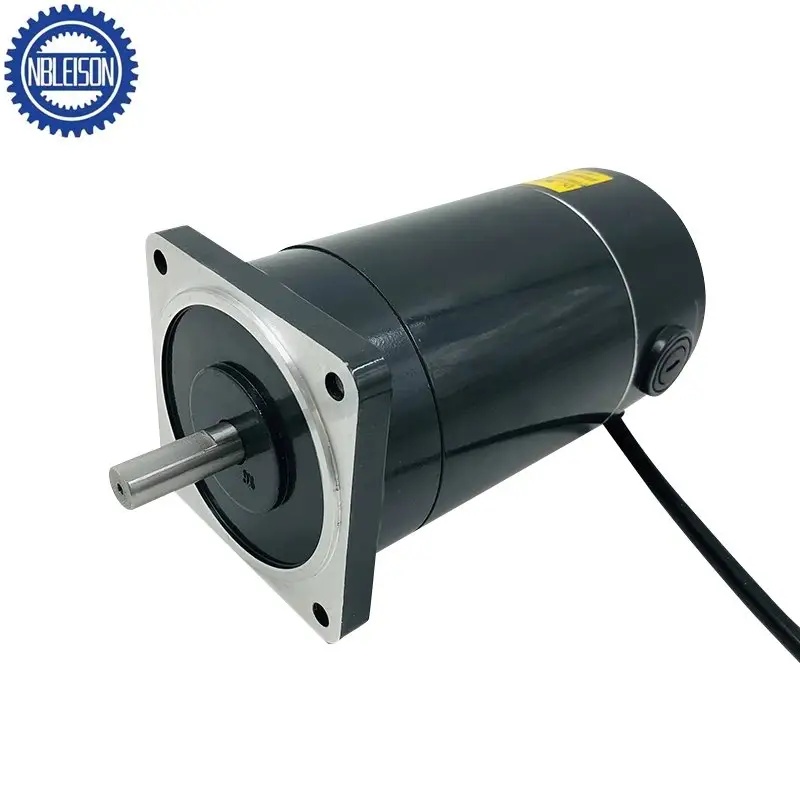

114ZYT
Leison Motor
Electrical Specifications
Motor Data
| Model No. | Voltage (V) | Output Power (W) | No-load Parameters | Load Parameters | Brush Life (H) | Motor Weight（KG） | |||
| Speed (r/min) | Current (A) | Speed (r/min) | Current (A) | Torque (N.m) | |||||
| ZYT114FA-24-1800 | 24 | 500 | 1800 | 1.5Max | 1500 | 40 | 3.7 | 2000 | 6.82 |
| ZY114FA-24-3000 | 24 | 700 | 3000 | 1.85Max | 2500 | 60 | 3.7 | 2000 | 6.82 |
| ZY114FA-48-1800 | 48 | 450 | 1800 | 0.9Max | 1500 | 14 | 3.86 | 2000 | 6.82 |
| ZY114FA-110-1800 | 110 | 600 | 1800 | 0.45Max | 1500 | 10 | 3.5 | 2000 | 6.82 |
| ZY114FA-12-1800 | 12 | 400 | 1800 | 1.80Max | 1500 | 53 | 2.4 | 2000 | 8.2 |
| ZY114FA-220-3000 | 220 | 700 | 3000 | 0.25Max | 2500 | 4.5 | 3.8 | 2100 | 8.2 |
| ZY114FB-24-1800 | 24 | 500 | 1500 | 2.1Max | 1500 | 30 | 3.2 | 2000 | 8.2 |
| ZY114FB-12-1800 | 12 | 500 | 1500 | 4.2Max | 2500 | 60 | 3.2 | 2000 | 8.2 |
| *Note: It's only typical technical data,special requirement can be customzied. | |||||||||
Mechanical Dimensions
* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
