RS-775 Dc Micro Motor
HOME » Products » Brush Dc Motors » Dc Micro Motors » RS-775 Dc Micro Motor
Share to:

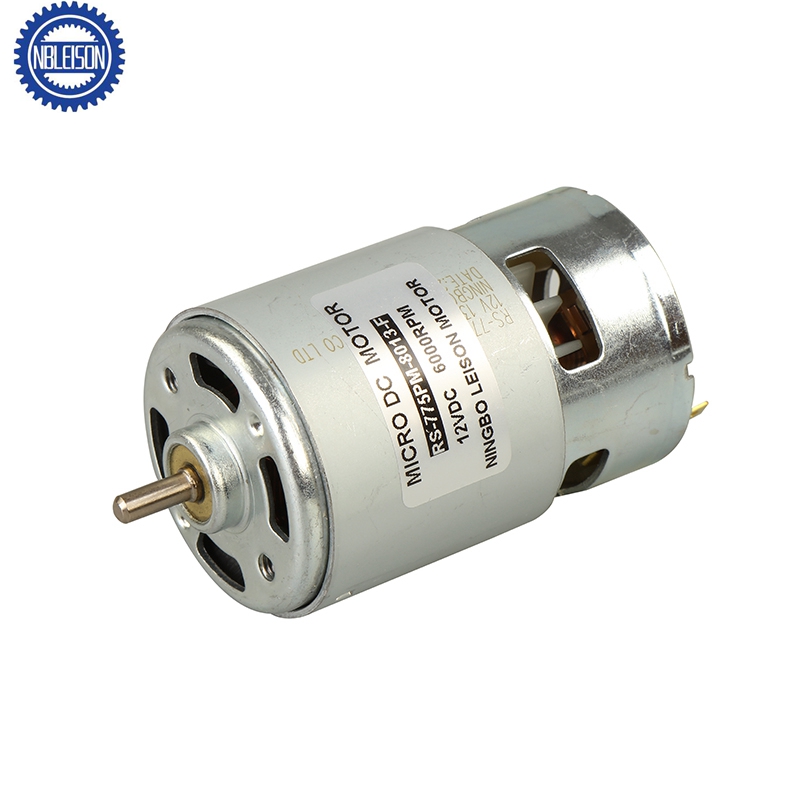

RS-775 Dc Micro Motor

Features:
1. Motor type: Brushed DC motor
2. Voltage: 6V-38VDC
3. Speed: 4000RPM-28000RPM
4. Torque: 300g.cm-1300g.cm
5. Shaft dia: 5mm
6. Direction: CW/ CCW
7. Bearing: oil bearing or ball bearing for choose
8. Typical application: power tools, garden tools, electric saw
9. Customized service: parameter, shaft type, wires and connectors

Quantity:
  • RS-775
  • Leison Motor

Electrical Specifications


LS-RS-775.pdf


Motor Data

Model Voltage No Load At Maximum Efficiency
Nominal Speed Current Speed Current Torque Output Torque Current
r/min A r/min A g-cm w g-cm A
RS-775SH-8013 DC 12V 22000 3 18760 15.75 1028 198 8540 110.3
RS-775SH-5520 DC 24V 21000 1.7 18410 10.72 962 181.9 7200 68.1
RS-775SH-9008 DC 7.2V 14600 3.2 12310 20.05 816 103.2 5190 108.7
RS-775SH-9009 DC 12V 21000 2.8 18050 21.07 1046 193.9 8225 143.7
RS-775123000 DC 12V 3000 0.22 2200 1.0  350 7.7 1400 3.5
RS-775124500 DC 12V 4500 0.45 3300 2.0  500 16.5 2000 6.5
RS-775126000 DC 12V 6000 0.9 4500 4.0  750 34 3000 13
RS-775243000 DC 24V 3000 0.11 2200 0.5  350 7,7 1400 1.8
RS-775244500 DC 24V 4500 0.23 3300 1.0  500 16,5 2000 3.3
RS-775246000 DC 24V 6000 0.45 4500 2.0  750 34 3000 7
*Note:lt's only typical technical data for reference, special requirement can be customized.


Mechanical Dimensions

RS-775

* Note: The motor parts such as shaft size, cables & connectors can be customized.
