14HM
Leison Motor
Electrical Specifications
Motor Data
| Model | Step Angle (°) | Motor Length (mm) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance(mH) | Holding Torque (N.cmMin) | Detent Torque (N.cmMax) | Rotor Inertia (g.cm2) | Lead Wire (No.) | Motor Weight (g) |
| 14HM2401 | 0.9 | 28 | 0.8 | 4.5 | 4.2 | 9 | 0.3 | 12 | 4 | 130 |
| 14HM2402 | 0.9 | 28 | 0.55 | 10 | 9.5 | 9 | 0.3 | 12 | 4 | 130 |
| 14HM2403 | 0.9 | 28 | 0.36 | 22 | 20 | 9 | 0.3 | 12 | 4 | 130 |
| 14HM2630 | 0.9 | 28 | 0.4 | 30 | 12 | 8 | 0.3 | 12 | 6 | 130 |
| 14HM3401 | 0.9 | 34 | 0.8 | 6 | 10 | 14 | 0.6 | 18 | 4 | 190 |
| 14HM3402 | 0.9 | 34 | 0.55 | 12 | 19 | 14 | 0.6 | 18 | 4 | 190 |
| 14HM3403 | 0.9 | 34 | 0.36 | 28 | 42 | 14 | 0.6 | 18 | 4 | 190 |
| 14HM3630 | 0.9 | 34 | 0.4 | 30 | 18 | 10 | 0.6 | 18 | 6 | 190 |
| Note: It's only typical technical data,special requirement can be customized. | ||||||||||

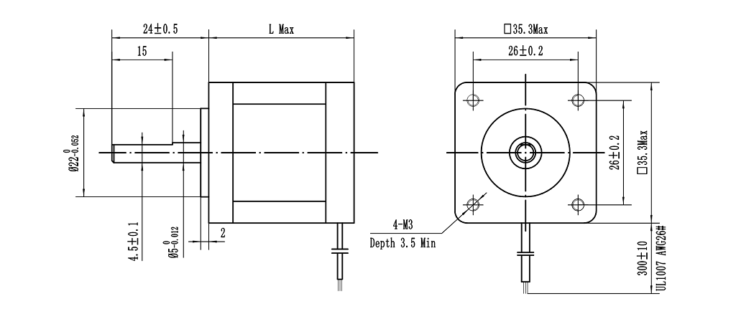

Mechanical Dimensions
* Note: The motor parts such as shaft size, cables & connectors can be customized.
