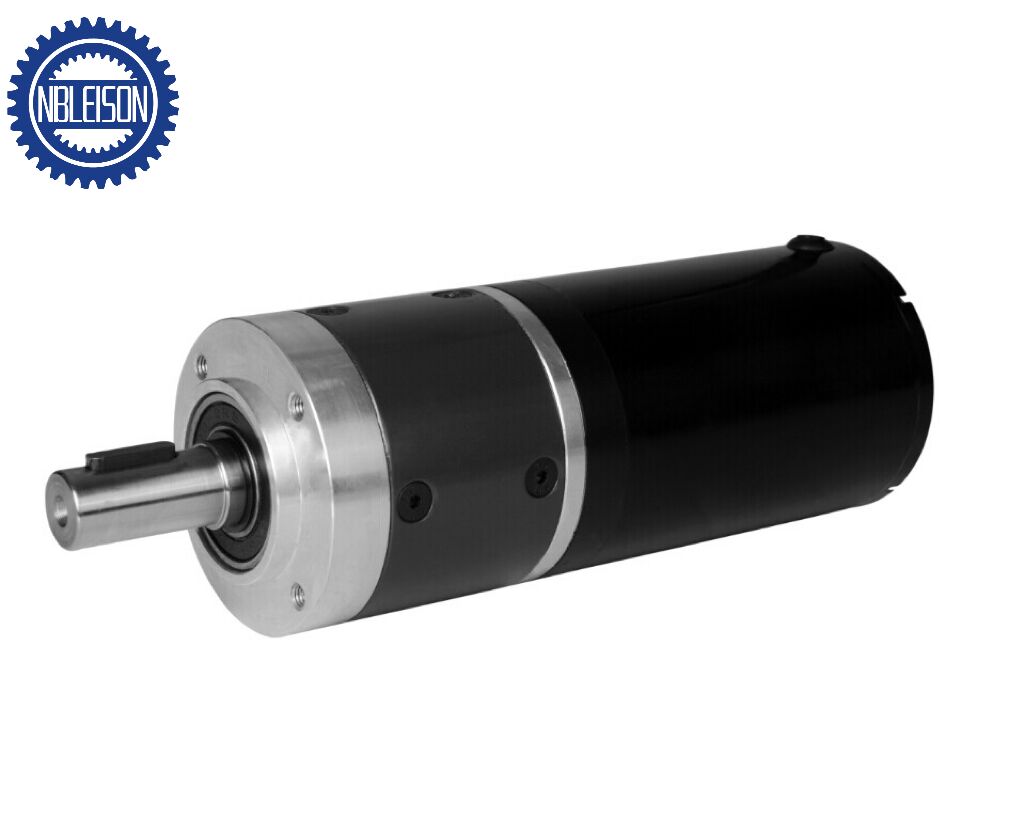

LS-Z72BLDPN DC Planetary Gear Motor (Brushless Type)

1. Motor type: brushless DC motor
2 .Gearbox: planetary gearbox
3. Voltage: 24VDC
4. Speed: 7.6-822rpm
5. Torque: 1.25-64.7N.m
6. Shaft dia: 16mm
7. Direction: CW/ CCW
8. Gear material: steel/powdered/POM
9. Housing material: steel
10. Typical application: electric curtain, robotic lawn mower, robotic arm
11. Customized service: parameter, shaft type, wires and connectors, encoders
Availability:
Quantity:
Inquire Add to Basket

  • LS-Z62BLDPN

  • LEISON MOTOR

Electrical Specifications




Motor Data

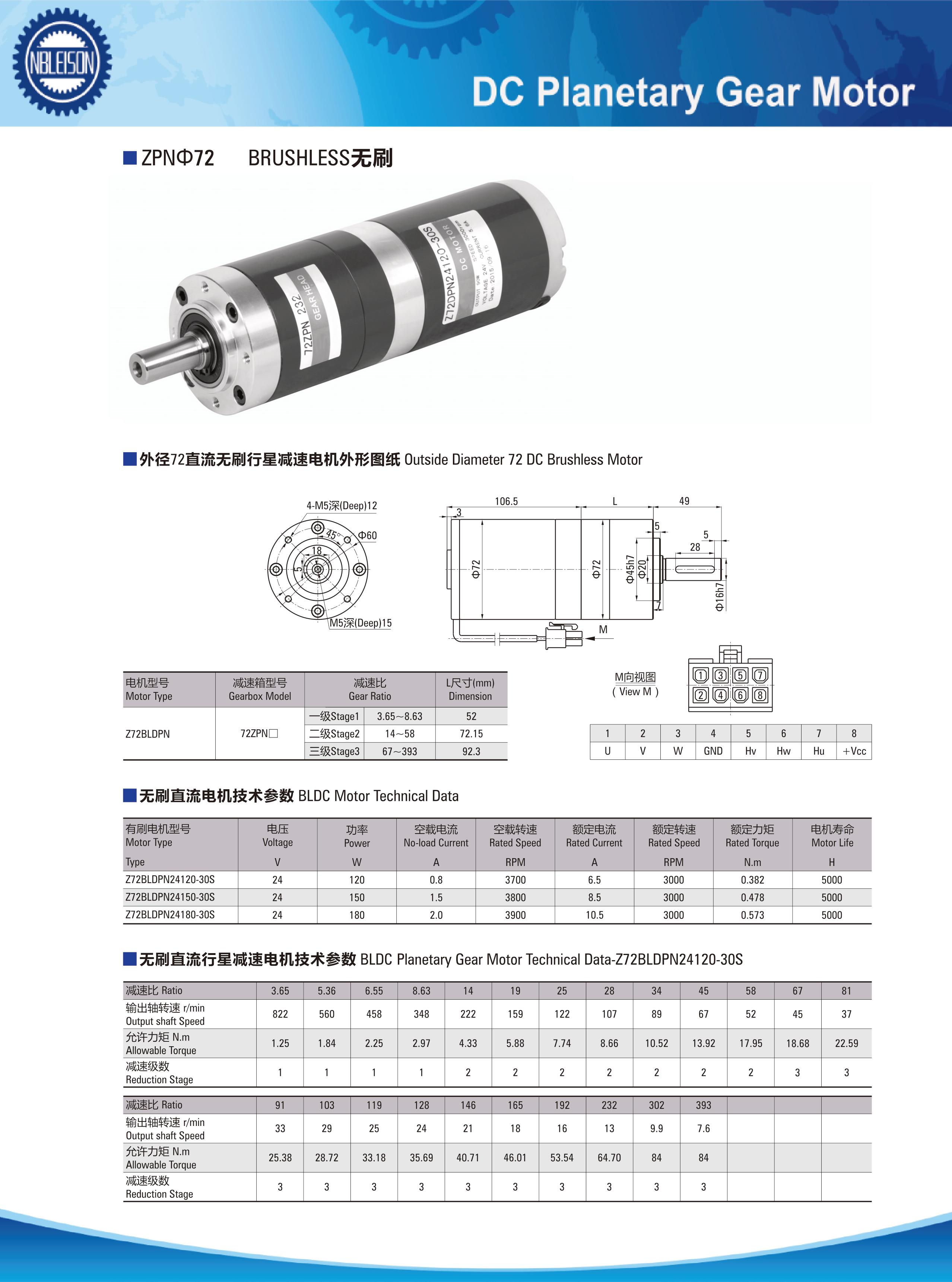

PG72Z72

* Note: The motor parts such as shaft size, encoders, cables & connectors can be customized.
